Technical Specifications
| Parameter | Specification |
|---|---|
| Model | YCB301-C100 |

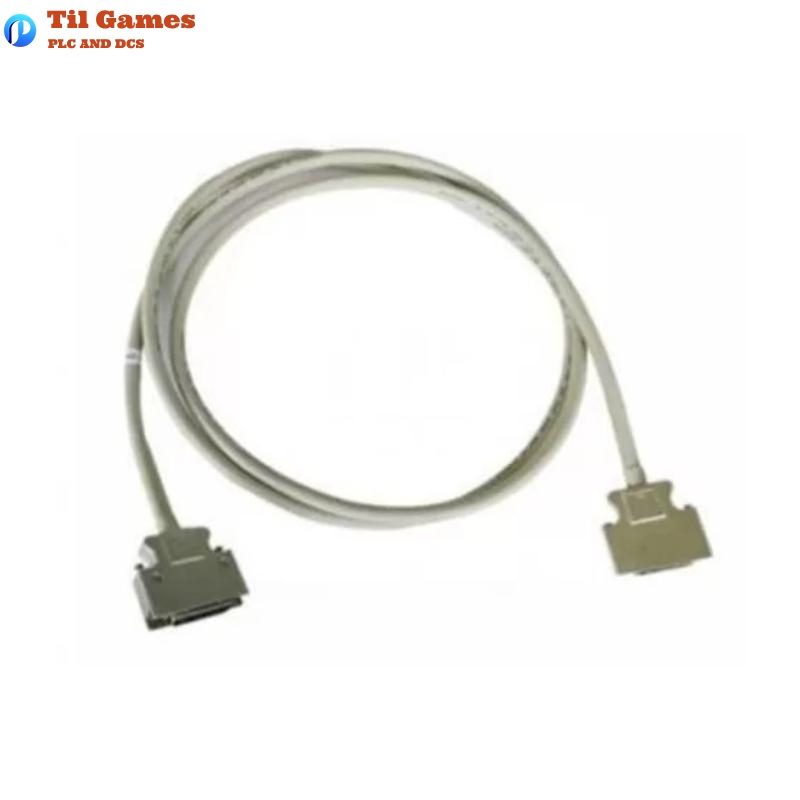

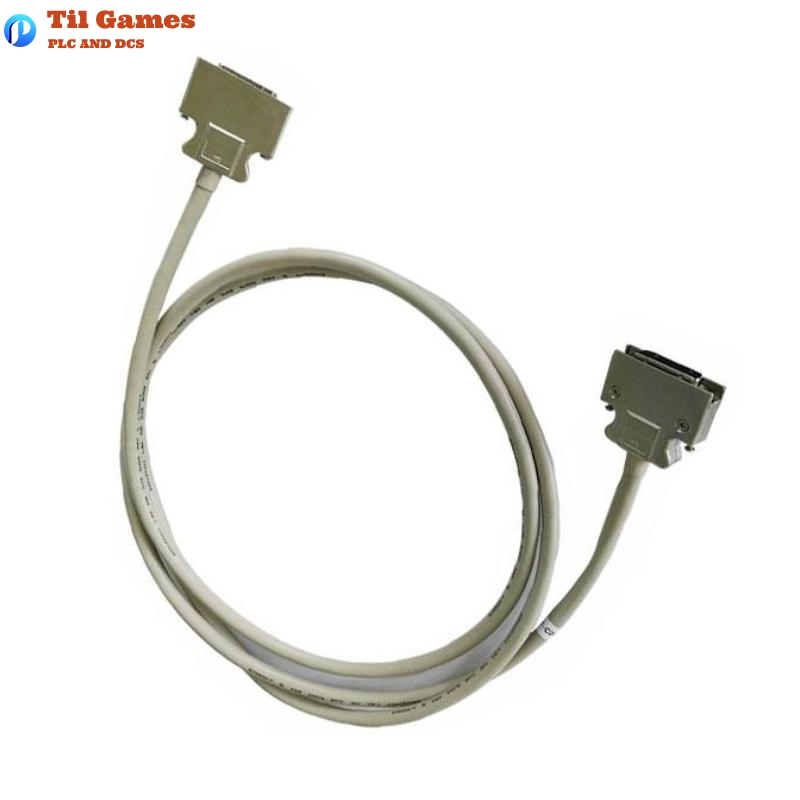

| Description | ESB Bus Cable with 36-pin to 36-pin connectors |
| Application | Used in CENTUM VP for ESB bus connection |
| Cable Length | 1 meter |

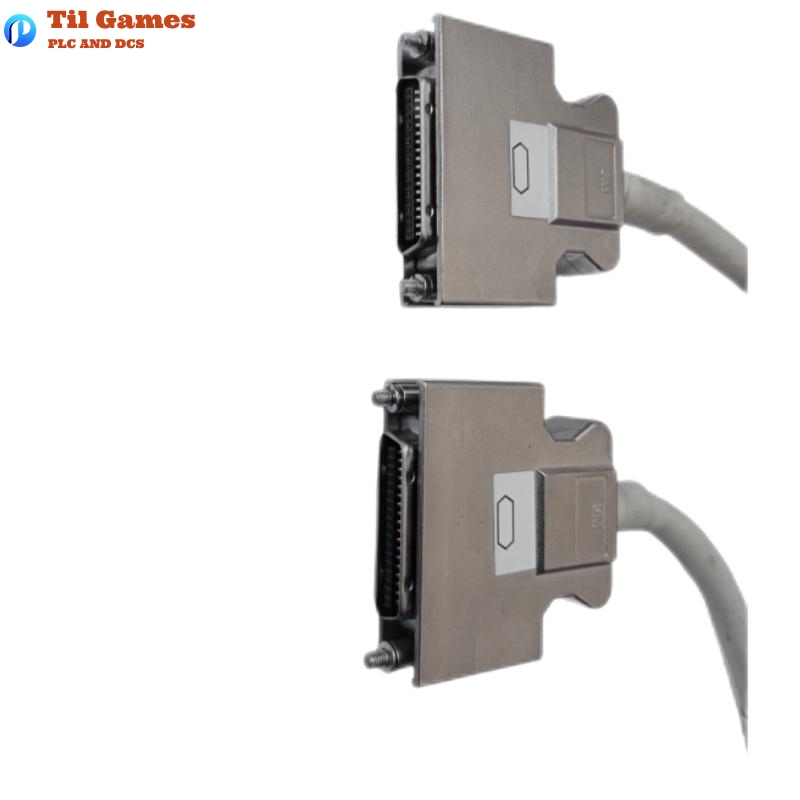

| Connector Type | 36-pin to 36-pin |
| Minimum Bending Radius | 80 mm |
| Nominal Cable Length Tolerance | +5%, -0% (≤3000 mm) |
| External Cable Width | Approx. 43.5 mm |
| External Cable Height | Approx. 13.5 mm |
| Dimensions | 43.5 mm (W) × 13.5 mm (H) × 1000 mm (L) |
| Shipping Weight | 3 kg |
| Product Category | Network Cable (ESB Bus) |
| Release | Release 6 |
| Manufacturer | Yokogawa Electric Corporation |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the function of the YCB301-C100 cable?
A1: The YCB301-C100 cable is designed for ESB bus communication in Yokogawa CENTUM VP systems, enabling reliable data transmission between system modules.
Q2: What type of connectors does the cable use?
A2: It features 36-pin to 36-pin connectors, ensuring compatibility with designated ESB interface modules.
Q3: Is this cable suitable for flexible installation environments?
A3: Yes. With a minimum bending radius of 80 mm, it accommodates standard installation requirements in control cabinets or structured wiring channels.
Q4: What tolerance does the cable length comply with?
A4: For lengths up to 3000 mm, the nominal tolerance is +5%, -0%, ensuring precise installation planning.
Q5: Can this cable be used in high-vibration environments?
A5: The cable is engineered for industrial settings but should be secured and routed appropriately to avoid excessive strain or vibration.
Q6: Is the YCB301-C100 compatible with other CENTUM VP modules?
A6: Yes, it is fully compatible with Yokogawa’s CENTUM VP modules designed for ESB bus interface.
Q7: What is the significance of the product suffix -C100?

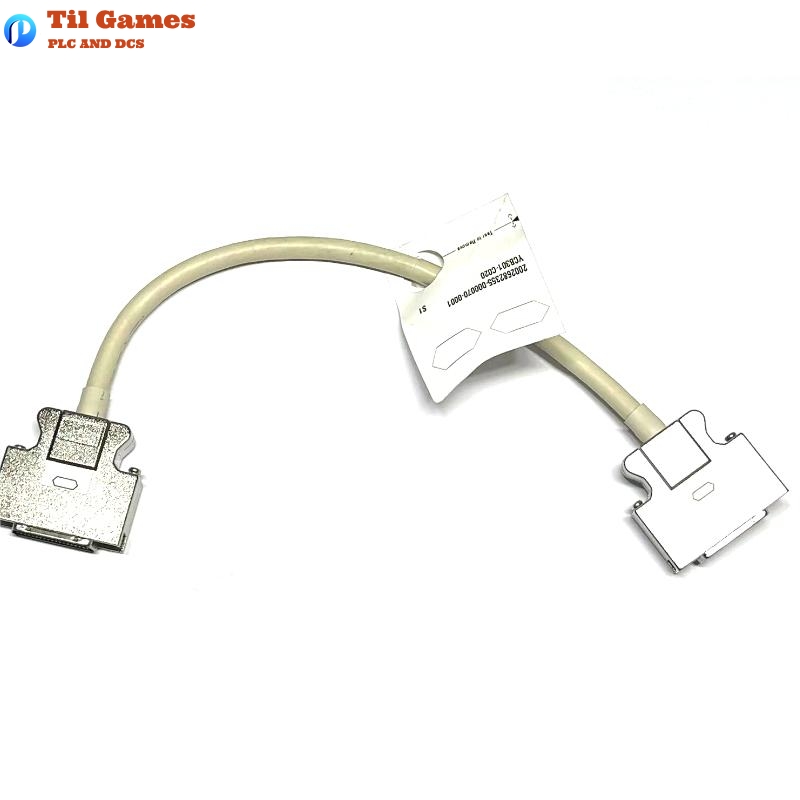

A7: The suffix -C100 indicates that the cable length is 1 meter. Other suffixes denote different lengths (e.g., -C020 for 20 cm, -C400 for 4 m).
Q8: What is the shipping weight of the YCB301-C100 cable?
A8: The shipping weight is approximately 3 kg, including packaging materials.
