Technical Specifications
| Parameter | Specification |
|---|---|

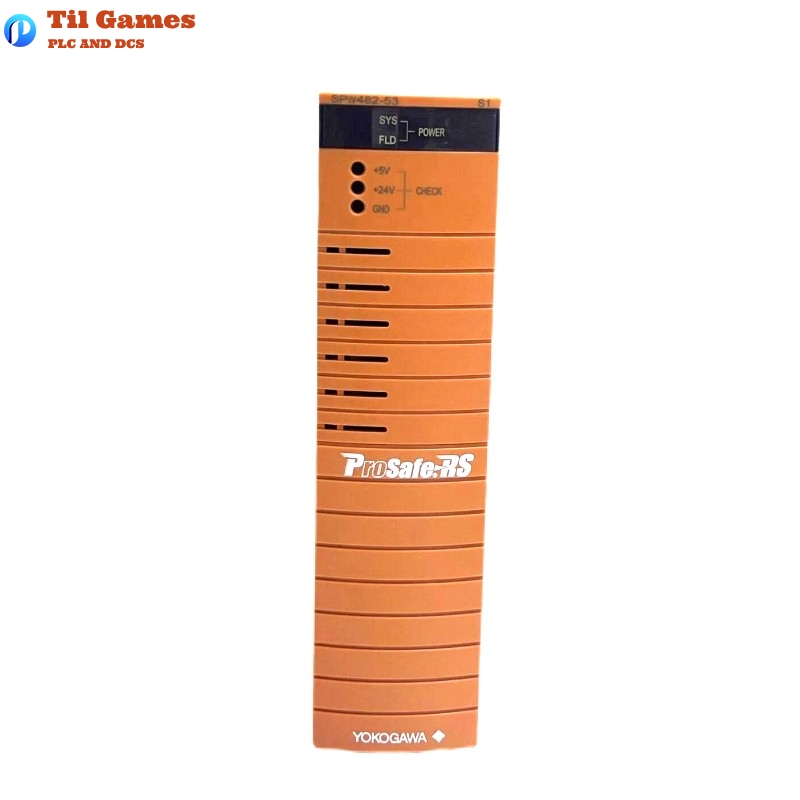

| Model Number | SPW482-53 |
| Power Supply Type | AC Power Supply Module |
| Input Voltage Range | 220–240 V AC |
| Frequency | 50/60 Hz |
| Output Voltage | Internal system-compatible voltage |
| Output Current Capacity | Sufficient to support all installed modules |
| Redundancy Support | Yes – dual redundant configuration capability |
| Cooling Method | Natural convection (no internal fan) |
| Mounting | Rack-mountable |
| Installation Environment | Indoors, inside a metal cabinet (as per standards) |
| Operating Temperature | –20 to 50 °C |
| Storage Temperature | –40 to 70 °C |
| Relative Humidity | 5% to 95% RH, non-condensing |
| Dimensions (W x H x D) | 44.45 x 264.2 x 186 mm |
| Weight | 1.4 kg |
| Compatible Systems | ProSafe-RS Systems (e.g., SSC10S, SSC10D, SNB10D) |
| Safety Standards | IEC 61010, EN 61010, CSA (refer to GS for details) |
| EMC Compliance | EN 55011, EN 61000 series |
FAQ
Frequently Asked Questions (FAQ)
Q1: What systems is the SPW482-53 module compatible with?
A1: It is compatible with Yokogawa ProSafe-RS safety control units and safety node units, including models such as SSC10S, SSC10D, and SNB10D.
Q2: Can the SPW482-53 module be used in a redundant configuration?
A2: Yes, it supports dual-redundant configurations to ensure high system availability and continuous operation.
Q3: What is the input voltage range for the SPW482-53 module?
A3: The module accepts an input voltage of 220–240 V AC at 50/60 Hz.
Q4: Is additional cooling equipment required for this module?
A4: No, the module uses natural convection cooling and does not require fans for operation.
Q5: What safety standards does the SPW482-53 comply with?
A5: It complies with IEC 61010, EN 61010, and CSA safety standards when installed in a lockable metal cabinet.
Q6: Can the SPW482-53 operate in harsh temperature environments?
A6: It supports an ambient operating temperature range from –20 °C to 50 °C and a storage range from –40 °C to 70 °C.
Q7: What is the size and weight of the SPW482-53 module?
A7: It measures 44.45 x 264.2 x 186 mm and weighs 1.4 kg.
Q8: Are there any specific installation requirements for the SPW482-53?
A8: Yes, it must be installed inside a lockable metal cabinet, grounded properly, and used with dedicated circuit breakers as per the safety and EMC guidelines.
