Technical Specifications
| Parameter | Specification |
|---|---|

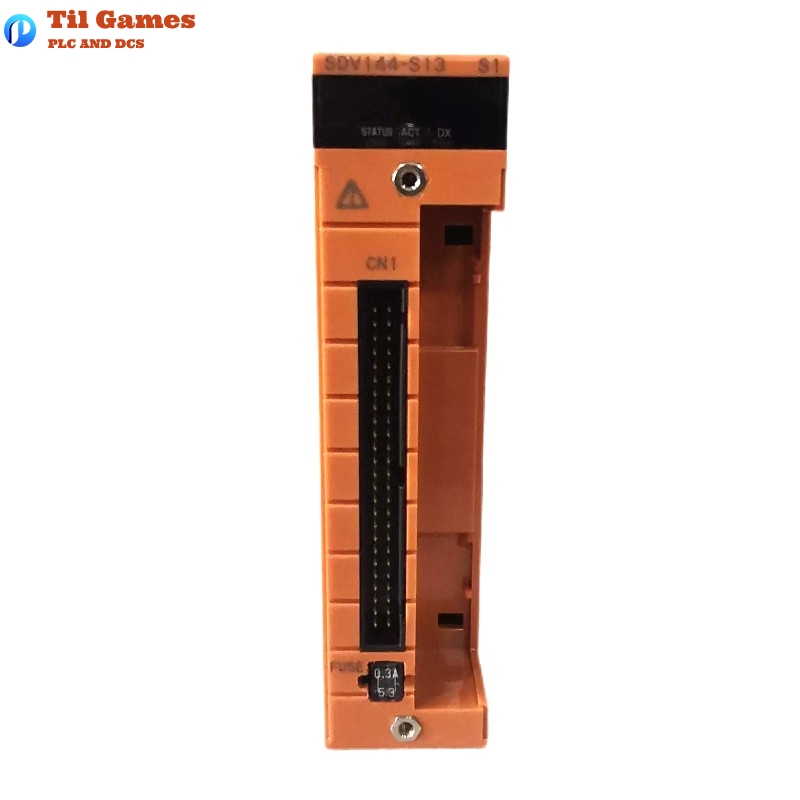

| Model Number | SDV144-S13 S1 |
| Input Channels | 16-channel, module isolation |
| Input Signal Type | No-voltage contact |
| ON Resistance | 1 kΩ maximum |
| OFF Resistance | 100 kΩ minimum |
| Input Current | 6 mA ± 20 % (with 24 V DC external power, 0 Ω input) |
| Contact Rating | 24 V DC ±5 %, 10 mA or greater |
| External Power Supply | 24 V DC ±5 % (current capacity: 200 mA) |
| Max. Permissible Input Voltage | 30 V DC instantaneous maximum |
| Input Response Time | 40 ms maximum |
| Withstand Voltage | 2 kV AC for 1 min (between input signal and system) |
| Current Consumption (5 V DC) | 290 mA maximum |
| Current Consumption (24 V DC) | 140 mA maximum |
| External Connections | Pressure clamp terminal, MIL cable, or AKB331 dedicated signal cable |
| Diagnostic Support | Compatible with SCB100 (open circuit) and SCB110 (short circuit) wiring check |
| Dimensions (W x D x H) | 130 x 32.8 x 107.5 mm |
| Weight | 0.36 kg (with pressure clamp or MIL cable), 0.41 kg (with signal cable adapter) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What kind of input signals does the SDV144-S13 S1 module accept?
A1: It accepts no-voltage contact signals, with ON-state resistance up to 1 kΩ and OFF-state resistance of at least 100 kΩ.
Q2: What is the input voltage and current specification for this module?
A2: The module operates with 24 V DC ±5 % and draws an input current of 6 mA ±20 %.
Q3: How many digital input channels are available on the SDV144-S13 S1?
A3: The module offers 16 input channels with electrical isolation at the module level.
Q4: What is the maximum allowable instantaneous voltage on input lines?
A4: The module can tolerate up to 30 V DC as the instantaneous maximum permissible input voltage.
Q5: Is the SDV144-S13 S1 suitable for use in redundant systems?
A5: Yes, this module can be configured for dual-redundant applications for enhanced system reliability.
Q6: Can this module detect wiring issues like open or short circuits?
A6: Yes, when used with optional accessories SCB100 and SCB110, it supports detection of open and short circuits.
Q7: What is the input response time of this module?
A7: The maximum input response time is 40 milliseconds, ensuring timely detection of input status changes.
Q8: What are the external wiring options for this module?
A8: It supports connections via pressure clamp terminal blocks, MIL cable, or dedicated signal cable (AKB331).
