Technical Specifications Table
| Parameter | Specification |
|---|---|

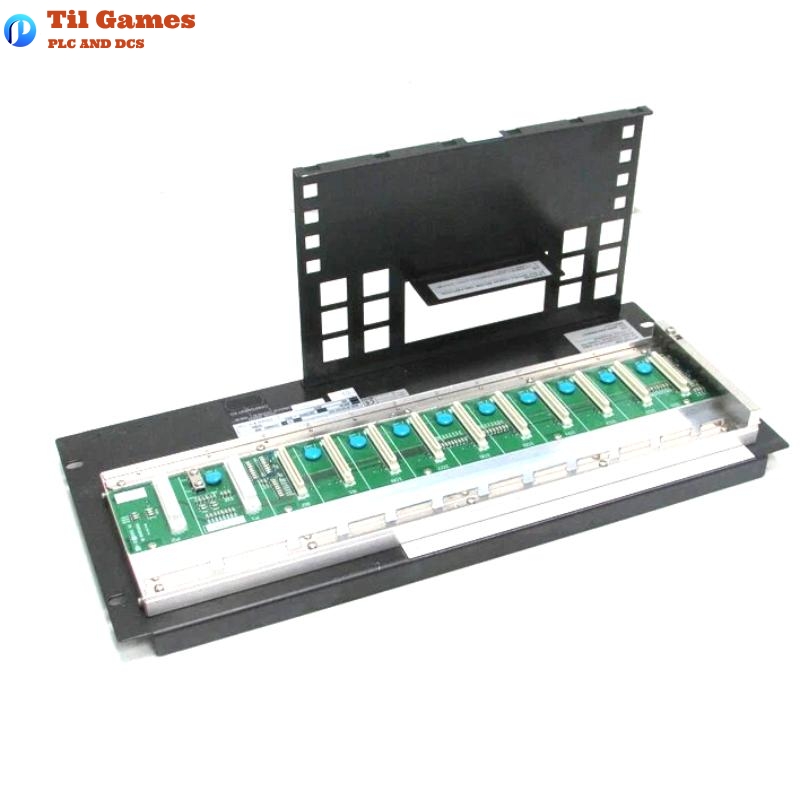

| Model | ANB10D-420 S2 ESB Bus Node Units |
| Dimensions | 482.6 × 221.5 × 205 mm |
| Weight | 10 kg (including 8 I/O Modules) |
| Power Supply | 100-120 V AC, 220-240 V AC, 24 V DC |
| Electric Power Consumption | 100-120 V AC: 200 VA, 120 W 220-240 V AC: 230 VA, 120 W 24 V DC: 5.5 A |
| Mounting | 19-inch Rack Mounting |
| Environmental Conditions | ISA Standard G3, Temperature (-20 ºC to 70 ºC) Option |
| I/O Module Slots | Max. 8 Modules |
| Bus Interface | ESB Bus Coupler Module (EC401 or EC402) |
| Connector Units | /CU2N or /CU2T (Optional) |
FAQ
FAQ
-
Q1: What is the weight of the ANB10D-420 S2 ESB Bus Node Unit?
A1: The weight of the ANB10D-420 S2 ESB Bus Node Unit is approximately 10 kg, including 8 I/O modules. -
Q2: What is the size of the ANB10D-420 S2 ESB Bus Node Unit?
A2: The unit’s dimensions are 482.6 × 221.5 × 205 mm. -
Q3: What type of power supply is supported by the ANB10D-420?
A3: The ANB10D-420 supports three types of power supply: 100-120 V AC, 220-240 V AC, and 24 V DC. -
Q4: How many I/O modules can be mounted on the ANB10D-420?
A4: Up to 8 I/O modules can be mounted on the ANB10D-420. -
Q5: What is the power consumption of the ANB10D-420 at 100-120 V AC?
A5: The power consumption is 200 VA and 120 W at 100-120 V AC. -
Q6: How should the ANB10D-420 be mounted?
A6: The ANB10D-420 should be mounted in a 19-inch rack, using M5 screws. -
Q7: Is the ANB10D-420 suitable for use in explosive environments?
A7: Yes, the ANB10D-420 is available with explosion protection options, in accordance with the ISA Standard G3, and it can be configured with a temperature option ranging from -20 ºC to 70 ºC. -
Q8: What are the available options for the ESB Bus Node Units’ connector units?
A8: The connector units available for the ESB Bus Node Units are /CU2N or /CU2T, which are optional for specific installations.
