Technical Specifications
| Parameter | Description |
|---|---|

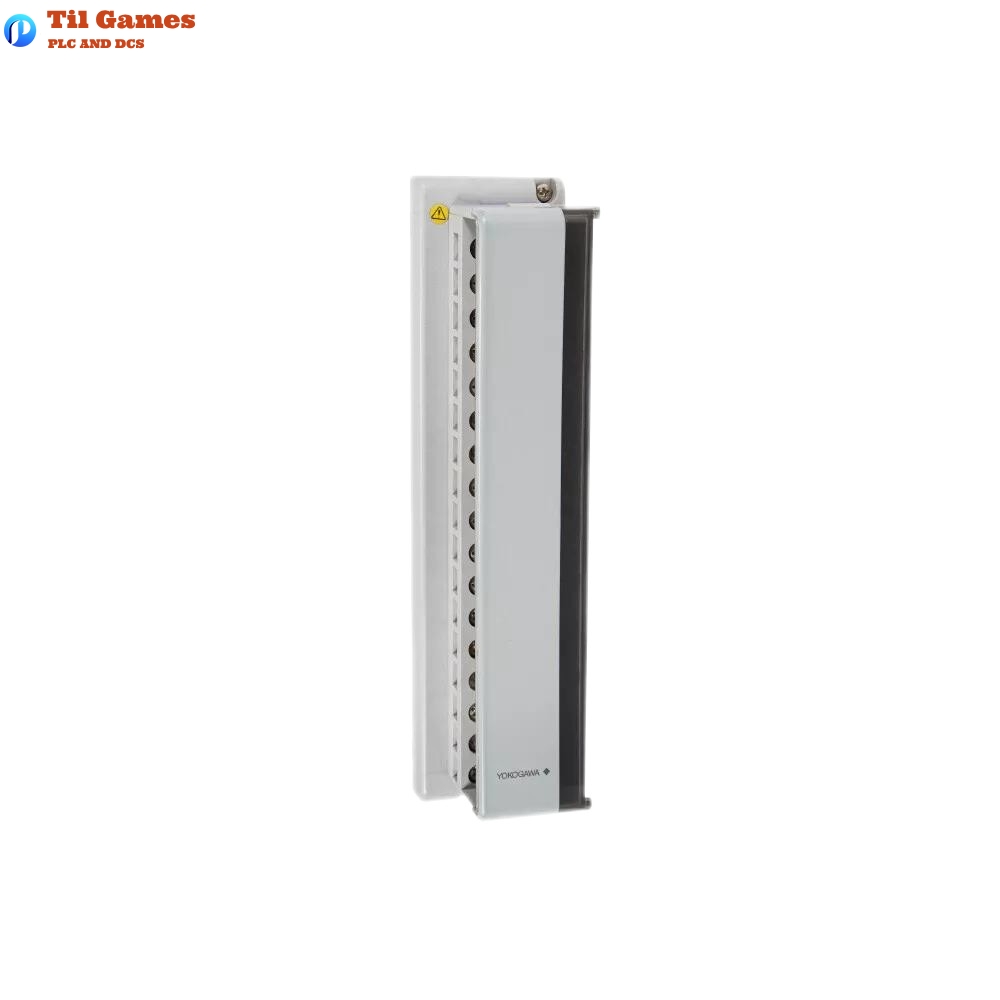

| Model | AMM22T |
| Module Type | Voltage Input Multiplexer Module |
| Number of Input Channels | 16 channels |
| Input Signal Type | Voltage |
| Input Signal Range | ±10 V DC |
| Input Type | Differential |
| Isolation | Channel-to-channel and channel-to-ground isolated |
| Resolution | Typically 16-bit |
| Conversion Method | Multiplexed |
| Connection Type | Terminal block |
| Mounting Method | Installed on I/O Nest (e.g., AMN11) |
| Application | Remote I/O in CENTUM CS, CS 3000, and VP systems |
| Dimensions (W×H×D) | 45 × 97 × 103 mm |
| Weight | 0.3 kg |
| Compatible Systems | CENTUM CS, CS 1000, CS 3000, CENTUM VP |
| Compliance Standard | Type N (Old JIS) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What kind of signal does the AMM22T module accept?
A1: The AMM22T accepts DC voltage input signals within a ±10 V range.
Q2: How many input channels does the AMM22T module have?
A2: It provides 16 differential voltage input channels.
Q3: Is each input channel isolated?
A3: Yes, the module provides isolation between input channels and also between channels and ground.
Q4: Which systems are compatible with the AMM22T?
A4: It is compatible with Yokogawa’s CENTUM CS, CS 1000, CS 3000, and CENTUM VP systems.
Q5: What is the mounting method for the AMM22T?
A5: The module is mounted on an analog I/O nest, such as the AMN11.
Q6: Can the AMM22T be used in safety-related applications?
A6: It is generally used in process control applications. For safety-related use, system-level certification and compliance should be verified.
Q7: What is the difference between AMM22T and AMM22C?
A7: The AMM22T is a terminal-type multiplexer module, while the AMM22C is a connector-type multiplexer module.
Q8: What standard does the thermocouple compatibility follow for AMM22T?
A8: The AMM22T follows Type N (Old JIS) compliance for thermocouple input when relevant signal conditioning is applied.
