Technical Specifications
| Parameter | Specification |
|---|---|

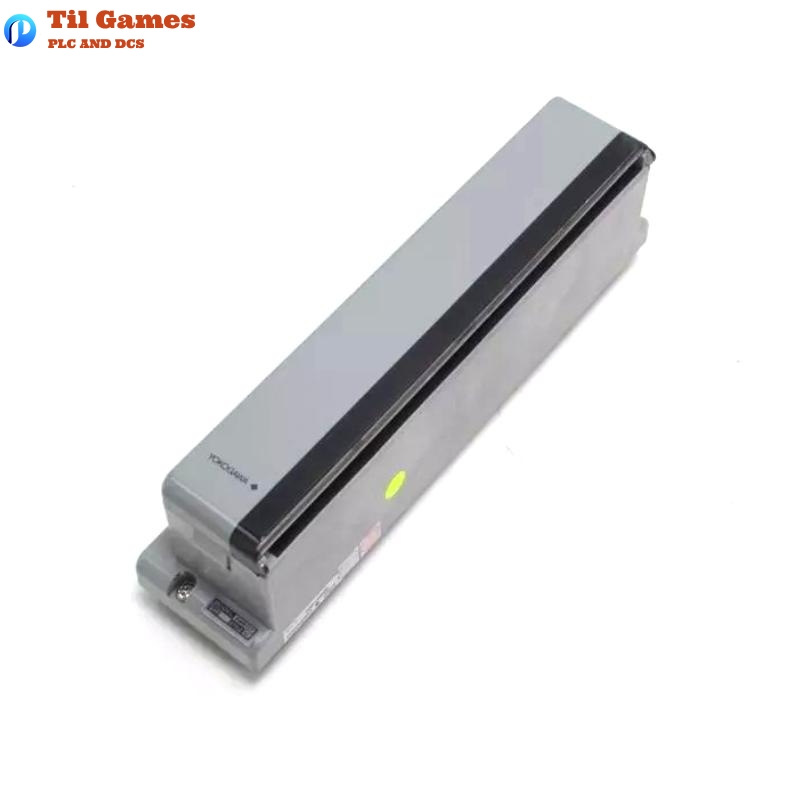

| Model Replaced | AMM12T (RIO system) |
| Replacement Model | AAV144-SM□ (RIO Upgrade Module) |
| Module Type | Analog Input Module |
| Signal Type | Voltage Input |
| Input Range | -10 V to +10 V |
| Number of Channels | 16 |
| Isolation | Isolated per channel |
| Input Impedance | 1 MΩ or more |
| Accuracy | ±0.1% of full scale |
| Resolution | 12 bits |
| Data Update Period | 100 ms per channel (typical) |
| Power Supply | Supplied through I/O Nest (24 V DC system power) |
| Mounting | Mounted in I/O Nest (for upgraded RIO system) |
| Dimensions | 45 × 97 × 103 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the function of the AMM12T Voltage Input Multiplexer Module?
A1: The AMM12T module is designed to multiplex multiple voltage input signals (up to 16 channels) and interface them with the control system, supporting signal ranges from -10 V to +10 V.
Q2: Is the AMM12T module isolated per input channel?
A2: Yes, each of the 16 input channels in the AMM12T module is galvanically isolated to ensure accurate signal acquisition and noise immunity.
Q3: What is the replacement model for AMM12T in the upgraded N-IO RIO system?
A3: The AAV144-SM□ module replaces the AMM12T in Yokogawa’s N-IO system upgrade, offering equivalent or enhanced functionality.
Q4: What type of analog signals can the AMM12T handle?
A4: The AMM12T module is designed specifically for voltage input signals, typically in the range of -10 V to +10 V.
Q5: Can the AMM12T be directly mounted into the NIU (Node Interface Unit)?
A5: No, the AMM12T must be installed into a compatible I/O nest which is then connected to the NIU for integration with the system.
Q6: What are the power requirements for the AMM12T module?
A6: The module operates on a 24 V DC system power supply provided through the I/O nest. It does not require a separate power supply.
Q7: How often does the module update input signal data?
A7: The typical data update period for each channel is approximately 100 milliseconds, ensuring timely input acquisition.
Q8: Is the AMM12T compatible with HART communication?
A8: No, the AMM12T module does not support HART communication. For HART-enabled modules, other models in Yokogawa’s analog input series should be considered.
