Technical Specifications
| Item | Specification |
|---|---|

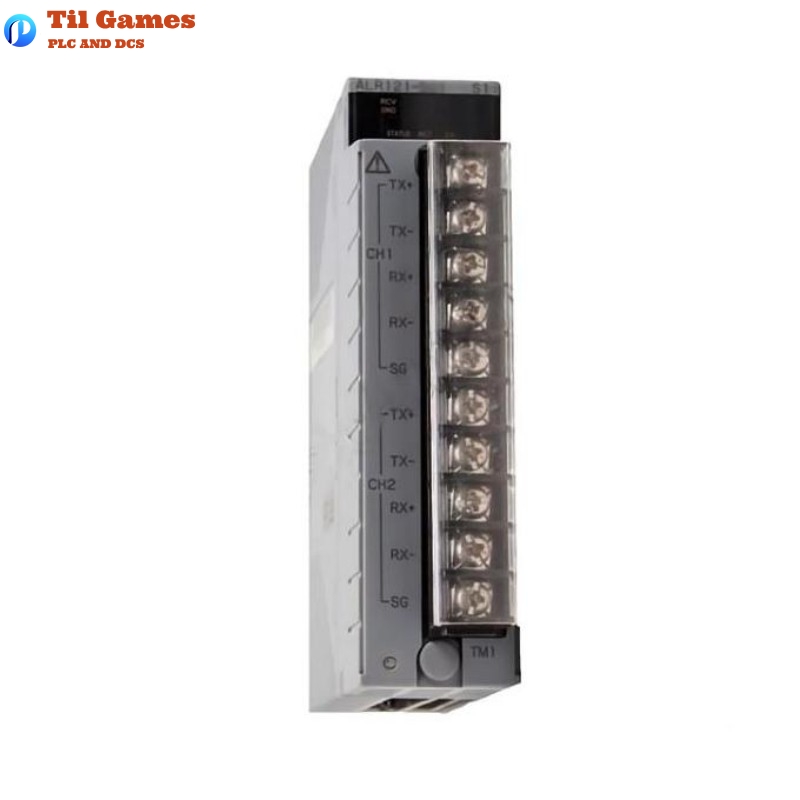

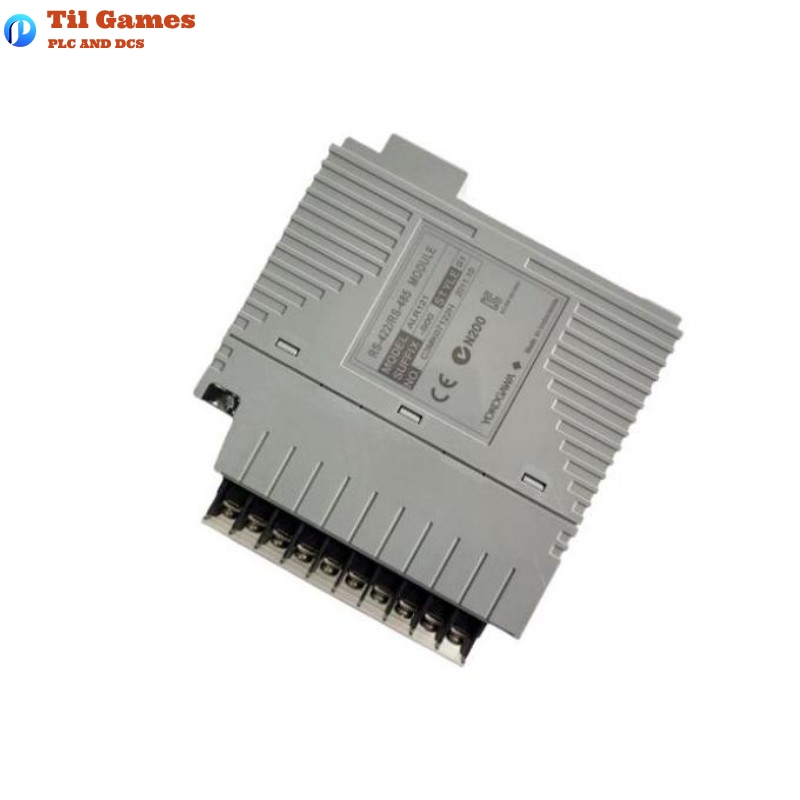

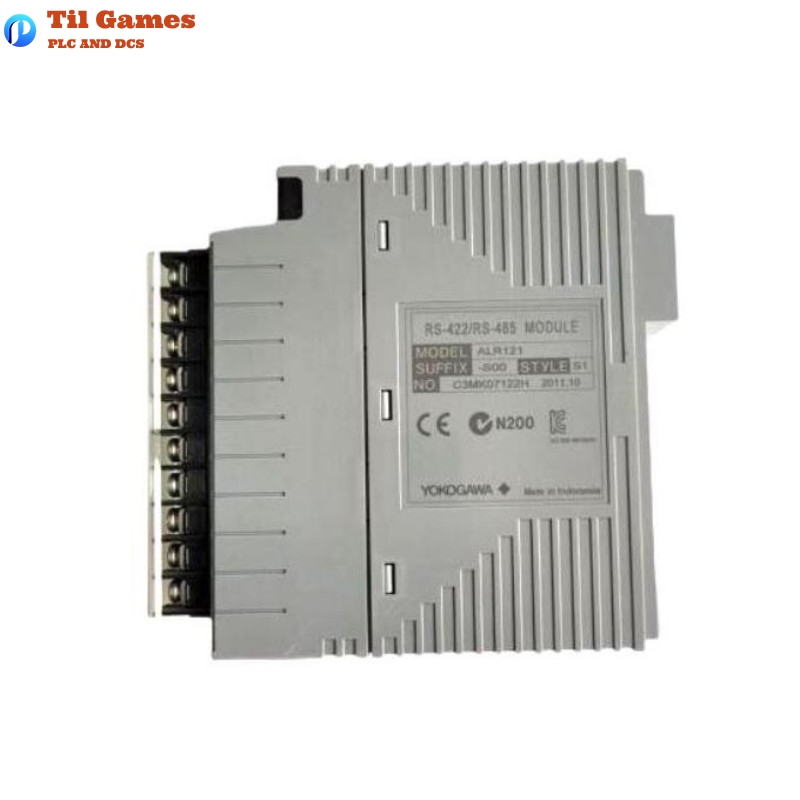

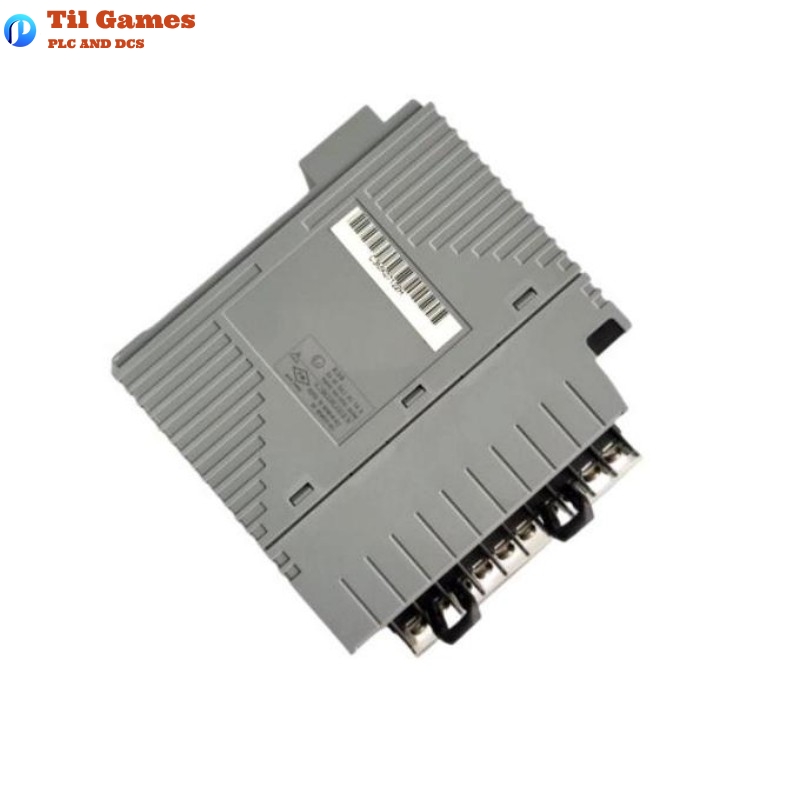

| Model | ALR121 Serial Communication Module |
| Interface | RS-422/RS-485 |
| Connection Method | Point-to-point (RS-422), Multipoint (RS-485) |
| Communication Function | Half-duplex |
| Synchronization Method | Start-stop synchronization |
| Transmission Speed | 1200/2400/4800/9600/19200/38400 bps |
| Transmission Code | ASCII/binary |
| Character Length | 7/8 bits |
| Stop Bit Length | 1/2 bits |
| Parity Check | None/even/odd |
| Lag Time After Data Transmission | 1 ms |
| Transmission Distance | Maximum 1200 m (total extended length) |
| Installation Method | Mounted on ANB10, ANB11, ANR10, AFF50, AFV10, AFV30, AFV40 |
| I/O Wiring | AKB131, AKB132, AKB133, AKB134 cables, etc. |
| Wiring Connection | D-sub-9-pin (female x 2), Clamped with terminal block’s M4 screws (5 poles x 2) |
| Current Consumption | 0.5 A |
| Weight | 0.3 kg |
| Dimensions | 126.7 × 32.8 × 130 mm |
FAQ
FAQ
Q1: What communication interfaces does the Yokogawa ALR121 support?
A1: The ALR121 supports RS-422/RS-485 interfaces, allowing point-to-point (RS-422) and multipoint (RS-485) communication.
Q2: What is the maximum transmission speed supported by the ALR121 module?
A2: The maximum transmission speed is 38400 bps, although it may vary depending on the communication function, subsystems, and connection method.
Q3: Can I use the ALR121 module for dual-redundant communication?
A3: Yes, the ALR121 module supports dual-redundant communication when used with identical modules on separate communication ports.
Q4: What is the maximum transmission distance for the ALR121?
A4: The ALR121 supports a maximum transmission distance of 1200 meters (total extended length).
Q5: How many devices can the ALR121 module communicate with simultaneously?
A5: The ALR121 module can communicate with up to 30 stations per port.
Q6: What is the power consumption of the ALR121 module?
A6: The ALR121 module consumes 0.5 A of current.
Q7: What are the supported communication protocols for the ALR121 module?
A7: The ALR121 supports various communication protocols such as Modbus, FA-M3, MELSEC-A, and SLC500, among others.
Q8: What are the dimensions and weight of the ALR121 module?
A8: The ALR121 module has dimensions of 126.7 × 32.8 × 130 mm and weighs 0.3 kg.
