Technical Specifications
| Parameter | Specification |
|---|---|

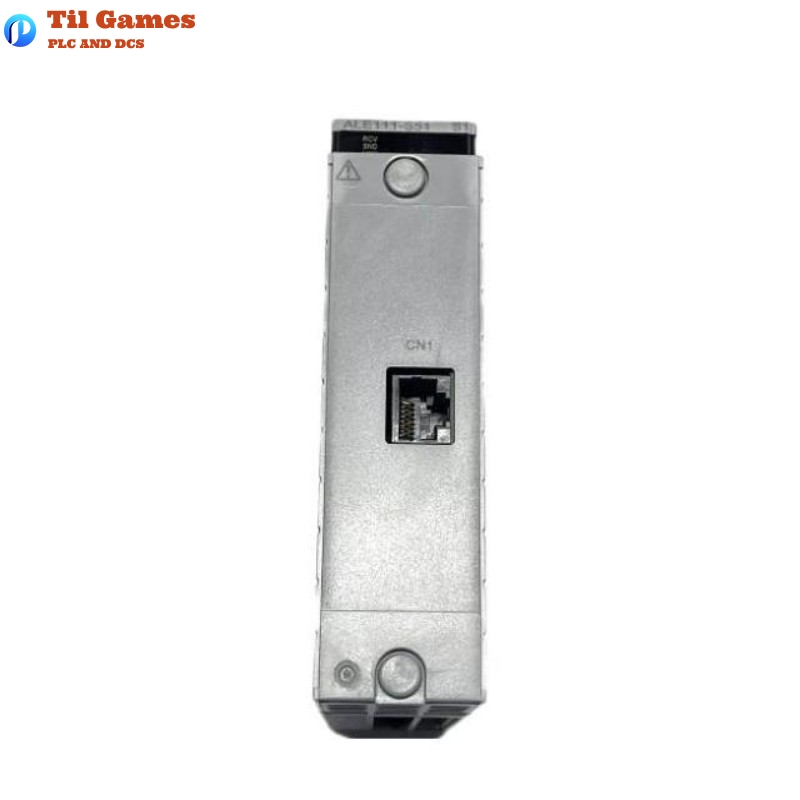

| Model | ALE111 Ethernet Communication Module |
| Interface | IEEE802.3 10BASE-T |
| Connection Method | Point-to-point |
| Connector | RJ-45 |
| Transmission Method | Half-duplex |
| Transmission Speed | 10 Mbps |
| Transmission Route | 100 ohm twisted-pair cable (unshielded) |
| Transmission Distance | 1 segment, 100 m |
| Installation | Mounted on various units like ANB10, ANB11, etc. |
| Number of Ports | 1 |
| Media Access Control | CSMA/CD |
| Current Consumption | 0.5 A |
| Weight | 0.3 kg |
| Dimensions | 130 x 125.5 x 32.8 mm |
FAQ
FAQ
-
Q: What devices can the ALE111 Ethernet Communication Module connect to?
A: The ALE111 can connect to subsystems like FA-M3, Modbus, MELSEC, YFGW, DARWIN/DAQSTATION, and PLC-5/SLC500. -
Q: What is the maximum number of subsystem stations supported by the ALE111 module?
A: The ALE111 supports a maximum of 30 stations per module. -
Q: How do I install the ALE111 module?
A: The ALE111 module is installed on units such as ANB10, ANB11, ANR10, and several others, depending on the specific application. -
Q: What is the transmission speed of the ALE111 module?
A: The transmission speed of the ALE111 Ethernet module is 10 Mbps. -
Q: Can the ALE111 module support dual-redundancy?
A: Yes, the ALE111 module can be configured in a dual-redundant setup, ensuring higher reliability in communication. -
Q: What is the current consumption of the ALE111 module?
A: The ALE111 module consumes 0.5 A of current during operation. -
Q: How far can the ALE111 module transmit Ethernet signals?
A: The ALE111 module supports a transmission distance of 100 meters, using unshielded twisted-pair cables. -
Q: What type of connector is used for the ALE111 module?
A: The ALE111 module uses an RJ-45 connector for Ethernet communication.
