Technical Specifications
| Item | Specification |
|---|---|

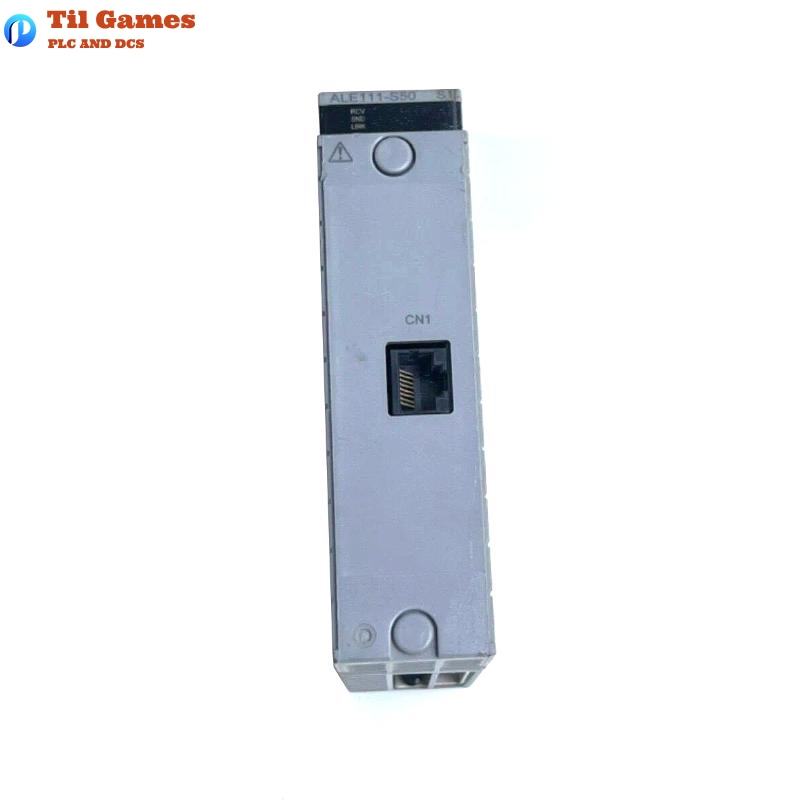

| Model | ALE111 Ethernet Communication Module |
| Physical Layer Interface | IEEE802.3 10BASE-T |
| Connection Method | Point-to-point |
| Connector | RJ-45 |
| Transmission Method | Half-duplex |
| Transmission Speed | 10 Mbps |
| Transmission Route | 100 ohm twisted-pair cable (not shielded) |
| Transmission Distance | 100 m (between FCS and subsystems, or HUB and subsystems) |
| Installation Method | Mounted on ANB10, ANB11, ANR10, AFF50, AFV10, AFV30, AFV40 |
| Number of Ports | One port |
| Media Access Control | CSMA/CD |
| Communication Functions | FA-M3, Modbus, MELSEC, YFGW, DARWIN/DAQSTATION, PLC-5/SLC500 |
| Current Consumption | 0.5 A |
| Weight | 0.3 kg |
| Dimensions (L x W x H) | 130 x 125.5 x 32.8 mm |
FAQ
FAQ Section
Q1: What is the maximum transmission distance for the ALE111 module?
A1: The maximum transmission distance is 100 meters, either between the FCS and subsystems, or between the HUB and subsystems.
Q2: What is the transmission speed of the ALE111 Ethernet Communication Module?
A2: The transmission speed is 10 Mbps.
Q3: How many ports does the ALE111 module have?
A3: The ALE111 module has one port.
Q4: What type of cable is used for transmission in the ALE111 module?
A4: The ALE111 uses a 100 ohm twisted-pair cable (not shielded).
Q5: Which devices can the ALE111 communicate with?
A5: The ALE111 communicates with FA-M3, Modbus, MELSEC, YFGW, DARWIN/DAQSTATION, and PLC-5/SLC500 devices.
Q6: What is the current consumption of the ALE111 module?
A6: The current consumption of the ALE111 module is 0.5 A.
Q7: What is the weight of the ALE111 module?
A7: The weight of the ALE111 module is 0.3 kg.
Q8: Where can the ALE111 module be installed?
A8: The ALE111 can be mounted on various devices such as ANB10, ANB11, ANR10, AFF50, AFV10, AFV30, and AFV40.
