Product Introduction

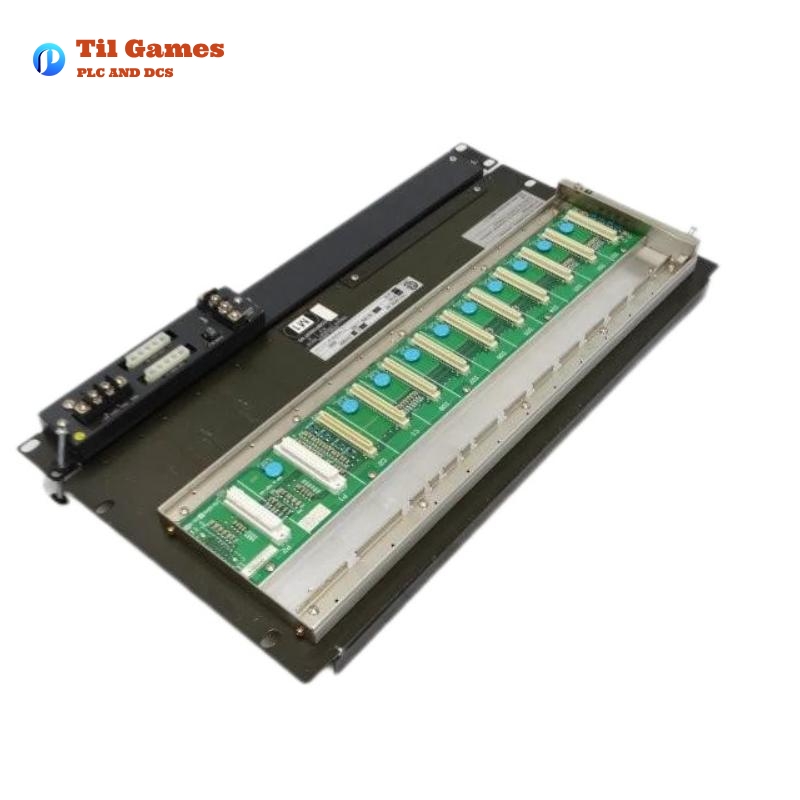

The Yokogawa AFV10D-S41101 Duplexed Field Control Unit is an advanced control device designed for industrial automation and process control. It plays a pivotal role in the Field Control Station (FCS), offering dual-redundant power supplies and control functions through Vnet/IP and FIO interfaces. Its robust design and reliable hardware specifications make it suitable for critical applications in hazardous and demanding environments. The unit is engineered to ensure uninterrupted operation with features such as battery backup and dual-redundant configurations, making it a trusted choice in modern control systems.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | AFV10D-S41101 Duplexed Field Control Unit |
| Control Type | Duplexed (Dual-Redundant) |
| Processor | VR5432 (133 MHz) |
| Main Memory Capacity | 32 Mbyte |
| Battery Backup | Up to 72 hours (during power failure) |
| Power Supply Options | 100–120 V AC / 220–240 V AC / 24 V DC |
| Power Consumption | 230 VA (220–240 V AC), 200 VA (100–120 V AC) |
| Dimensions | 265.9 x 482.6 mm |
| Weight | 8 kg |
| Mounting Type | 19-inch Rack Mountable (8 x M5 screw mounting) |
| Communication Interface | Dual-redundant Vnet/IP, FIO |
Product Features
-
Highly reliable duplexed design ensuring dual-redundant power supply and control functions.
-
Equipped with a high-performance VR5432 processor operating at 133 MHz.
-
Incorporates 32 Mbyte of main memory with battery backup support for up to 72 hours during power failure.
-
Supports multiple power supply options including 100–120 V AC, 220–240 V AC, and 24 V DC, offering versatile installation flexibility.
-
Standardized 19-inch rack mount design with precise dimensions for seamless integration into existing control cabinets.
-
Robust communication interface with dual-redundant Vnet/IP and FIO connectivity for improved network reliability.
Product Advantages
-
Redundancy and Reliability:
-
The duplexed configuration provides continuous operation even if one pathway fails.
-
-
Enhanced System Integration:
-
Designed for easy integration into Vnet/IP and FIO-based systems, it minimizes downtime during system upgrades.
-
-
User-Friendly Installation:
-
The unit features standard mounting options with pre-drilled holes and M5 screw terminals, simplifying the installation process.
-
-
Robust Build for Industrial Environments:
-
Its compact design, proven durability, and strict adherence to safety and EMC standards ensure performance in harsh conditions.
-
-
Flexible Power Options:
-
Multiple power supply options allow customization to fit specific installation requirements.
-
Product Applications
The AFV10D-S41101 is widely used in various industrial scenarios, including:
-
Process Control Systems:
-
Essential in controlling and monitoring complex industrial processes within refineries, chemical plants, and power stations.
-
-
Safety-Critical Installations:
-
Its redundant design makes it ideal for applications where continuous operation is crucial, such as in hazardous areas and explosion-proof environments.
-
-
Distributed Control Systems (DCS):
-
Forms the core of modern DCS, integrating with other control units to provide a centralized management system for large-scale industrial operations.
-
-
Remote Monitoring and Control:
-
Facilitates remote system supervision and control via its advanced communication interfaces, enhancing operational efficiency.
-
Latest News Headline
Yokogawa Unveils the Enhanced AFV10D-S41101 Duplexed Field Control Unit, Promising Unprecedented Reliability and System Integration in Industrial Automation
Recommended Models in the Same Series / Related Models
| Model | Type | Dimensions | Weight | Key Feature |
|---|---|---|---|---|
| AFV10S-S41101 | Single/Standard Field Control Unit | 265.9 x 482.6 mm | 7 kg | Compact design with single-redundant power |
| AFV10D-S41101 | Duplexed Field Control Unit | 265.9 x 482.6 mm | 8 kg | Dual-redundant configuration |
| AFV10D-S41102 | Duplexed Field Control Unit | 265.9 x 482.6 mm | 8 kg | Enhanced communication interface |
| AFV10S-S41102 | Single/Standard Field Control Unit | 265.9 x 482.6 mm | 7 kg | Optimized for energy efficiency |
| AFV10D-S41111 | Duplexed Field Control Unit | 265.9 x 482.6 mm | 8 kg | Advanced battery backup system |
| AFV10S-S41111 | Single/Standard Field Control Unit | 265.9 x 482.6 mm | 7 kg | Versatile installation in compact systems |
Recommended Popular Yokogawa Models
| Model | Product Type | Dimensions | Weight | Notable Feature |
|---|---|---|---|---|
| ProSafe-RS 9111 | Safety Instrumented System | 300 x 500 mm | 9 kg | High integrity safety performance |
| CENTUM VP 7100 | Distributed Control System | 350 x 550 mm | 10 kg | Comprehensive process automation |
| STARDOM FDT-200 | Field Device Manager | 265.9 x 482.6 mm | 8 kg | Efficient field device management |
| ADMag 4000 | Analog-to-Digital Converter | 250 x 480 mm | 7.5 kg | Precise signal conversion |
| PRM 500 | Plant Resource Manager | 270 x 490 mm | 8.2 kg | Streamlined resource optimization |
| DX Advanced Controller 300 | Process Automation Controller | 265.9 x 482.6 mm | 8 kg | Advanced control algorithms for automation |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the AFV10D-S41101?
A1: The AFV10D-S41101 serves as the core control unit for the Field Control Station, ensuring dual-redundant control and power supply functions through Vnet/IP and FIO communication interfaces.
Q2: What power supply options are available for this unit?
A2: The unit is compatible with three power supply options: 100–120 V AC, 220–240 V AC, and 24 V DC, allowing flexibility for various installation requirements.
Q3: How does the AFV10D-S41101 ensure reliable operation during power interruptions?
A3: The unit features a battery backup system that maintains main memory for up to 72 hours during power outages, ensuring minimal system disruption.
Q4: What are the mounting specifications of the AFV10D-S41101?
A4: The unit is designed for easy installation in a 19-inch rack mount, requiring eight M5 screws for secure attachment.
Q5: Which communication interfaces does the unit support?
A5: The AFV10D-S41101 supports dual-redundant Vnet/IP and FIO communication interfaces, ensuring a reliable connection in critical control systems.
Q6: What is the benefit of the duplexed design in the AFV10D-S41101?
A6: The duplexed design provides dual-redundant power supplies and control functions, improving the overall reliability and preventing system downtime in the event of a failure.
Q7: How does the AFV10D-S41101 contribute to system integration?
A7: The unit’s standardized design and support for advanced communication interfaces make it highly compatible with existing control systems, streamlining integration in complex industrial environments.
Q8: Can the AFV10D-S41101 be used in hazardous environments?
A8: Yes, the AFV10D-S41101 complies with multiple safety and EMC standards, making it suitable for use in hazardous and explosion-prone environments with the appropriate explosion protection options.
