Product Introduction

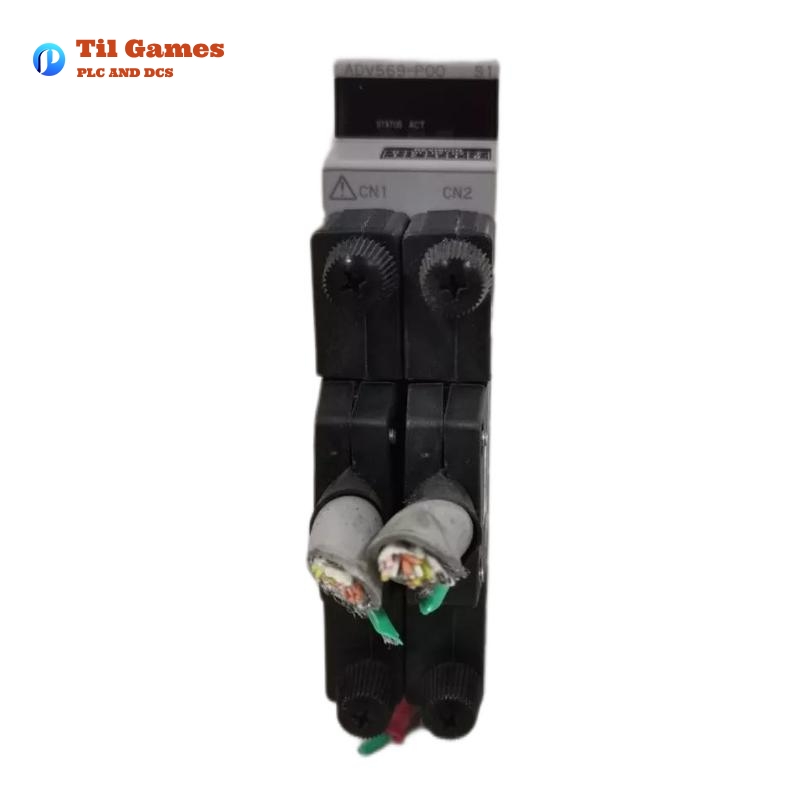

The Yokogawa ADV569-P00 Digital Output Module is a high-density 64-channel output module designed for field control in distributed control systems (DCS). As part of the ST-compatible I/O modules for the CENTUM VP system, the ADV569 is specifically engineered to deliver fast, reliable digital signal transmission for industrial automation applications. It features transistor output contacts and supports a combination of standard ON/OFF outputs, time-proportional (TP), and pulse width (PW) outputs.
This model is isolated with a common every 16-channel architecture, allowing robust performance in environments requiring precise control and output signal integrity.
Product Specifications
| Parameter | Description |
|---|---|
| Model | ADV569-P00 |
| Output Type | Digital (Transistor Contact, Current Sink Type) |
| Number of Output Channels | 64 |
| Output Function | Status Output, Pulse Width Output, Time-Proportional Output |
| Rated Output Voltage | 24 V DC |
| External Power Supply | 24 V DC (Min. 20.4 V, Max. 26.4 V) |
| Output Contact Rating | Inductive/Resistive Load: 30 V DC, 100 mA |
| Output Response Time | 16 ms or less |
| Pulse Width Range | 8 ms to 7200 s |
| Pulse Width Resolution | 8 ms (±1 ms ON/OFF delay possible) |
| Isolation | Common minus (-) side every 16-channel |
| Maximum Current Consumption | 800 mA (5 V DC) |
| Weight | Approx. 0.30 kg |
| Dimensions (H x D x W) | 130 x 127.2 x 32.8 mm |
| External Connection | Dedicated cable (KS9) |
| Compatible Card | ST7 compatible |
| Mounting | Mounted in a node unit or FCU chassis |
Key Features
-
64 fully isolated digital output channels
-
Configurable output types: Standard ON/OFF, Pulse Width (PW), and Time-Proportional (TP)
-
Transistor contact type suitable for industrial control applications
-
High-density and space-saving design
-
Wide compatibility with CENTUM VP control systems
-
Built-in isolation between output and system for high reliability
-
Robust short-circuit protection and noise immunity
-
Dedicated cable (KS9) connection for simplified installation
Product Advantages
-
High Channel Density: With 64 output channels, it allows maximum utilization of cabinet space and reduces wiring complexity.
-
Flexible Output Control: Supports pulse width and time-proportional modes, ideal for various control strategies in process automation.
-
Superior Reliability: Isolation and protection against electrical noise ensure stable operation in harsh environments.
-
Seamless Integration: Designed for use within Yokogawa’s CENTUM VP DCS, enabling plug-and-play system expansion.
-
Efficient Power Management: Consumes minimal current (800 mA), optimizing overall system power budget.
-
Rugged Construction: Built to handle demanding industrial settings with standard G3 environmental rating options.
Applications
-
Petrochemical Plants: For controlling valves, pumps, heaters, and indicators.
-
Power Generation Facilities: Suitable for turbine control systems and relay actuation.
-
Water Treatment Plants: Used for controlling solenoids and actuator systems.
-
Pharmaceutical Industries: Precise output control for batch and packaging processes.
-
Steel and Metal Plants: Real-time output control for motors and conveyors.
-
General Factory Automation: PLC interfacing, status signal transmission, and machine control.
Latest Industry Report Headline
“Yokogawa Expands Digital I/O Portfolio with ADV569 Module for High-Density Applications in Harsh Industrial Environments”
Related Models in the Same Series
| Model | Type | Channels | Output/Input | Weight | Dimensions (mm) |
|---|---|---|---|---|---|
| ADV551-P00 | Digital Output | 32 | Transistor Output | 0.20 kg | 130 x 107.5 x 32.8 |
| ADV561-P00 | Digital Output | 64 | Transistor Output | 0.30 kg | 130 x 119.9 x 32.8 |
| ADV559-P00 | Digital Output | 32 | Transistor Output | 0.30 kg | 130 x 127.2 x 32.8 |
| ADV859-P00 | Digital I/O | 16 in / 16 out | Contact & Transistor | 0.30 kg | 130 x 127.2 x 32.8 |
| ADV869-P00 | Digital I/O | 32 in / 32 out | Contact & Transistor | 0.30 kg | 130 x 127.2 x 32.8 |
| ADV169-P00 | Digital Input | 64 | Contact Input | 0.30 kg | 130 x 127.2 x 32.8 |
6 Popular Yokogawa Models
| Model | Type | Channels | Function | Weight | Dimensions (mm) |
|---|---|---|---|---|---|
| ADV151-P00 | Digital Input | 32 | Contact Input, SOE | 0.30 kg | 130 x 107.5 x 32.8 |
| ADV161-P00 | Digital Input | 64 | Contact Input, Pushbutton | 0.30 kg | 130 x 119.9 x 32.8 |
| AAI143-H50 | Analog Input | 16 | Voltage/Current Input | 0.20 kg | 130 x 124.5 x 30 |
| AAI543-H00 | Analog Output | 16 | Voltage/Current Output | 0.25 kg | 130 x 124.5 x 30 |
| ADM51C | Pulse Input Module | 8 | Pulse Train Input | 0.22 kg | 130 x 125 x 32 |
| SAI533-H00 | Safety Analog Input | 16 | Redundant Input | 0.30 kg | 130 x 125 x 32.8 |
FAQ
FAQ (Frequently Asked Questions)
Q1: What type of loads can the ADV569 control?
A1: The ADV569 can control inductive and resistive DC loads up to 100 mA at 30 V DC per channel.
Q2: Can ADV569 be used in dual-redundant configurations?
A2: No, ADV569 is not designed for dual-redundant use. Redundancy is handled at the system level in compatible architectures.
Q3: Does ADV569 support mixed output functions?
A3: Yes, it can support a mix of Status Output, Pulse Width (PW), and Time-Proportional (TP) outputs, with specific terminal configuration rules.
Q4: What kind of isolation does it provide?
A4: The module is isolated with a common minus side every 16-channel for stable and noise-immune operation.
Q5: Is external power required?
A5: Yes, an external 24 V DC power supply is required, with a consumption of approximately 800 mA.
Q6: What is the minimum pulse width setting?
A6: The minimum pulse width is 8 ms, and it can be configured up to 7200 seconds.
Q7: What installation interfaces are available?
A7: It connects via dedicated cable KS9, and the module is compatible with ST7 card interfaces.
Q8: Does the module support environmental protection features?
A8: Yes, suffix options are available for explosion protection and G3-rated environments (-20 to 70°C operation).
