Technical Specifications
| Parameter | Specification |
|---|---|

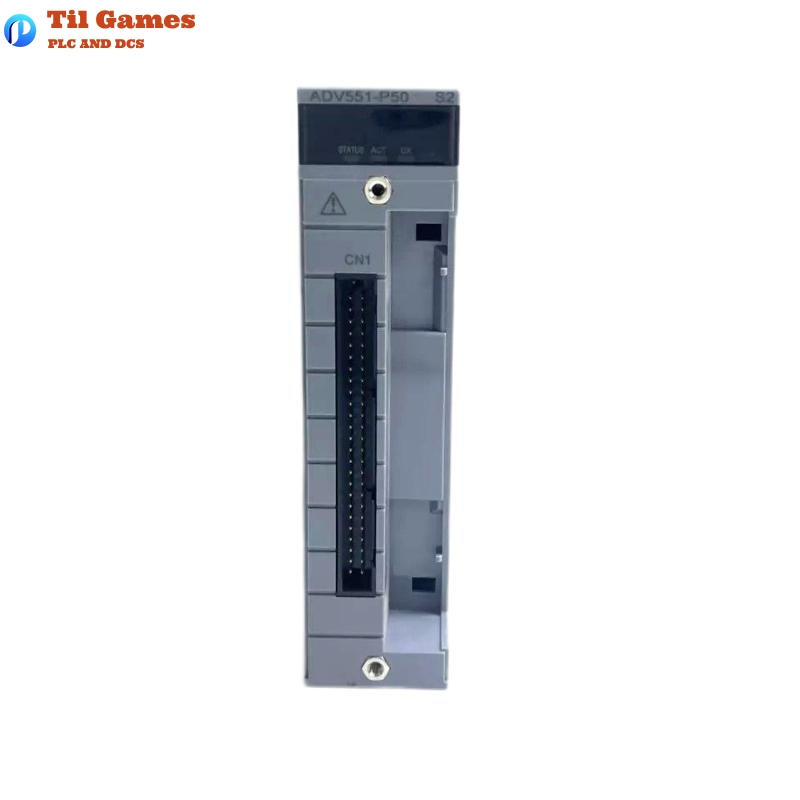

| Model | ADV551-P50 S2 Digital Output Module |
| Number of Output Channels | 32 channels |
| Rated Applied Voltage | 24 V DC |
| External Power Supply Rating | 24 V DC, 50 mA |
| External Power Supply Voltage Range | 20.4 to 26.4 V DC |
| Output ON Voltage Maximum | 2 V DC |
| Leak Current Maximum (when OFF) | 0.1 mA |
| Output Format | Current sink |
| Maximum Load Current | 100 mA/channel, 26.4 V |
| Withstanding Voltage | 2 kV AC for 1 minute (between output signal and system) |
| Output Response Time | 3 ms or less (for status output) |
| Pulse Width Output | 8 ms to 7200 s |
| Pulse Width Resolution | 8 ms, with max 1 ms ON/OFF delay |
| Maximum Current Consumption | 700 mA (5 V DC), 60 mA (external power supply) |
| Weight | Approx. 0.20 kg |
| Dimensions | 107.5 × 130 × 32.8 mm |
FAQ
FAQ
Q1: What is the rated voltage for the ADV551-P50 S2 module?
A1: The rated applied voltage for the ADV551-P50 S2 Digital Output Module is 24 V DC.
Q2: What is the maximum current that each output channel can handle?
A2: Each output channel can handle a maximum load current of 100 mA at 26.4 V.
Q3: What is the weight of the ADV551-P50 S2 module?
A3: The weight of the ADV551-P50 S2 Digital Output Module is approximately 0.20 kg.
Q4: What is the external power supply rating for this module?
A4: The external power supply rating is 24 V DC, 50 mA.
Q5: How long is the output response time?
A5: The output response time is 3 ms or less for status output.
Q6: What is the withstanding voltage of the module?
A6: The module has a withstanding voltage of 2 kV AC for 1 minute between the output signal and the system.
Q7: What is the pulse width range for the output?
A7: The pulse width range is from 8 ms to 7200 seconds.
Q8: Can the module be used in dual redundancy configurations?
A8: Yes, the ADV551 module can be used in dual redundant configurations.
