Product Specifications
| Parameter | Value |
|---|---|

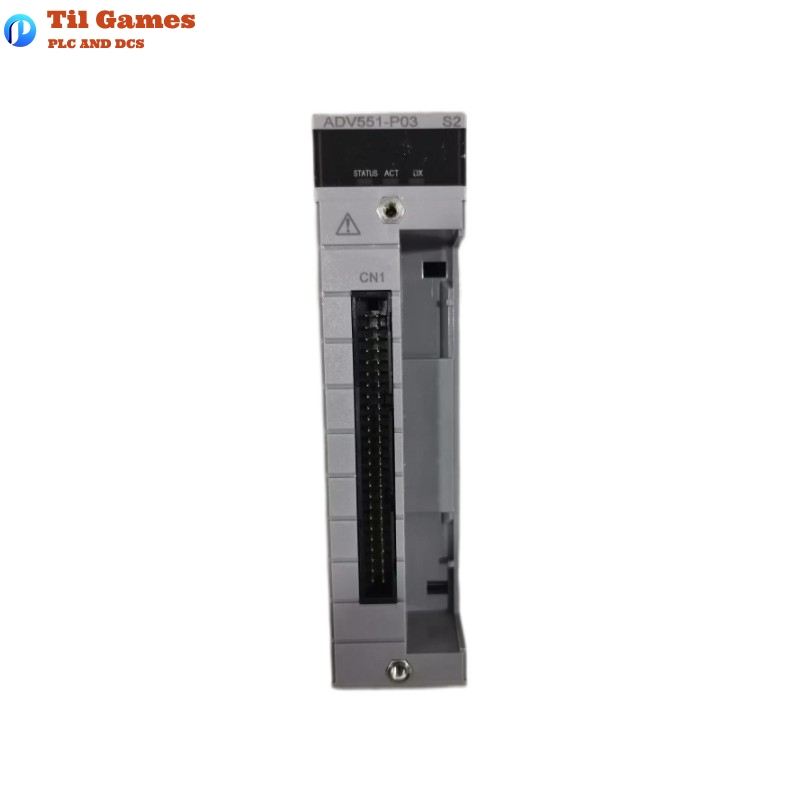

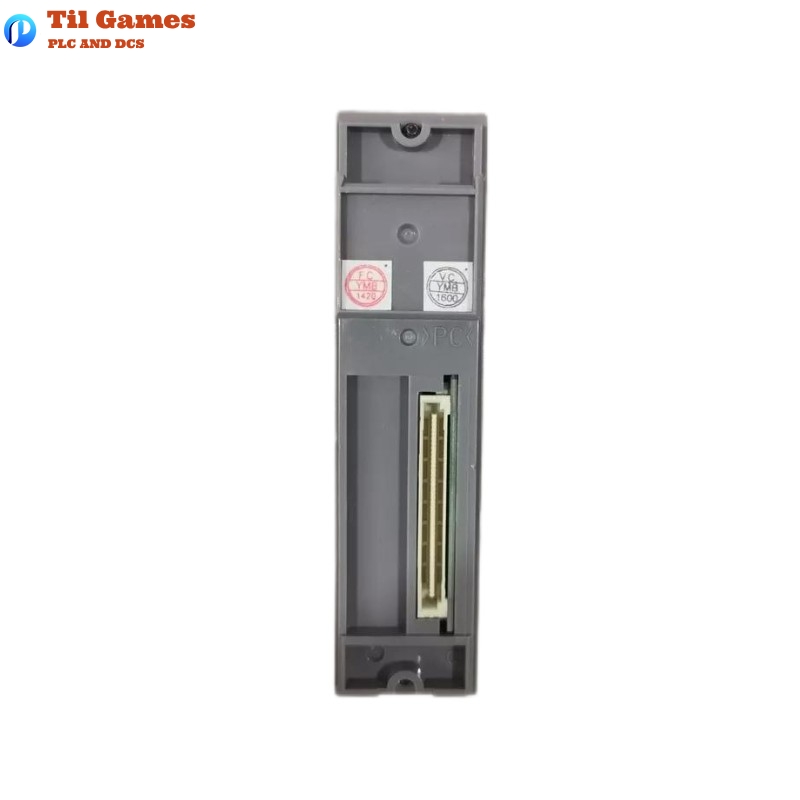

| Model | ADV551-P03/D5A00 |
| Number of Output Channels | 32 |
| Rated Applied Voltage | 24 V DC |
| External Power Supply Rating | 24 V DC, 50 mA |
| Output ON Voltage Maximum Value | 2 V DC |
| Leak Current Maximum (Output OFF) | 0.1 mA |
| Output Format | Current sink |
| Maximum Load Current | 100 mA/channel, 26.4 V |
| Withstanding Voltage | 2 kV AC (between output signal and system, for 1 minute) |
| 500 V AC (between commons, for 1 minute) | |
| Output Response Time | 3 ms or less (for status output) |
| Pulse Width Output | 8 ms to 7200 s |
| Pulse Width Resolution | 8 ms, but ON/OFF delay of 1 ms is added |
| Maximum Current Consumption | 700 mA (5 V DC) |
| External Connection | Pressure clamp terminal, MIL connector cable |
| Dimensions | 107.5 × 130 × 32.8 mm |
| Weight | 0.2 kg |
FAQ
FAQ
-
What is the rated applied voltage for the ADV551-P03/D5A00 Digital Output Module?
-
The rated applied voltage is 24 V DC.
-
-
How many output channels does this module have?
-
The module has 32 output channels.
-
-
What is the maximum load current per output channel?
-
The maximum load current is 100 mA per channel, with a maximum of 26.4 V.
-
-
What are the key output functions of the module?
-
The module supports ON/OFF status output, pulse width output, and time-proportional output.
-
-
What is the output response time?
-
The output response time is 3 ms or less for status outputs.
-
-
What is the weight of the ADV551-P03/D5A00 module?
-
The weight of the module is approximately 0.2 kg.
-
-
What is the withstanding voltage between the output signal and the system?
-
The withstanding voltage is 2 kV AC for 1 minute.
-
-
What type of external connections does the module support?
-
The module supports pressure clamp terminals and MIL connector cables.
-
