Technical Specifications
| Item | Specification |
|---|---|

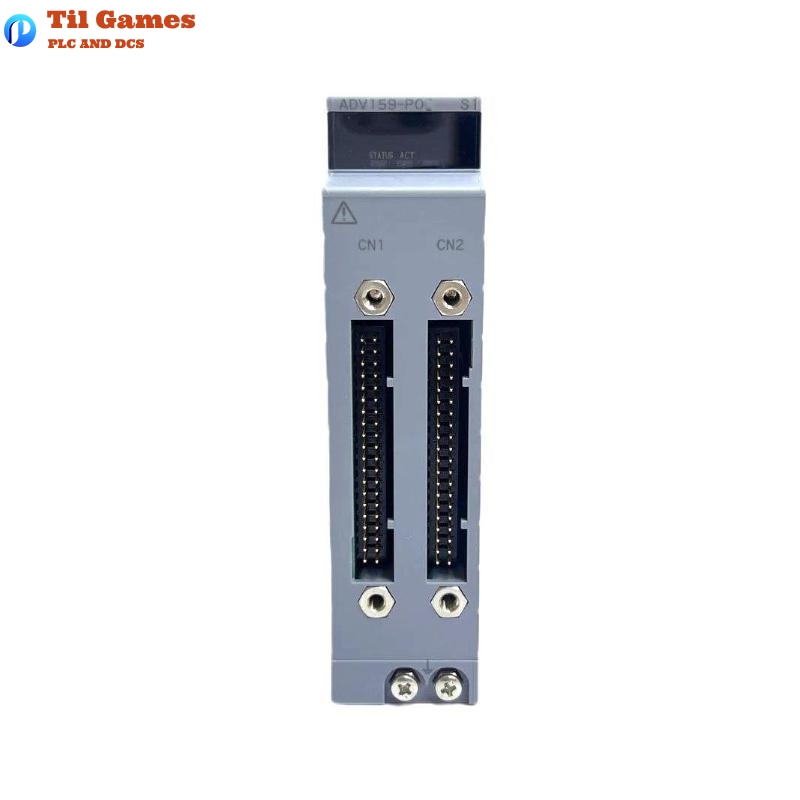

| Model | ADV159-P01 S1 |
| Input Channels | 32 |
| Rated Input Voltage | 24 V DC (Sink/Source) |
| Input ON Voltage | 20 to 26.4 V DC |
| Input OFF Voltage | 5.0 V DC or less |
| Input Current | 2.5 mA ±20% / channel |
| Maximum Allowable Input Voltage | 30.0 V DC |
| Withstand Voltage | Between input signal and system: 2 kV AC, 1 minute |
| Input Response Time | 8 ms or less (status input) |
| Minimum ON Detection Time | 20 ms (pushbutton input) |
| Maximum ON/OFF Cycle | 25 Hz (pushbutton input) |
| Maximum Current Consumption | 500 mA (5 V DC) |
| External Connection | Pressure clamp terminal, dedicated cable (AKB331), MIL connector cable |
| Weight | 0.4 kg |
| Dimensions | 127.2 × 130 × 32.8 mm |
FAQ
FAQ
-
Q: What devices is this module compatible with?
A: This module is compatible with ST3 devices and works with 24 V DC input signals. -
Q: What types of input signals does it support?
A: It supports contact and voltage input signals with isolated channels. -
Q: Does this module support pushbutton input functionality?
A: Yes, the ADV159 supports pushbutton input functionality for counting pushbutton edges. -
Q: What is the input response time of this module?
A: The input response time is 8 ms or less. -
Q: What is the operating temperature range of this module?
A: The operating temperature range is -20°C to 70°C. -
Q: What is the maximum current consumption of this module?
A: The maximum current consumption is 500 mA (5 V DC). -
Q: Does the ADV159 module support dual redundancy configuration?
A: No, the ADV159 module does not support dual redundancy configuration. -
Q: What are the external connection options for this module?
A: The module can be connected via pressure clamp terminals, dedicated cables (AKB331), or MIL connector cables.
