Technical Specifications
| Item | Specification |
|---|---|

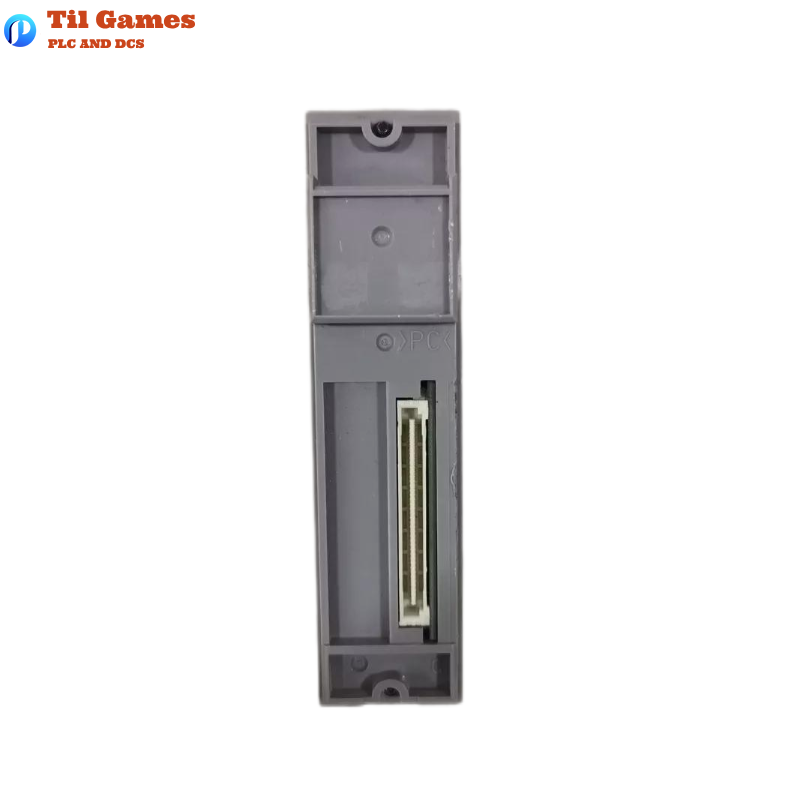

| Model | ADV151-P00/D5A00 |
| Number of Input Channels | 32 channels |
| Rated Input Voltage | 24 V DC (sink/source compatible) |
| Input ON Voltage | 18 to 26.4 V DC |
| Input OFF Voltage | 5.0 V DC or less |
| Input Current (at rated V) | 4.1 mA ±20% per channel |
| Max Allowable Input Voltage | 30.0 V DC |
| Withstanding Voltage | 2 kV AC between input and system (1 min) |
| 500 V AC between commons (per 16 channels) | |
| Input Response Time | ≤ 8 ms (status input) |
| Minimum ON Detection Time | 20 ms (pushbutton input) |
| Max ON/OFF Cycle | 25 Hz (pushbutton input) |
| SOE Input Function | Supported |
| Input Functions | Status input, Pushbutton input, SOE capture |
| Max Current Consumption | 500 mA (5 V DC) |
| External Connection | Pressure clamp terminal, MIL, cable (AKB331) |
| Dimensions (W × H × D) | 107.5 × 130 × 32.8 mm |
| Weight | Approx. 0.30 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What input types are supported by the ADV151-P00 module?
A1: It supports 24 V DC sink and source type input signals.
Q2: What is the input current per channel?
A2: 4.1 mA ±20% per channel at rated 24 V DC input.
Q3: Does the module support SOE (Sequence of Events) input?
A3: Yes, the ADV151-P00 includes SOE input functionality for event capture.
Q4: Is pushbutton input detection supported?
A4: Yes, the module supports edge detection for pushbutton inputs.
Q5: What is the maximum allowable input voltage?
A5: The maximum allowable input voltage is 30.0 V DC.
Q6: What is the response time for status input?
A6: Response time is less than or equal to 8 ms.
Q7: What are the module’s physical dimensions?
A7: The dimensions are 107.5 × 130 × 32.8 mm.
Q8: What types of external connections are available?
A8: The module can be connected using pressure clamp terminals, MIL connectors, or a dedicated cable (e.g., AKB331).
