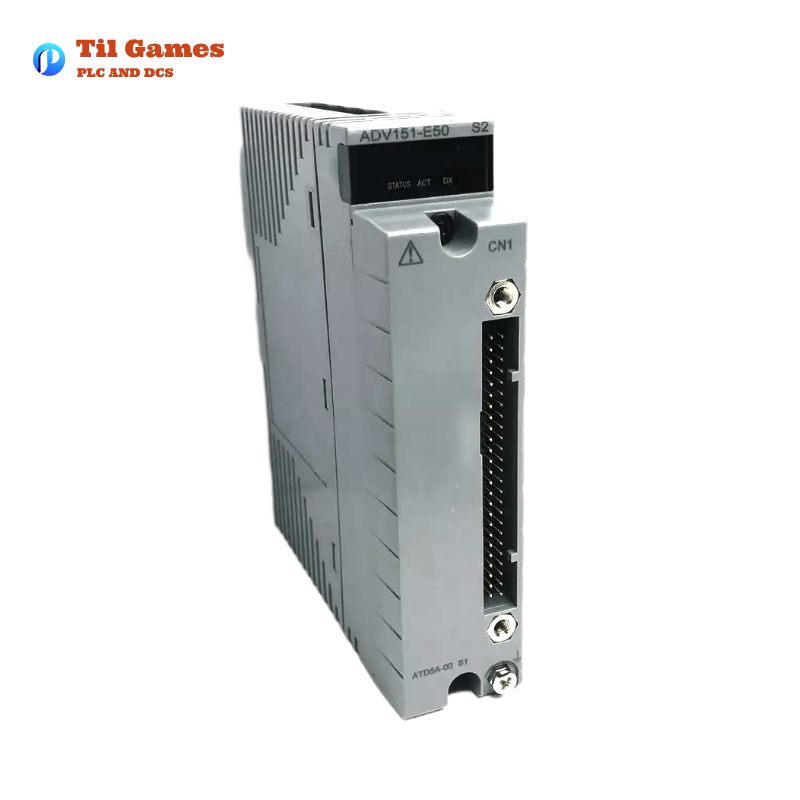

Yokogawa ADV151-E50 Digital Input Module

Yokogawa ADV151-E50 Digital Input Module

Manufacturer:Yokogawa

Product Number:ADV151-E50

Product Type:Digital Input Module

Origin:Japan

Dimensions:107.5 × 130 × 32.8 mm

Weight:0.3 kg

Views:17

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/ADV151-E50-2-1.png
https://www.tilgames.com/wp-content/uploads/2025/03/ADV151-E50-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/ADV151-E50-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/ADV151-E50.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Yokogawa ADV151-E50 Digital Input Module is a high-performance, 32-channel digital input module designed for industrial automation and control systems. It is part of Yokogawa’s extensive range of digital I/O modules, which are known for their reliability, precision, and versatility. The ADV151-E50 is specifically designed to handle 24 V DC ON/OFF signals, making it suitable for a wide range of applications in various industries.

Product Parameters

Parameter Specification
Model ADV151-E50
Number of Input Channels 32
Rated Input Voltage 24 V DC (sink/source)
Input ON Voltage 18 to 26.4 V DC
Input OFF Voltage 5.0 V DC or less
Input Current 4.1 mA ±20% per channel
Maximum Allowable Input Voltage 30.0 V DC
Withstanding Voltage Between input signal and system: 2 kV AC, For 1 minute
Input Response Time 8 ms or less (for status input)
Minimum ON Detection Time 20 ms (for pushbutton input)
Maximum ON/OFF Cycle 25 Hz (for pushbutton input)
Maximum Current Consumption 500 mA (5 V DC)
Weight 0.3 kg
Dimensions 107.5 × 130 × 32.8 mm
External Connection Pressure clamp terminal, Dedicated cable (AKB331), MIL connector cable

Product Features

  • High Channel Density: The ADV151-E50 offers 32 input channels, providing high channel density in a compact form factor.
  • Versatile Input Voltage Range: It supports a wide input voltage range (18 to 26.4 V DC), making it adaptable to various industrial environments.
  • Fast Response Time: With an input response time of 8 ms or less, the module ensures quick and accurate signal processing.
  • Dual Redundant Configuration: The module can be used in dual redundant configurations, enhancing system reliability.
  • Pushbutton Input Function: The ADV151-E50 supports pushbutton input functionality, allowing for edge detection and counting.
  • Robust Design: The module is designed to withstand harsh industrial conditions, with a withstanding voltage of 2 kV AC between input signals and the system.

Product Advantages

  • Reliability: Yokogawa’s reputation for high-quality industrial automation products ensures that the ADV151-E50 is reliable and durable.
  • Flexibility: The module’s compatibility with various Yokogawa systems and its ability to handle both sink and source inputs make it highly flexible.
  • Ease of Integration: The module is easy to integrate into existing systems, thanks to its standard pressure clamp terminals and dedicated cables.
  • Safety: The module meets stringent safety standards, including withstanding voltage tests, ensuring safe operation in industrial environments.

Product Applications

The Yokogawa ADV151-E50 Digital Input Module is widely used in various industrial applications, including:

  • Process Control Systems: For monitoring and controlling industrial processes.
  • Manufacturing Automation: In automated production lines for signal processing and control.
  • Energy Management Systems: For monitoring energy consumption and control in power plants.
  • Building Automation: In HVAC systems and security systems for signal input processing.
  • Transportation Systems: For signal processing in railway and traffic control systems.

Latest News Headlines

  • “Yokogawa Launches New ADV151-E50 Digital Input Module with Enhanced Features for Industrial Automation”
  • “Yokogawa’s ADV151-E50 Module Sets New Standards in Digital Input Processing”
  • “Yokogawa Expands Its Digital I/O Module Lineup with the ADV151-E50”

Recommended Related Models

Model Description Channels Input Voltage Dimensions Weight
ADV151-P Digital Input Module (32-channel, 24 V DC, Isolated) 32 24 V DC 107.5 × 130 × 32.8 mm 0.3 kg
ADV157 Digital Input Module (32-channel, 24 V DC, Pressure Clamp Terminal support only) 32 24 V DC 107.5 × 130 × 32.8 mm 0.4 kg
ADV161 Digital Input Module (64-channel, 24 V DC, Isolated) 64 24 V DC 107.5 × 130 × 32.8 mm 0.3 kg
ADV141 AC Digital Input Module (16-channel, 100-120 V AC, Isolated) 16 100-120 V AC 107.5 × 130 × 32.8 mm 0.3 kg
ADV142 AC Digital Input Module (16-channel, 200-240 V AC, Isolated) 16 200-240 V AC 107.5 × 130 × 32.8 mm 0.3 kg
ADV551 Digital Output Module (32-channel, 24 V DC, Isolated) 32 24 V DC 107.5 × 130 × 32.8 mm 0.2 kg

Recommended Popular Yokogawa Models

Model Description Channels Input/Output Voltage Dimensions Weight
ADV551 Digital Output Module (32-channel, 24 V DC, Isolated) 32 24 V DC 107.5 × 130 × 32.8 mm 0.2 kg
ADV561 Digital Output Module (64-channel, 24 V DC, Isolated) 64 24 V DC 107.5 × 130 × 32.8 mm 0.3 kg
ADR541 Relay Output Module (16-channel, 24-110 V DC/100-240 V AC, Isolated) 16 24-110 V DC/100-240 V AC 107.5 × 130 × 32.8 mm 0.3 kg
ADV859 Digital I/O Module for Compatible ST2 (16-channel input/16-channel output) 16/16 24 V DC 107.5 × 130 × 32.8 mm 0.3 kg
ADV159 Digital Input Module for Compatible ST3 (32-channel, Isolated) 32 24 V DC 107.5 × 130 × 32.8 mm 0.4 kg
ADV559 Digital Output Module for Compatible ST4 (32-channel output, Isolated) 32 24 V DC 107.5 × 130 × 32.8 mm 0.3 kg
FAQ

Frequently Asked Questions (FAQ)

Q1: What is the input voltage range for the ADV151-E50?
A1: The input voltage range for the ADV151-E50 is 18 to 26.4 V DC.

Q2: Can the ADV151-E50 be used in dual redundant configurations?
A2: Yes, the ADV151-E50 can be used in dual redundant configurations to enhance system reliability.

Q3: What is the response time of the ADV151-E50?
A3: The input response time of the ADV151-E50 is 8 ms or less for status input.

Q4: What is the maximum allowable input voltage for the ADV151-E50?
A4: The maximum allowable input voltage for the ADV151-E50 is 30.0 V DC.

Q5: Does the ADV151-E50 support pushbutton input functionality?
A5: Yes, the ADV151-E50 supports pushbutton input functionality, including edge detection and counting.

Q6: What are the dimensions and weight of the ADV151-E50?
A6: The dimensions of the ADV151-E50 are 107.5 × 130 × 32.8 mm, and it weighs 0.3 kg.

Q7: What type of external connections does the ADV151-E50 support?
A7: The ADV151-E50 supports pressure clamp terminals, dedicated cables (AKB331), and MIL connector cables.

Q8: Is the ADV151-E50 suitable for use in harsh industrial environments?
A8: Yes, the ADV151-E50 is designed to withstand harsh industrial conditions, with a withstanding voltage of 2 kV AC between input signals and the system.
