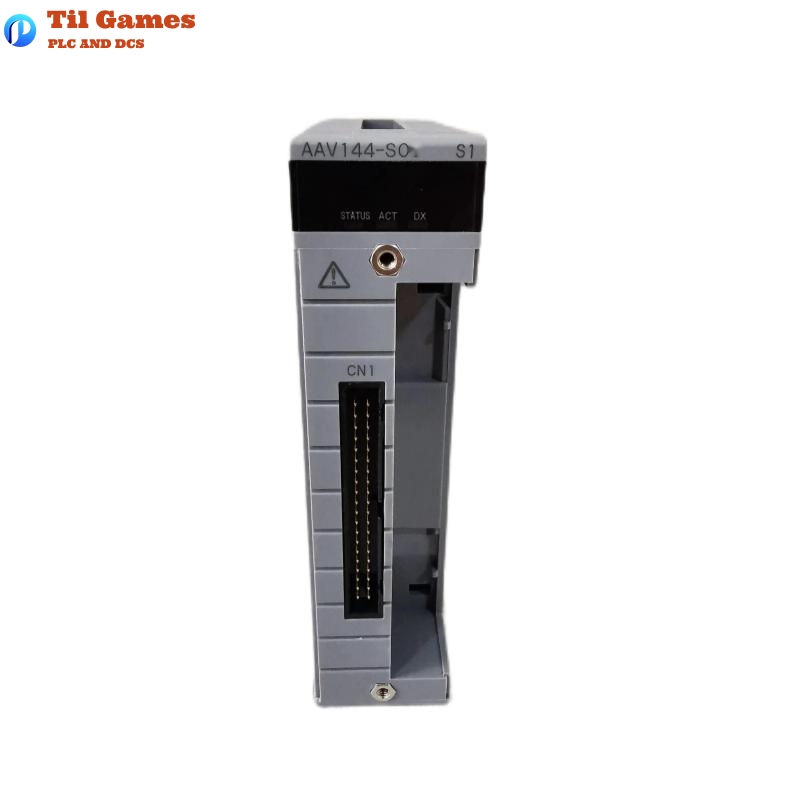

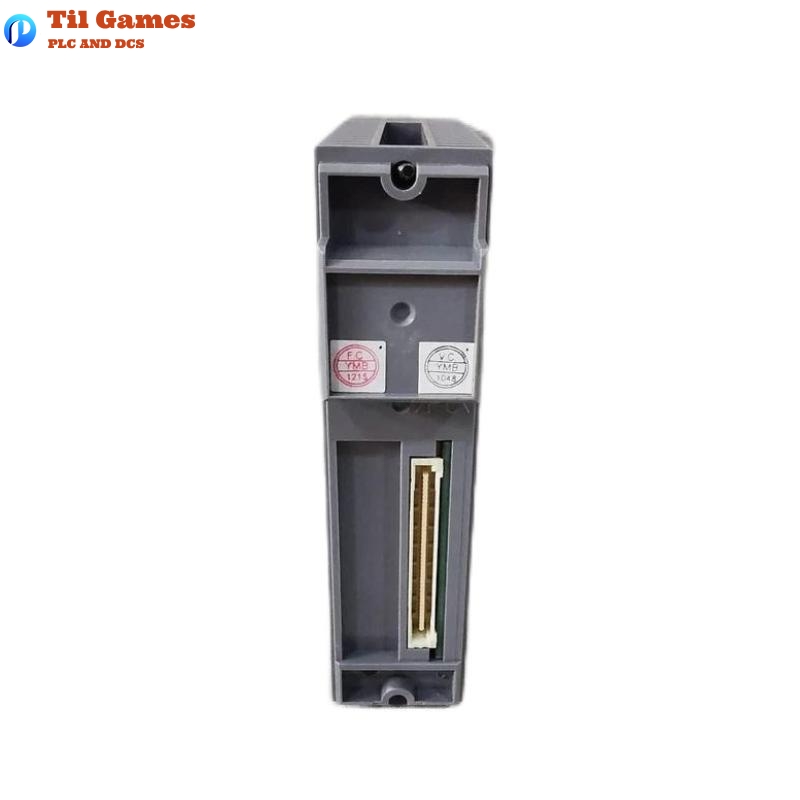

Yokogawa AAV144-S50 Analog Input Module – Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAV144-S50 Analog Input Module |
| Number of Input Channels | 16 Channels |
| Input Signal | 1 to 5 V, -10 to +10 V |
| Allowable Input Voltage | ±30 V |
| Input Resistance (Power ON) | 1 MΩ |
| Input Resistance (Power OFF) | 200 kΩ |
| Accuracy | ±4 mV (1 to 5 V), ±20 mV (-10 to +10 V) |
| Data Update Period | 10 ms |
| Temperature Drift | ±4 mV/10 °C (1 to 5 V), ±20 mV/10 °C (-10 to +10 V) |
| Maximum Current Consumption | 500 mA (5 V DC) |
| Weight | 0.2 kg |
| Dimensions | 107.5 × 130 × 32.8 mm |
| External Communication | Pressure clamp terminal, MIL connector cable |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the input signal range for the AAV144-S50 Analog Input Module?
A1: The module supports input signals from 1 to 5 V and -10 to +10 V.
Q2: How many input channels does the AAV144-S50 have?
A2: The module has 16 input channels.
Q3: What is the accuracy of the AAV144-S50?
A3: The accuracy is ±4 mV for 1 to 5 V inputs and ±20 mV for -10 to +10 V inputs.
Q4: What is the maximum current consumption of the AAV144-S50?
A4: The maximum current consumption is 500 mA when powered by 5 V DC.
Q5: Can the AAV144-S50 module be used in dual-redundant configurations?
A5: Yes, the AAV144-S50 is designed for use in dual-redundant configurations.
Q6: What is the weight of the AAV144-S50 module?
A6: The module weighs 0.2 kg.
Q7: What are the dimensions of the AAV144-S50?
A7: The dimensions of the module are 107.5 × 130 × 32.8 mm.
Q8: What types of external connections can be used with the AAV144-S50?
A8: The module can be connected using pressure clamp terminals or MIL connector cables.
