Technical Specifications
| Parameter | Specification |
|---|---|

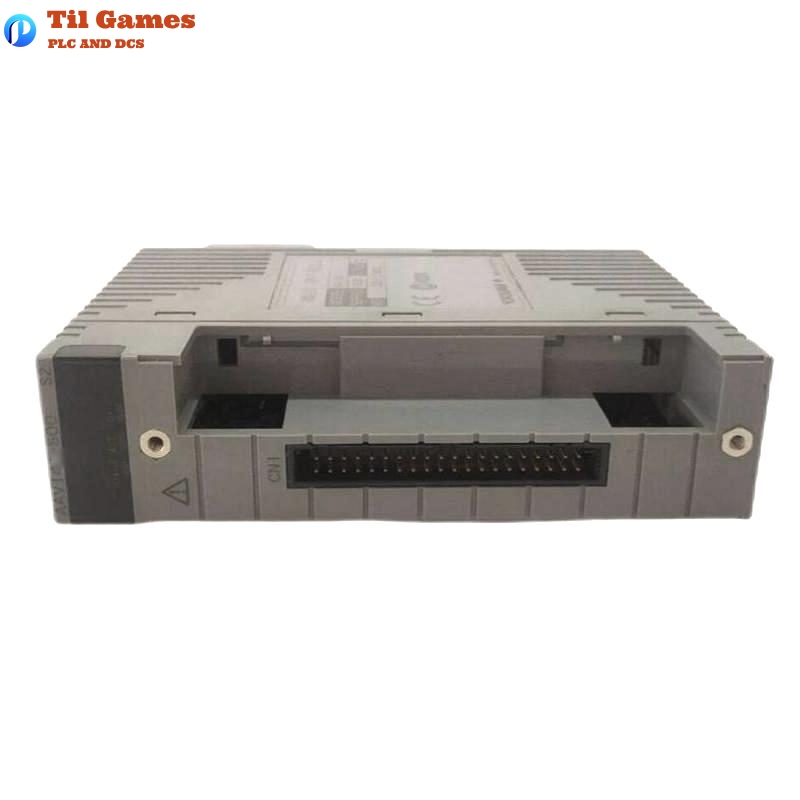

| Model | AAV142-S00 |
| Number of Input Channels | 16 (Non-Isolated, Differential Input) |
| Input Signal | -10 to +10 V DC |
| Allowable Input Voltage | ±13 V |
| Input Resistance | – Power ON: 1 MΩ or larger |
| – Power OFF: 200 kΩ or larger | |
| Accuracy | ±20 mV |
| Data Update Period | 10 ms |
| Step Response Time | 100 ms |
| Drift Due to Ambient Temperature Change | ±20 mV/10 °C |
| Maximum Current Consumption | 350 mA (5 V DC), 480 mA (24 V DC) |
| External Connection | Pressure clamp terminal, KS cable, MIL connector |
| Weight | 0.2 kg |
| Dimensions | 32.8 × 130 × 107.5 mm |
| Transmitter Power Supply | 14.8 V or higher (at 20 mA) |
FAQ
FAQs
Q1: What is the input voltage range for the Yokogawa AAV142-S00 Analog Input Module?
A1: The input voltage range is -10 to +10 V DC.
Q2: How many input channels does the AAV142-S00 have?
A2: The module has 16 input channels.
Q3: What type of input is supported by the AAV142-S00?
A3: It supports differential input for voltage signals.
Q4: What is the maximum current consumption of the AAV142-S00?
A4: The maximum current consumption is 350 mA at 5 V DC and 480 mA at 24 V DC.
Q5: What is the accuracy of the AAV142-S00?
A5: The accuracy is ±20 mV.
Q6: What is the weight of the AAV142-S00?
A6: The module weighs 0.2 kg.
Q7: What are the dimensions of the AAV142-S00?
A7: The dimensions are 32.8 × 130 × 107.5 mm.
Q8: Can the AAV142-S00 be used with different types of transmitters?
A8: Yes, it can be used with 2-wire or 4-wire transmitters, and the setting can be configured for each channel.
