Technical Specifications
| Specification | Value |
|---|---|

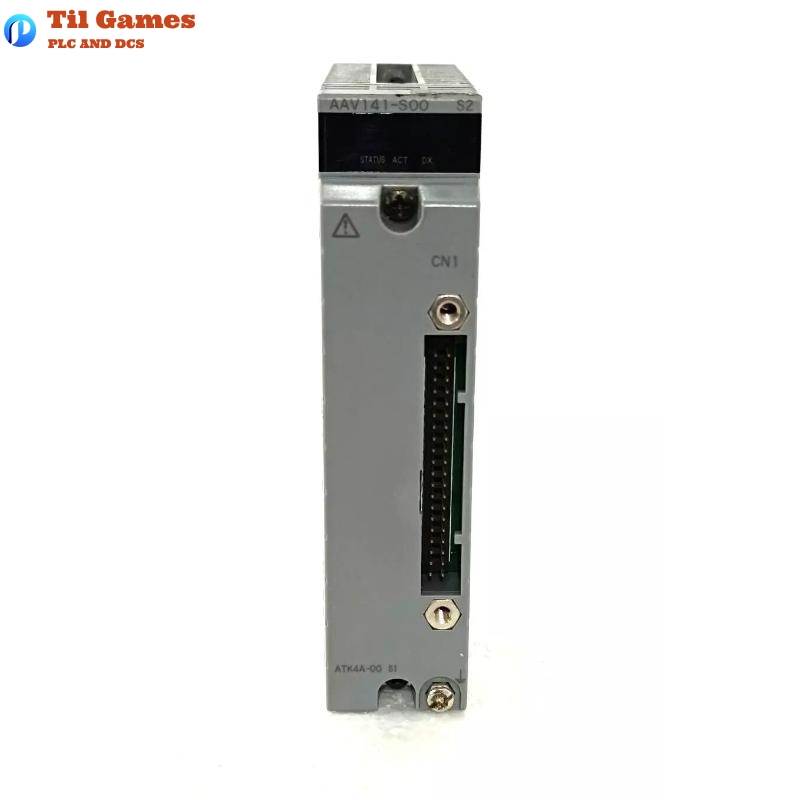

| Model | AAV141-S00 |
| Number of Input Channels | 16, non-isolated (differential input) |
| Input Signal | 1 to 5 V DC |
| Allowable Common Mode Voltage | ±1 V or less |
| Input Resistance (Power ON) | 1 MΩ or larger |
| Accuracy | ±4 mV |
| Data Update Period | 10 ms |
| Step Response Time | 100 ms |
| Transmitter Power Supply | 14.8 V or higher (at 20 mA) |
| Maximum Current Consumption | 350 mA (5 V DC) |
| Weight | 0.2 kg |
| Dimensions | 32.8 × 130 × 107.5 mm |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the input signal range for the AAV141-S00 module?
A1: The AAV141-S00 module accepts a 1 to 5 V DC input signal.
Q2: Can this module handle a common mode voltage?
A2: Yes, the allowable common mode voltage is ±1 V or less.
Q3: How many input channels does the AAV141-S00 module support?
A3: It supports 16 input channels, all non-isolated with differential input.
Q4: What is the accuracy of the AAV141-S00 module?
A4: The module has an accuracy of ±4 mV.
Q5: What is the power supply requirement for transmitters when using this module?
A5: The module requires a transmitter power supply of 14.8 V or higher at 20 mA.
Q6: What is the maximum current consumption of the module?
A6: The maximum current consumption is 350 mA at 5 V DC.
Q7: What are the dimensions of the AAV141-S00 module?
A7: The module has dimensions of 32.8 × 130 × 107.5 mm.
Q8: What is the weight of the AAV141-S00 module?
A8: The weight of the module is 0.2 kg.
