Technical Specifications
| Parameter | Specification |
|---|---|

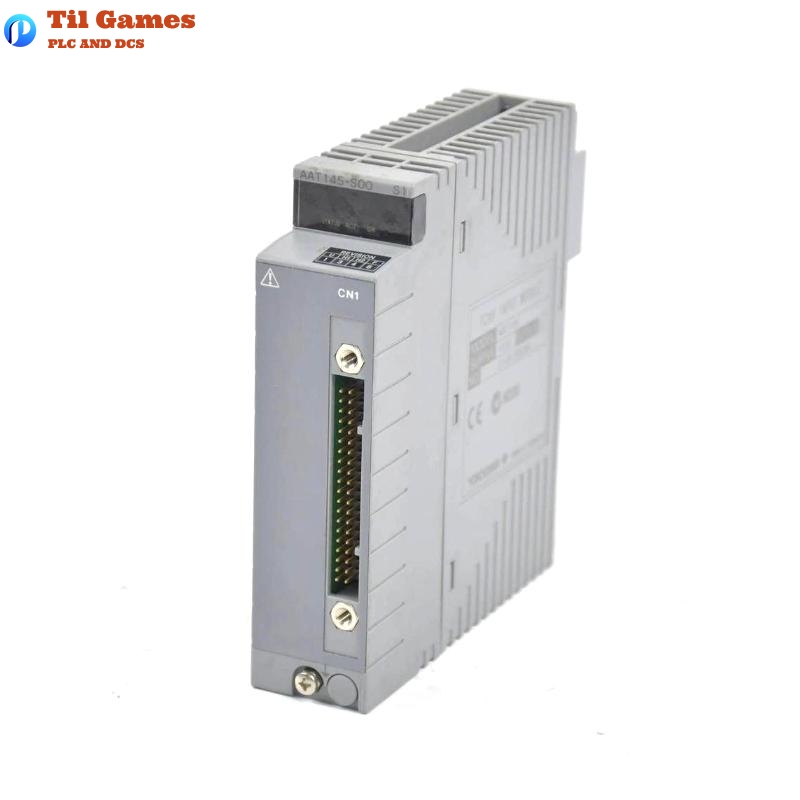

| Model | AAT145-S00 TC/mV Input Module |
| Number of Input Channels | 16, Isolated |
| Input Signal | Thermocouple (TC): JIS C1602:1995, IEC584:1995 Type J, K, E, B, R, S, T, N |
| mV: -100 to 150 mV, -20 to 80 mV | |
| Allowable Input Voltage | ±5 V |
| Withstanding Voltage | Between input and system: 500 V AC (for single card: 1500 V AC), for 1 minute |
| Input Resistance | Power ON: 1 MΩ or larger, Power OFF: 1 MΩ or larger |
| Accuracy | TC: ±40 µV, RTD: ±150 mΩ, mV: ±80 µV for span (-100 to 150 mV), ±30 µV for span (-20 to 80 mV) |
| Allowable Total Resistance of Signal Source Plus Wiring | 1000 Ω or less |
| Temperature Drift | ±80 µV/10°C (for -100 to 150 mV input), ±30 µV/10°C (for -20 to 80 mV input), ±120 mΩ/10°C (RTD input) |
| Reference Junction Compensation Accuracy | ±1°C |
| Measurement Current | RTD: 1 mA |
| Data Update Period | 1 s |
| Burn-out Detection | Available (Detection time: 60 s) |
| Maximum Current Consumption | 450 mA (5 V DC) |
| Weight | 0.3 kg |
| External Connection | Pressure clamp terminal |
| Dimensions | 32.8 × 130 × 127.2 mm |
FAQ
FAQ
Q1: What types of input signals can the AAT145-S00 module handle?
A1: The module can handle thermocouple (TC) signals such as J, K, E, B, R, S, T, N types, as well as mV signals ranging from -100 to 150 mV and -20 to 80 mV.
Q2: What is the maximum allowable input voltage for this module?
A2: The maximum allowable input voltage is ±5 V.
Q3: How accurate is the AAT145-S00 in reading input signals?
A3: The module’s accuracy for TC signals is ±40 µV, for mV signals, it is ±80 µV for spans between -100 to 150 mV and ±30 µV for spans between -20 to 80 mV. For RTD inputs, the accuracy is ±150 mΩ.
Q4: What is the weight of the module?
A4: The module weighs 0.3 kg.
Q5: How does the module handle temperature drift?
A5: The module experiences a temperature drift of ±80 µV/10°C for -100 to 150 mV input, ±30 µV/10°C for TC signals between -20 to 80 mV, and ±120 mΩ/10°C for RTD input.
Q6: Can I use this module in dual-redundant configurations?
A6: Yes, the AAT145-S00 TC/mV Input Module can be used in dual-redundant configurations.
Q7: What is the maximum current consumption of the AAT145-S00?
A7: The maximum current consumption is 450 mA when powered by 5 V DC.
Q8: How long does it take for the module to update the data?
A8: The data update period is 1 second.
