Technical Specifications:
| Specification | Details |
|---|---|

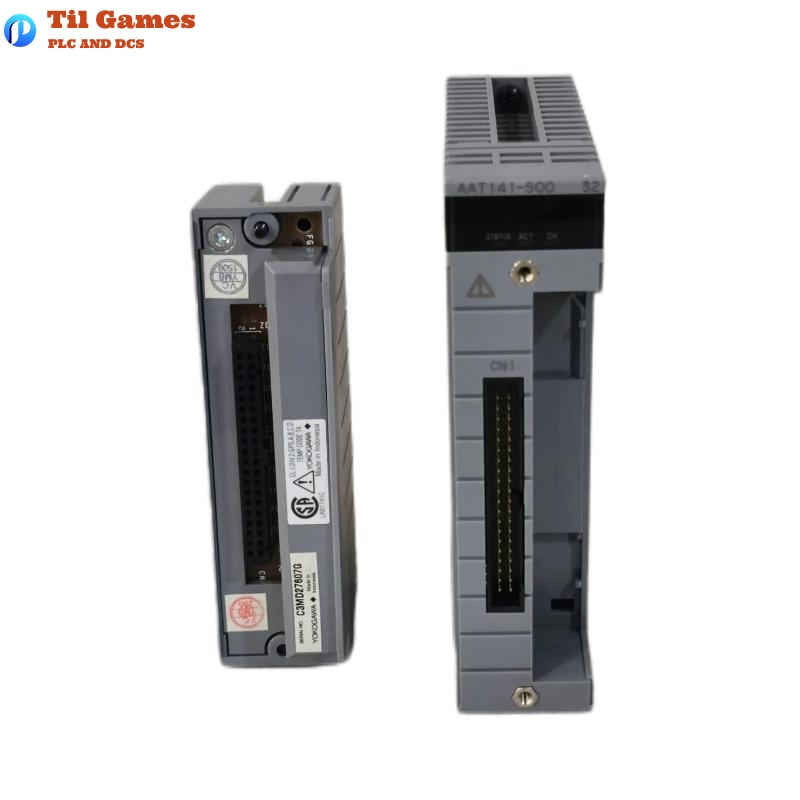

| Model | AAT141 TC/mV Input Module |
| Number of Input Channels | 16, Isolated |
| Input Signals | Thermocouple (TC): J, K, E, B, R, S, T, N mV: -100 to 150 mV, -20 to 80 mV |
| Allowable Input Voltage | ±5 V |
| Input Resistance | Power ON: 2 MΩ or larger Power OFF: 2 MΩ or larger |
| Accuracy | TC: ±30 µV mV: ±80 µV for span (-100 to 150 mV), ±30 µV for span (-20 to 80 mV) |
| Total Resistance of Signal Source + Wiring | 1000 Ω or less for TC, 40 Ω or less for mV |
| Reference Junction Compensation | Accuracy: Within ±1 °C |
| Temperature Drift | TC: ±30 µV/10 °C mV: ±80 µV/10 °C |
| Data Update Period | 1 second |
| Burn-out Detection | Available (UP/DOWN, Detection Time: 60 s) |
| Maximum Current Consumption | 450 mA (5 V DC) |
| Weight | 0.2 kg |
| External Connection | Pressure clamp terminal |
| Dimensions | 32.8 × 130 × 107.5 mm |
FAQ
FAQ:
-
Q: What type of input signals can the AAT141 accept?
A: The AAT141 module accepts input signals from thermocouples (J, K, E, B, R, S, T, N) and millivolt (mV) ranges from -100 to 150 mV or -20 to 80 mV. -
Q: How is the input resistance for the AAT141 module specified?
A: The input resistance is 2 MΩ or larger when powered on, and 2 MΩ or larger when powered off. -
Q: What is the accuracy of the AAT141 module for thermocouple and mV inputs?
A: The accuracy for thermocouple inputs is ±30 µV. For mV inputs, it is ±80 µV for spans between -100 to 150 mV and ±30 µV for spans between -20 to 80 mV. -
Q: Can the AAT141 detect burn-out?
A: Yes, the AAT141 module supports burn-out detection with a detection time of 60 seconds, which can be set as UP or DOWN. -
Q: What is the data update period for the AAT141?
A: The data update period is 1 second for this module. -
Q: What is the temperature drift specification for the AAT141 module?
A: For thermocouple inputs, the temperature drift is ±30 µV/10 °C. For mV inputs, it is ±80 µV/10 °C. -
Q: What is the maximum current consumption of the AAT141?
A: The maximum current consumption is 450 mA at 5 V DC. -
Q: What are the dimensions of the AAT141 module?
A: The dimensions of the AAT141 module are 32.8 × 130 × 107.5 mm.
