Technical Specifications
| Parameter | Value |
|---|---|

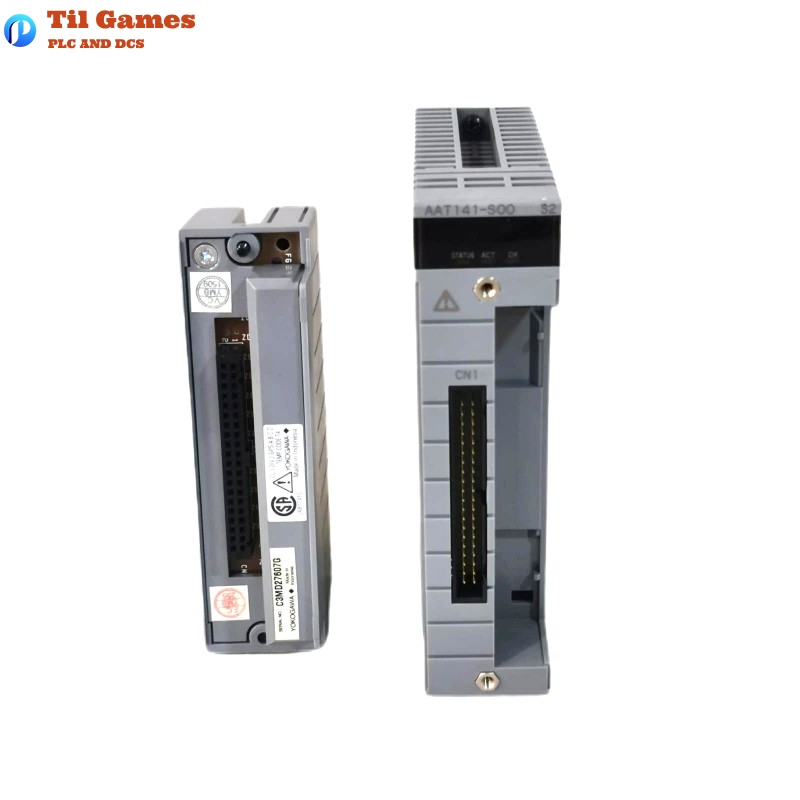

| Model | AAT141-S00 |
| Number of Input Channels | 16, isolated |
| Input Signals | TC: Type J, K, E, B, R, S, T, N; mV: -100 to 150 mV, -20 to 80 mV |
| Allowable Input Voltage | ±5 V |
| Input Resistance | Power ON: 2 MΩ or larger, Power OFF: 2 MΩ or larger |
| Accuracy | TC: ±30 µV, mV: ±80 µV for span (-100 to 150 mV), ±30 µV for span (-20 to 80 mV) |
| Temperature Drift | ±80 µV/10 °C (TC: -100 to 150 mV input), ±30 µV/10 °C (TC/-20 to 80 mV input) |
| Reference Junction Compensation Accuracy | ±1 °C |
| Data Update Period | 1 second |
| Burn-out Detection | Available for all channels |
| Maximum Current Consumption | 450 mA (5 V DC) |
| Weight | 0.2 kg |
| Dimensions (W x D x H) | 107.5 × 32.8 × 130 mm |
| External Connection | Pressure clamp terminal |
FAQ
FAQs
Q1: What type of input signals does the AAT141-S00 module support?
A1: The AAT141-S00 module supports thermocouple (TC) input signals for Type J, K, E, B, R, S, T, and N, as well as mV signals ranging from -100 to 150 mV and -20 to 80 mV.
Q2: How many channels does the AAT141-S00 have?
A2: The module has 16 isolated input channels.
Q3: What is the maximum allowable voltage for input signals?
A3: The maximum allowable input voltage is ±5 V.
Q4: What is the accuracy of the AAT141-S00 module?
A4: The accuracy is ±30 µV for thermocouple signals and ±80 µV for mV signals with a span of -100 to 150 mV.
Q5: How does the module handle temperature drift?
A5: The temperature drift for thermocouple signals is ±80 µV/10 °C (for the -100 to 150 mV input) and ±30 µV/10 °C for TC signals (-20 to 80 mV input).
Q6: What is the maximum current consumption of the module?
A6: The maximum current consumption is 450 mA at 5 V DC.
Q7: How long does the data update period take?
A7: The data update period is 1 second.
Q8: What is the weight of the module?
A8: The weight of the module is 0.2 kg.
