Technical Specifications
| Parameter | Value |
|---|---|

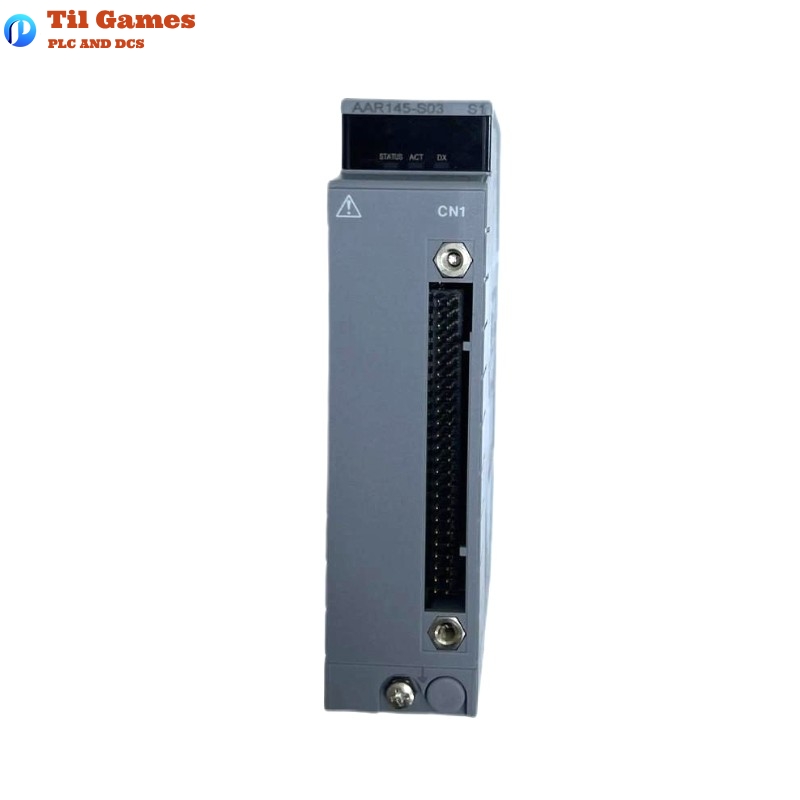

| Model | AAR145-S03 |
| Number of Input Channels | 16, isolated channels |
| Input Signals | RTD (Pt100 3-wire), POT |
| Input Voltage | ±5 V |
| Input Resistance | Power ON: 1 MΩ or larger |
| Accuracy | RTD: ±150 mΩ, POT: ±0.2%/FS |
| Allowable Total Resistance | 150 Ω or less (wiring resistance per wire) |
| Reference Junction Compensation Accuracy | ±1 °C |
| Measurement Current | RTD: 1 mA |
| Data Update Period | 1 second |
| Burn-out Detection | Available, detection time: 60s |
| Temperature Drift | RTD: ±0.3 Ω/10 °C, POT: ±0.4%/10 °C |
| Maximum Current Consumption | 350 mA (5 V DC) |
| Weight | 0.3 kg |
| External Connection | Dedicated cable (KS1/AKB335) |
| External Dimensions (LxWxH) | 130 x 127.2 x 32.8 mm |
FAQ
FAQ
Q1: What input signals does the AAR145-S03 RTD/POT Input Module support?
A1: The module supports RTD (Pt100 3-wire) and POT input signals.
Q2: What is the input voltage for each input channel?
A2: The input voltage is ±5 V.
Q3: What is the maximum current consumption for the AAR145-S03 module?
A3: The maximum current consumption is 350 mA (5 V DC).
Q4: Does the module support burn-out detection?
A4: Yes, the module supports burn-out detection with a detection time of 60 seconds.
Q5: What is the data update period for this module?
A5: The data update period is 1 second.
Q6: What is the temperature drift for the AAR145-S03 module?
A6: For RTD input, the temperature drift is ±0.3 Ω/10°C; for POT input, the temperature drift is ±0.4%/10°C.
Q7: What is the input resistance for the AAR145-S03 module?
A7: The input resistance is 1 MΩ or greater when powered on.
Q8: What external connections are supported by the AAR145-S03 module?
A8: The module supports external connections using dedicated cables (KS1/AKB335).
