Technical Specifications
| Item | Specification |
|---|---|
| Number of Input Channels | 16 isolated channels |
| Input Signal | RTD: Pt100 (3-wire type); POT: 100Ω to 10kΩ (Total Resistance) |
| Input Voltage | ±5 V |
| Withstand Voltage | Between input and system: 500 V AC (1.5kV for single card), 1 minute |
| Input Resistance | Power ON: 1 MΩ or greater; Power OFF: 1 MΩ or greater |
| Accuracy | RTD: ±150 mΩ; POT: ±0.2% FS |
| Total Resistance and Wiring Resistance | RTD: 1000Ω or less; POT: 150Ω or less (per wire) |
| Reference Junction Compensation Accuracy | ±1°C |
| Temperature Drift | RTD: ±0.3Ω/10°C; POT: ±0.4%/10°C |
| Data Update Period | 1 second |
| Burn-out Detection | Available, detection time: 60 seconds |
| Maximum Current Consumption | 350 mA (5V DC) |
| Weight | 0.3 kg |
| Dimensions | 130 x 127.2 x 32.8 mm |
| Weight | 0.3 kg |
FAQ
FAQs

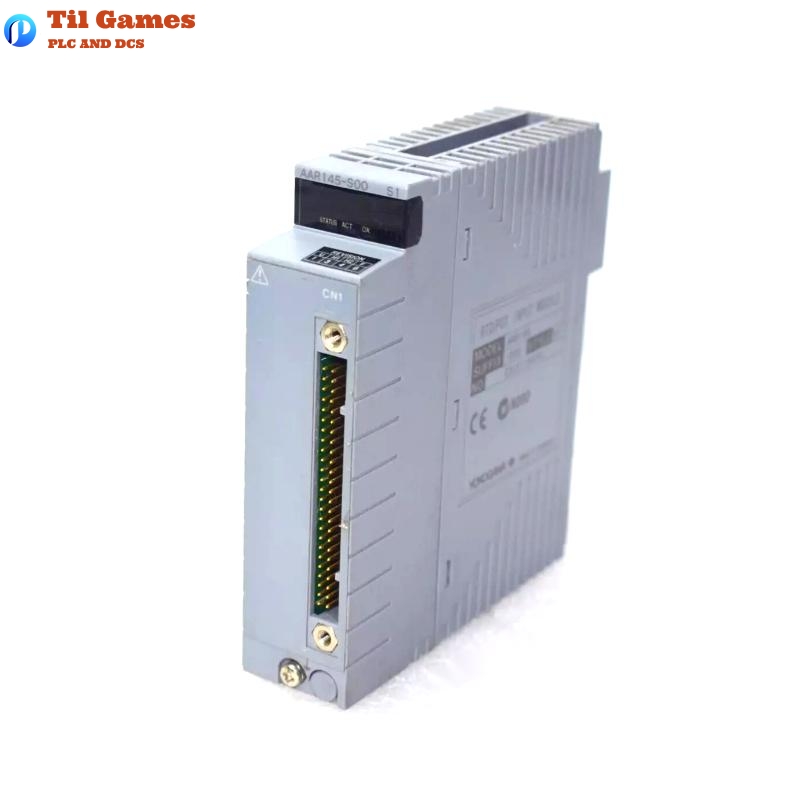

Q1: What input signals does the Yokogawa AAR145-S00 S1 RTD/POT Input Module support?
A1: The module supports RTD (Pt100, 3-wire) and POT (100Ω to 10kΩ total resistance) input signals.
Q2: What is the input voltage for this module?
A2: The input voltage is ±5 V.
Q3: What is the withstand voltage of this module?
A3: The withstand voltage between input and system is 500 V AC (1.5kV for single card), for 1 minute.
Q4: How is the input resistance of this module?
A4: The input resistance is 1 MΩ or greater when powered on; 1 MΩ or greater when powered off.
Q5: What is the accuracy for RTD and POT?
A5: The accuracy is ±150 mΩ for RTD and ±0.2% FS for POT.
Q6: What is the temperature drift of the module?
A6: The temperature drift is ±0.3Ω/10°C for RTD and ±0.4%/10°C for POT.
Q7: What is the data update period for this module?
A7: The data update period is 1 second.
Q8: What is the maximum current consumption of the module?
A8: The maximum current consumption is 350 mA (5V DC).
