Technical Specifications
| Item | Specification |
|---|---|

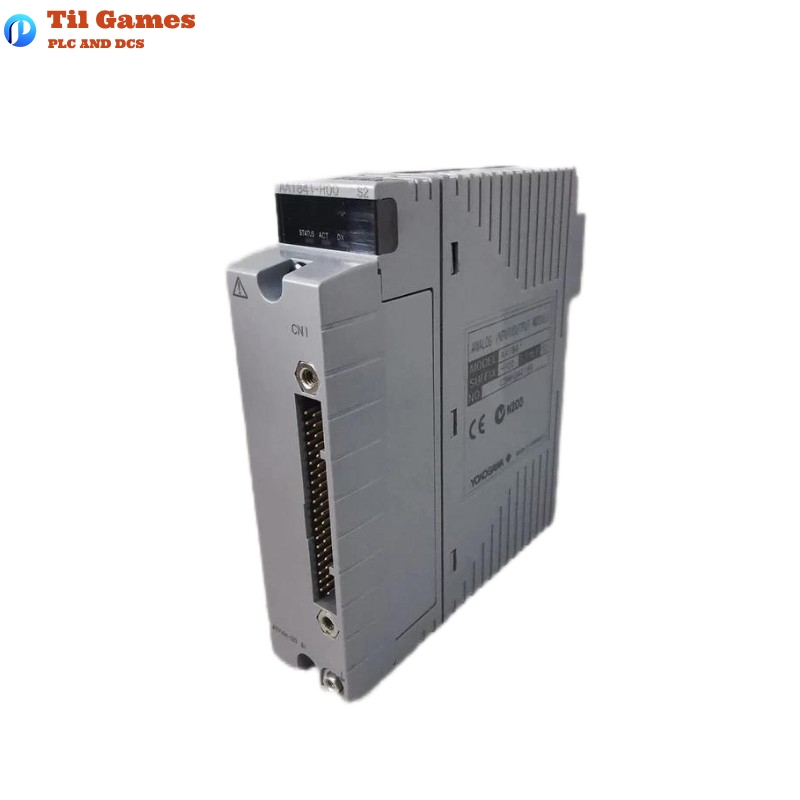

| Model | AAI841-H00 (8-channel input / 8-channel output, current, non-isolated) |
| Input Signal | 4 to 20 mA DC |
| Output Signal | 4 to 20 mA DC |
| Number of Channels | 8 input + 8 output channels (total 16 I/O) |
| Input Resistance (Power ON) | 400 Ω at 20 mA, 1000 Ω at 4 mA |
| Input Resistance (Power OFF) | 500 kΩ or more |
| Output Load Resistance | 0 to 750 Ω |
| Accuracy | Input: ±16 µA; Output: ±48 µA |
| Step Response Time (Input) | 100 ms |
| Step Response Time (Output) | 40 ms |
| Data Update Period | 10 ms |
| Transmitter Power Supply | 14.8 V or higher (at 20 mA), 26.4 V or less (at 0 mA) |
| Circuit-open Detection | Output open-circuit detection at < 0.65 mA |
| Temperature Drift | ±0.1 % per 10 °C |
| Power Consumption | 310 mA (5 V DC), 500 mA (24 V DC) |
| HART Communication | Supported (Current input/output only) |
| External Connection Options | Pressure clamp terminal, KS cable, MIL connector cable |
| Dimensions | 107.5 mm (H) × 32.8 mm (W) × 130 mm (D) |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of signals can the AAI841-H00 handle?
A1: The module supports 4 to 20 mA DC for both input and output. It is designed for analog current loop communication.
Q2: Is the AAI841-H00 equipped with HART communication capability?
A2: Yes, the AAI841-H00 supports HART communication for both input and output channels, provided it is installed in a compatible system.
Q3: Can the AAI841-H00 be used in a redundant configuration?
A3: Yes, it is designed to support dual-redundant configuration for enhanced reliability.
Q4: What is the total number of channels available on the AAI841-H00?
A4: The module provides a total of 16 channels: 8 for input and 8 for output.
Q5: What are the typical response times for this module?
A5: The step response time is 100 ms for inputs and 40 ms for outputs, with a data update period of 10 ms.
Q6: What load resistance is allowable on the output side?
A6: The module supports an output load resistance range from 0 to 750 Ω.
Q7: Can the AAI841-H00 be used in intrinsically safe applications?
A7: A Zener barrier is not allowed. Use an isolation barrier when deploying in intrinsically safe environments.
Q8: What is the operating temperature drift for the module?
A8: The drift due to temperature change is ±0.1% per 10 °C, which ensures stable performance over varying temperatures.
