Technical Specifications
| Item | Specification |
|---|---|

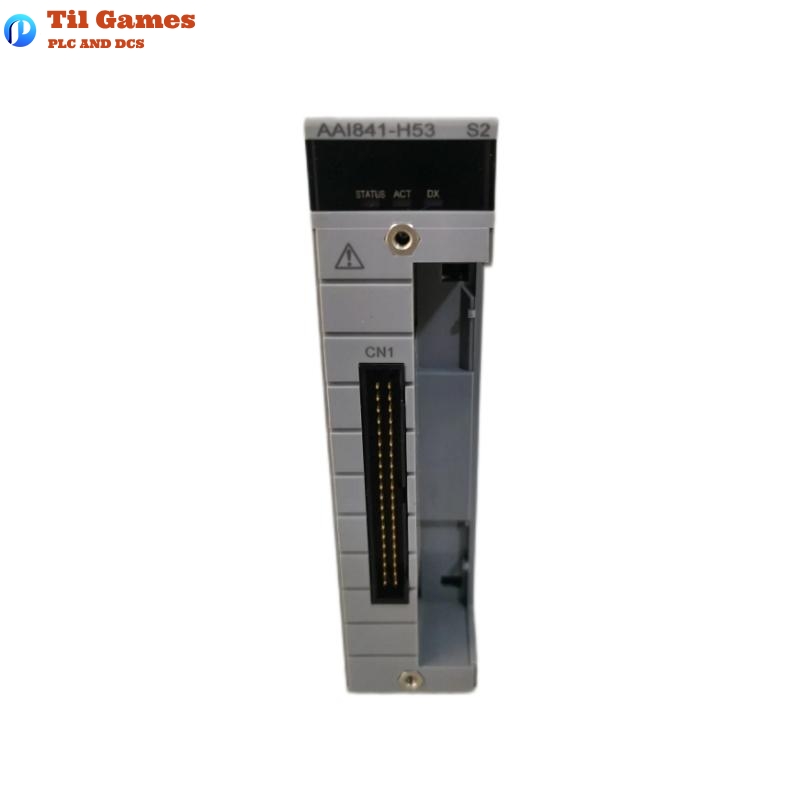

| Model | AAI841 |
| Type | Analog I/O Module (non-isolated) |
| Input Channels | 8 channels (4–20 mA current input) |
| Output Channels | 8 channels (4–20 mA current output) |
| Input Resistance (Power ON) | 400 Ω (at 20 mA) to 1000 Ω (at 4 mA) |
| Input Resistance (Power OFF) | 500 kΩ or larger |
| Output Load Resistance | 0 to 750 Ω |
| Accuracy (Input) | ±16 µA |
| Accuracy (Output) | ±48 µA |
| Step Response Time (Input) | 100 ms |
| Step Response Time (Output) | 40 ms |
| Data Update Period | 10 ms |
| Circuit-Open Detection | Less than 0.65 mA |
| Transmitter Power Supply | 14.8 V or higher (at 20 mA), 26.4 V or less (at 0 mA), Output current limit: 27 mA |
| Setting of Transmitter Type | Selectable per channel via setting pin (2-wire / 4-wire) |
| Temperature Drift | ±0.1 % / 10 °C |
| Max Current Consumption | 310 mA (5 V DC), 500 mA (24 V DC) |
| External Connection | Pressure clamp terminal, KS cable, MIL connector cable |
| HART Communication | Available (current input/output only, requires firmware rev.2 or later) |
| Dimensions | 107.5 mm (H) × 32.8 mm (W) × 130 mm (D) |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of signals does the AAI841 module handle?
A1: The AAI841 handles both input and output signals in the range of 4 to 20 mA DC. It supports 8 channels for input and 8 channels for output.
Q2: Is the AAI841 module isolated?
A2: No, the AAI841 is a non-isolated analog I/O module.
Q3: Can the module be used in redundant configurations?
A3: Yes, the AAI841 supports dual-redundant configurations when used with appropriate node units.
Q4: Does the AAI841 support HART communication?
A4: Yes, HART communication is supported for current input and output when used with ER bus node units and EB401 firmware revision 2 or later.
Q5: What is the maximum load resistance allowed for analog outputs?
A5: The allowable load resistance for each analog output channel is from 0 to 750 Ω.
Q6: What are the environmental requirements for using the transmitter power supply?
A6: The transmitter power supply provides 14.8 V minimum at 20 mA and 26.4 V maximum at 0 mA. Voltage drop due to wiring should be considered in system design.
Q7: Is the input mode configurable per channel?
A7: Yes, each input channel can be configured for either 2-wire or 4-wire transmitters using setting pins.
Q8: What precautions must be taken when using the module in intrinsically safe environments?
A8: Zener barriers must not be used with the AAI841. Only isolation barriers are acceptable for intrinsically safe applications.
