Technical Specifications
| Item | Specification |
|---|---|

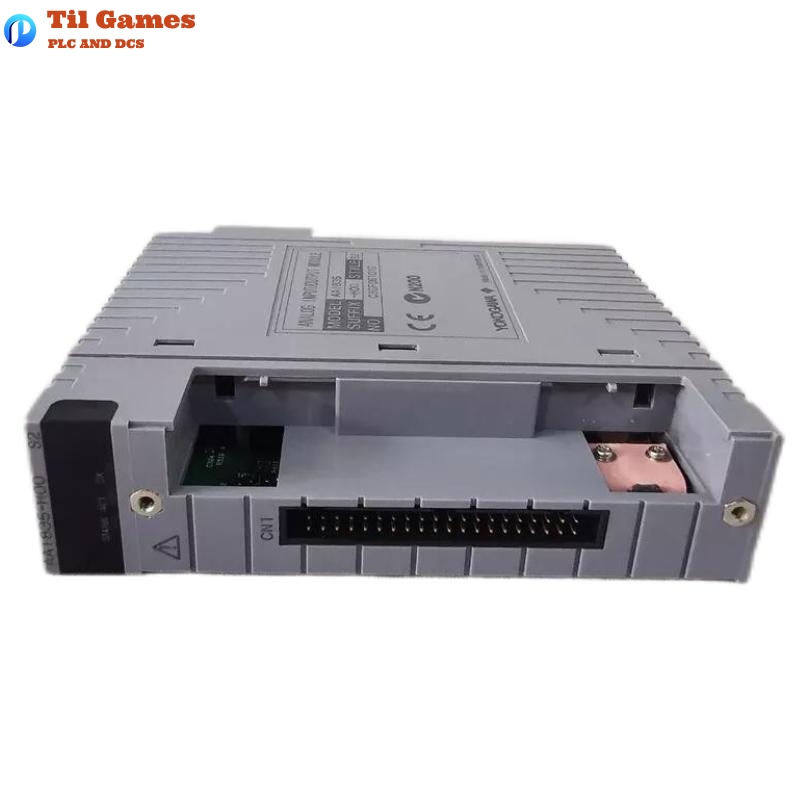

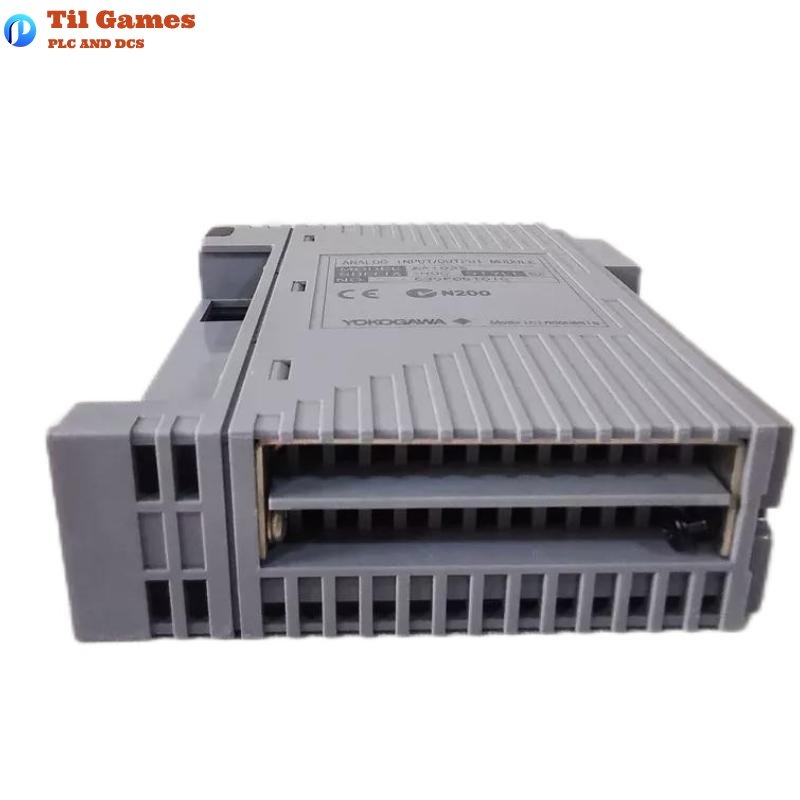

| Model | AAI835-H00 |
| Function | Analog I/O Module with HART communication, isolated channels |
| I/O Channels | 4-channel input / 4-channel output |
| Signal Type | Input: 4–20 mA DC Output: 4–20 mA DC |
| HART Communication | Supported (HART Protocol Revision 5.7) |
| Input Resistance (ON) | 290 Ω (at 20 mA) to 450 Ω (at 4 mA) |
| Input Resistance (OFF) | 500 kΩ or higher |
| Output Load Resistance | 0 to 750 Ω (200 to 750 Ω at 60–70°C environment) |
| Open Circuit Detection | Less than 0.65 mA |
| Accuracy | Input: ±16 µA Output: ±48 µA |
| Data Update Period | 10 ms |
| Transmitter Power Supply | 15.0 V or higher (at 20 mA), 29.3 V or less (at 0 mA) |
| Temperature Drift | ±16 µA/10°C |
| Withstanding Voltage | 500 V AC for 1 min (Between I/O and system, and between channels) |
| Max Current Consumption | 360 mA (5 V DC), 450 mA (24 V DC) |
| External Connections | Pressure clamp terminal, MIL connector, KS1 cable |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of signals does the AAI835-H00 module handle?
A1: The AAI835-H00 module handles analog current signals in the range of 4 to 20 mA for both input and output.
Q2: Is the AAI835-H00 module equipped with HART communication capability?
A2: Yes, it supports HART communication, including variable data collection via HART Command #3.
Q3: Are the input and output channels electrically isolated?
A3: Yes, each input and output channel is isolated from the system and from other channels.
Q4: What is the acceptable load resistance for the analog output?
A4: The module supports a load resistance of 0 to 750 Ω. For ambient temperatures between 60–70°C, it supports 200 to 750 Ω.
Q5: Can the module be used in dual-redundant configurations?
A5: Yes, it is designed to be used in dual-redundant configurations for improved reliability.
Q6: What happens when an open circuit is detected in an output channel?
A6: An open circuit condition is identified if the current falls below 0.65 mA, enabling fault detection.
Q7: What is the recommended transmitter power supply specification?
A7: The module supplies 15.0 V or higher at 20 mA and up to 29.3 V at 0 mA to support 2-wire transmitters.
Q8: Is the use of Zener barriers allowed with the AAI835-H00?
A8: No, Zener barriers are not allowed. Use isolation barriers when required in intrinsically safe applications.
