Technical Specifications

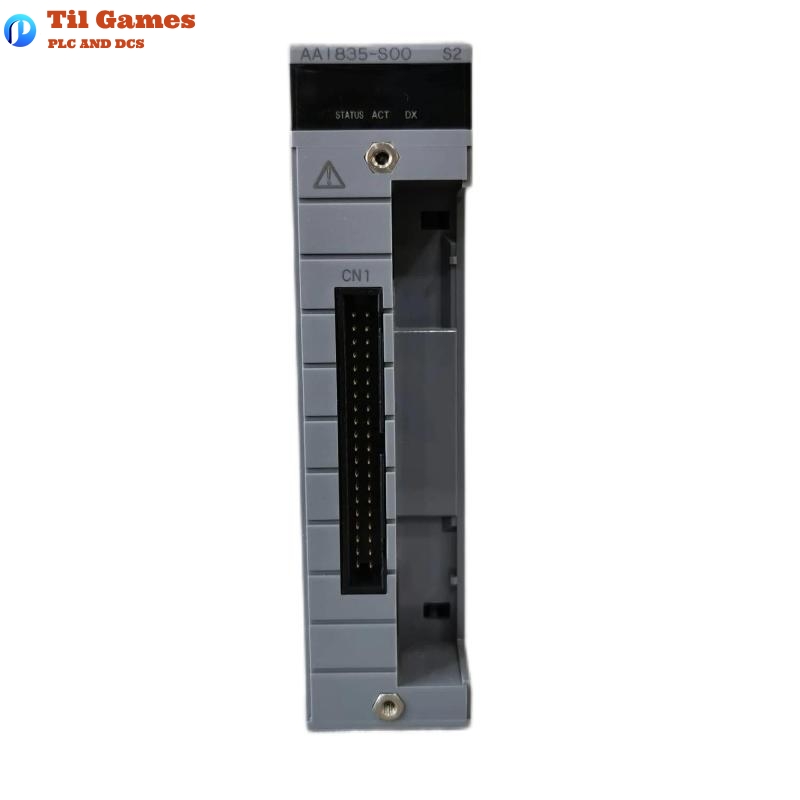

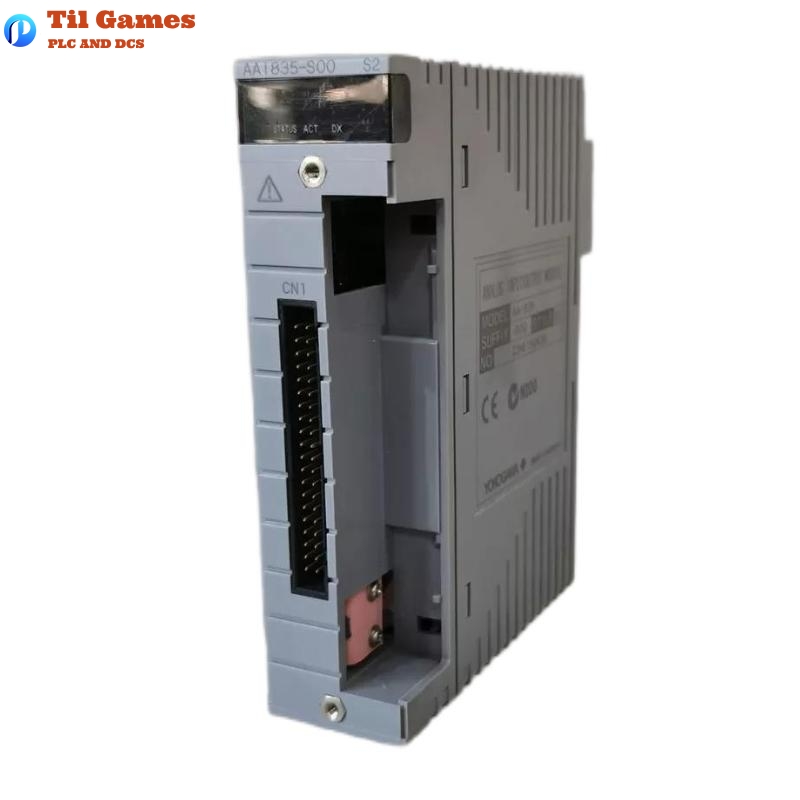

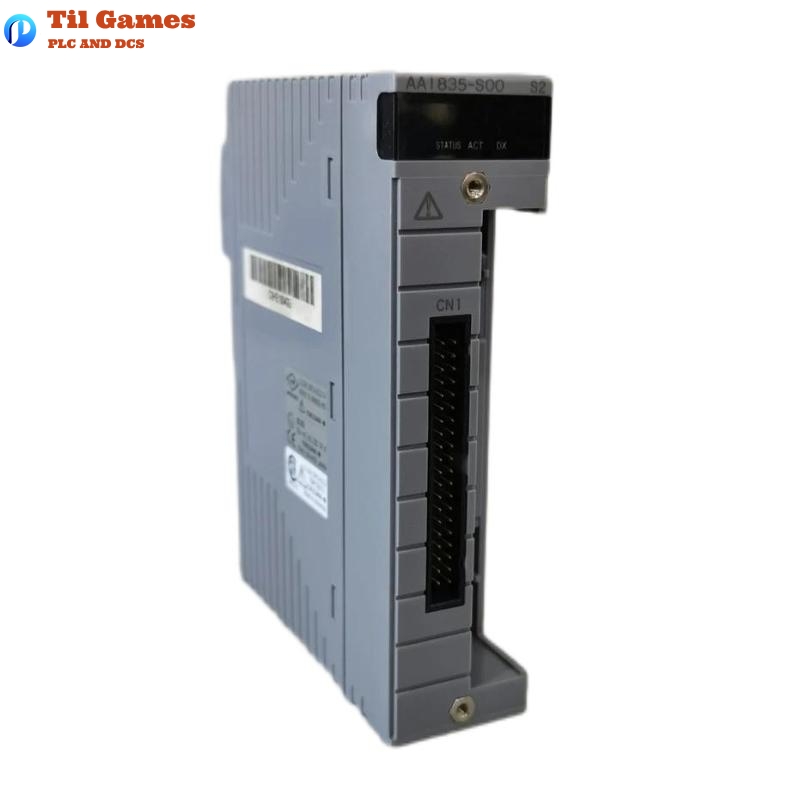

The following table provides the key parameters for the Yokogawa AAI835 Analog I/O Module, which features 4 isolated input and 4 isolated output channels supporting 4–20 mA signals.
| Item | Specification |
|---|---|
| Model | AAI835 |
| Number of Channels | 4-channel input / 4-channel output, isolated channels |
| Signal Type | Input: 4 to 20 mA DC Output: 4 to 20 mA DC |
| Allowable Input Current | 25 mA |
| Allowable Load Resistance | 0 to 750 Ω |
| Circuit-Open Detection | Less than 0.65 mA |
| Input Resistance (Power ON) | 290 Ω (at 20 mA) to 450 Ω (at 4 mA) |
| Input Resistance (Power OFF) | 500 kΩ or larger |
| Accuracy | Input: ±16 µA Output: ±48 µA |
| Data Update Period | 10 ms |
| Transmitter Power Supply | 15.0 V or higher (at 20 mA) 29.3 V or less (at 0 mA) |
| Temperature Drift | ±16 µA/10 °C |
| Withstanding Voltage | 500 V AC, 1 min (system to channel & channel to channel) |
| HART Communication | Available |
| Maximum Current Consumption | 360 mA (5 V DC), 450 mA (24 V DC) |
| External Connection | Pressure clamp terminal, MIL connector cable, KS1 cable |
| Dimensions (H × W × D) | 107.5 × 32.8 × 130 mm |
| Weight | 0.3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of signals does the AAI835 module support?
A1: The AAI835 supports 4 to 20 mA DC signals for both input and output.
Q2: Are the input and output channels on the AAI835 electrically isolated?
A2: Yes, all input and output channels are fully isolated from each other and from the system.
Q3: Can the AAI835 module be used in a dual-redundant configuration?
A3: Yes, the AAI835 is designed for use in dual-redundant systems for enhanced reliability.
Q4: What is the accuracy of the AAI835 module?
A4: The input accuracy is ±16 µA and the output accuracy is ±48 µA.
Q5: Does the AAI835 module support HART communication?
A5: Yes, HART communication is supported when the module is installed in compatible ER bus node units.
Q6: What is the allowable load resistance for the output channels?
A6: The output channels support load resistances ranging from 0 to 750 Ω.
Q7: What kind of external connections are available for the AAI835?
A7: It supports pressure clamp terminals, MIL connector cables, and dedicated KS1 cables.
Q8: What precautions should be taken regarding intrinsic safety?
A8: Zener barriers must not be used. For intrinsically safe applications, isolation barriers should be applied.
