Technical Specifications

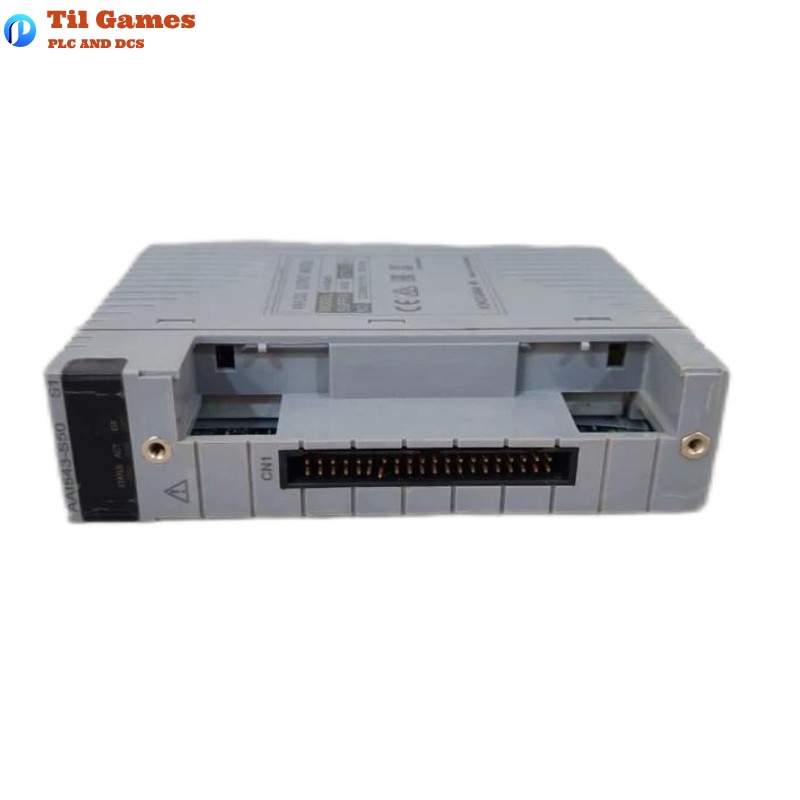

| Item | Specification |
|---|---|
| Model | AAI543-S50 |
| Output Channels | 16, isolated |
| Output Signal | 4 to 20 mA DC |
| Redundancy | Supports dual-redundant configuration |
| Switch-Over Response | Standard |
| Withstanding Voltage | 1500 V AC between output and system, for 1 minute |
| Allowable Load Resistance | 0 to 750 Ω |
| Circuit-Open Detection | Less than 0.65 mA |
| Accuracy | ±48 µA |
| Data Update Period | 10 ms |
| Temperature Drift | ±16 µA per 10 °C |
| Maximum Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| External Connections | Pressure clamp terminal, MIL connector, KS1 cable |
| HART Communication | Supported |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many output channels does the AAI543-S50 module have?
A1: It provides 16 isolated analog output channels, each supporting 4 to 20 mA DC signal.
Q2: Can this module be used in a redundant configuration?
A2: Yes, it supports dual-redundant configuration for enhanced reliability.
Q3: What is the output accuracy of this module?
A3: The output accuracy is ±48 microamperes under standard conditions.
Q4: Is HART communication supported by this module?
A4: Yes, the AAI543-S50 supports HART communication, enabling interaction with HART-compatible field devices.
Q5: What is the allowable load resistance range for the analog outputs?
A5: The outputs can drive loads from 0 up to 750 ohms.
Q6: What happens during switch-over in a redundant setup?
A6: For the standard switch-over model like AAI543-S50, the output may briefly drop below 4 mA for up to 100 milliseconds during switchover.
Q7: Is the module isolated from the system?
A7: Yes, there is galvanic isolation between the output channels and the system, rated at 1500 V AC for one minute.
Q8: What is the size and weight of this module?
A8: The physical dimensions are 107.5 mm × 32.8 mm × 130 mm, and the module weighs approximately 0.4 kg.
