Technical Specifications
| Item | Specification |
|---|---|

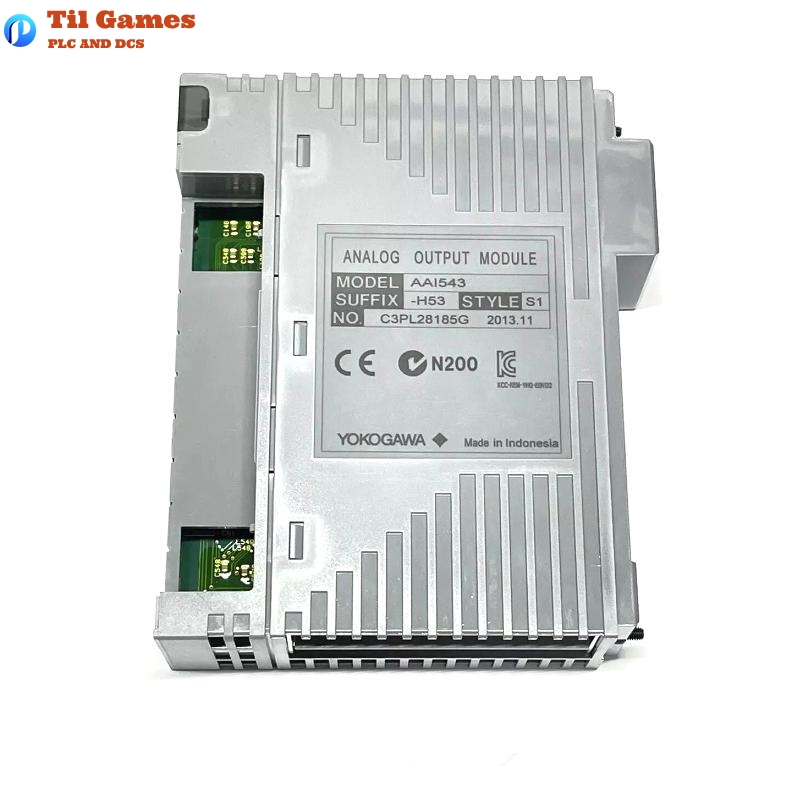

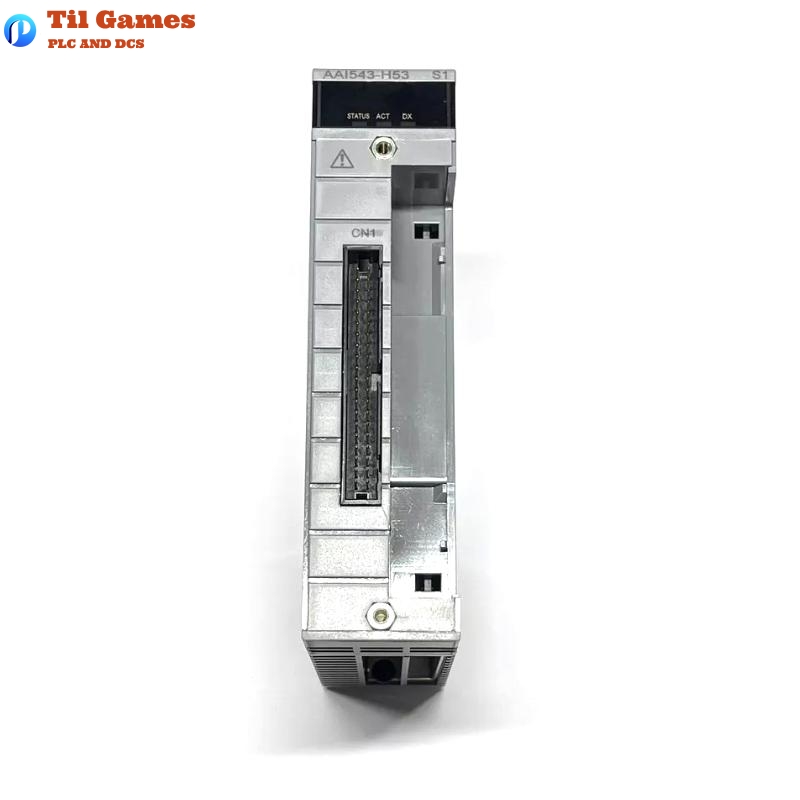

| Model | AAI543-H53 |
| Function | Analog Output Module (Current Output, Isolated) |
| Number of Channels | 16 isolated channels |
| Output Signal | 4 to 20 mA DC |
| Load Resistance Range | 0 to 750 Ω |
| Circuit-Open Detection | < 0.65 mA |
| Accuracy | ±48 µA |
| Data Update Period | 10 ms |
| Drift (Ambient Temp Change) | ±16 µA/10 °C |
| Withstanding Voltage | 1500 V AC between output and system, for 1 min |
| HART Communication | Supported (requires EB401 firmware rev.2 or later) |
| Redundancy Support | Yes (Standard or Fast Switch-over Options) |
| Max Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| External Connection | Pressure clamp terminal, MIL connector, KS1 cable |
| Dimensions (H × W × D) | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of output does the AAI543-H53 provide?
A1: It provides 4 to 20 mA analog current output across 16 isolated channels.
Q2: Is the AAI543-H53 suitable for redundant configurations?
A2: Yes. It supports dual-redundant configurations with either standard or fast switch-over response.
Q3: What is the accuracy specification of this module?
A3: The accuracy is specified as ±48 µA.
Q4: Can the AAI543-H53 module be used with HART communication?
A4: Yes, it supports HART communication when installed in a compatible ER bus node unit with EB401 firmware version 2 or higher.
Q5: What is the allowable load resistance for each output channel?
A5: The output channels support a load resistance range of 0 to 750 Ω.
Q6: What are the environmental requirements for this module?
A6: The module should be used within the ambient temperature range of 0 to 60 °C for fast switch-over types.
Q7: Does the module provide galvanic isolation between outputs and the system?
A7: Yes, it provides 1500 V AC isolation between the output and system components for one minute.
Q8: What wiring options are available for connecting the module to field devices?
A8: The module supports pressure clamp terminals, MIL connector cables, and dedicated KS1 cables.
