Product Specifications
| Parameter | Description |
|---|---|

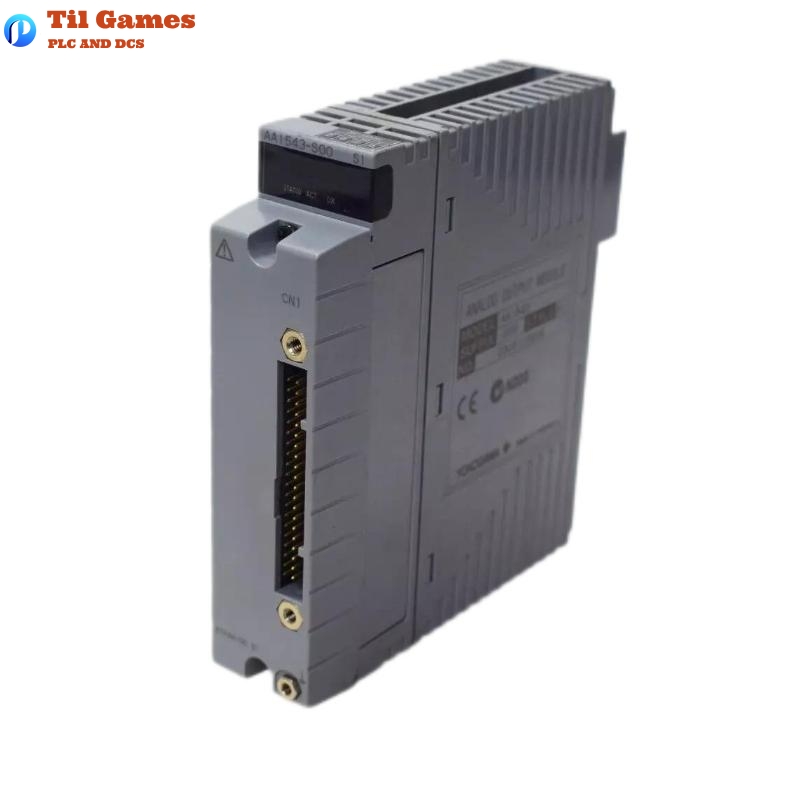

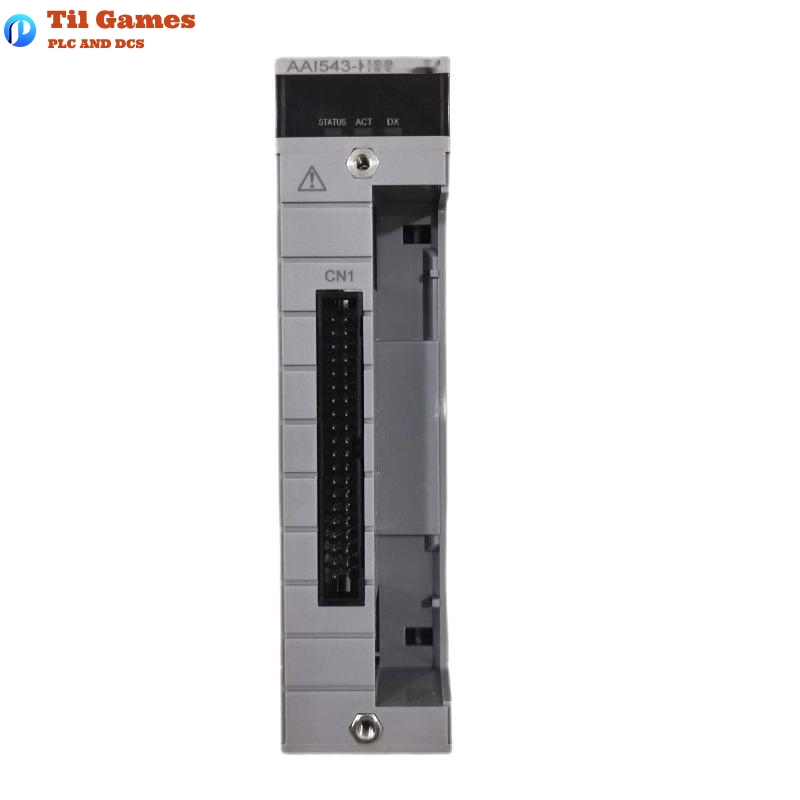

| Model | AAI543-H50/K4A00 |
| Type | Analog Output Module (Current Output, Isolated) |
| Output Signal | 4 to 20 mA DC |
| Number of Channels | 16 isolated channels |
| Redundancy Support | Standard switch-over response in dual-redundant configuration |
| Withstanding Voltage | 1500 V AC between output and system for 1 minute |
| Allowable Load Resistance | 0 to 750 Ω |
| Circuit-Open Detection | Output current falls below 0.65 mA |
| Accuracy | ±48 µA |
| Data Update Period | 10 ms |
| Temperature Drift | ±16 µA/10°C |
| Max Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| External Communication | Pressure clamp terminal, MIL connector cable, KS1 cable |
| HART Communication | Supported (Max 16 devices/module) |
| Dimensions (W x D x H) | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of output signal does the AAI543-H50 module provide?
A1: The module provides a 4 to 20 mA DC analog output signal, suitable for industrial process control applications.
Q2: Is the AAI543-H50 module isolated?
A2: Yes, each of the 16 output channels is electrically isolated from the system to enhance noise immunity and safety.
Q3: Can this module be used in a redundant configuration?
A3: Yes, the AAI543-H50 supports standard switch-over response in dual-redundant configurations, ensuring high availability.
Q4: What is the accuracy of the analog output signals?
A4: The output accuracy is ±48 µA, ensuring precise current control across all channels.
Q5: What is the maximum load resistance supported by this module?
A5: The AAI543-H50 supports load resistances ranging from 0 to 750 Ω per output channel.
Q6: Does this module support HART communication?
A6: Yes, it supports HART protocol communication, allowing for remote diagnostics and configuration of field devices.
Q7: What happens in case of an open circuit on the output?
A7: If an output circuit is open, the module detects the condition when the current drops below 0.65 mA.
Q8: What is the physical size and weight of the module?
A8: The module measures 107.5 mm (W) × 32.8 mm (D) × 130 mm (H) and weighs approximately 0.4 kg.
