Technical Specifications
| Item | Specification |
|---|---|

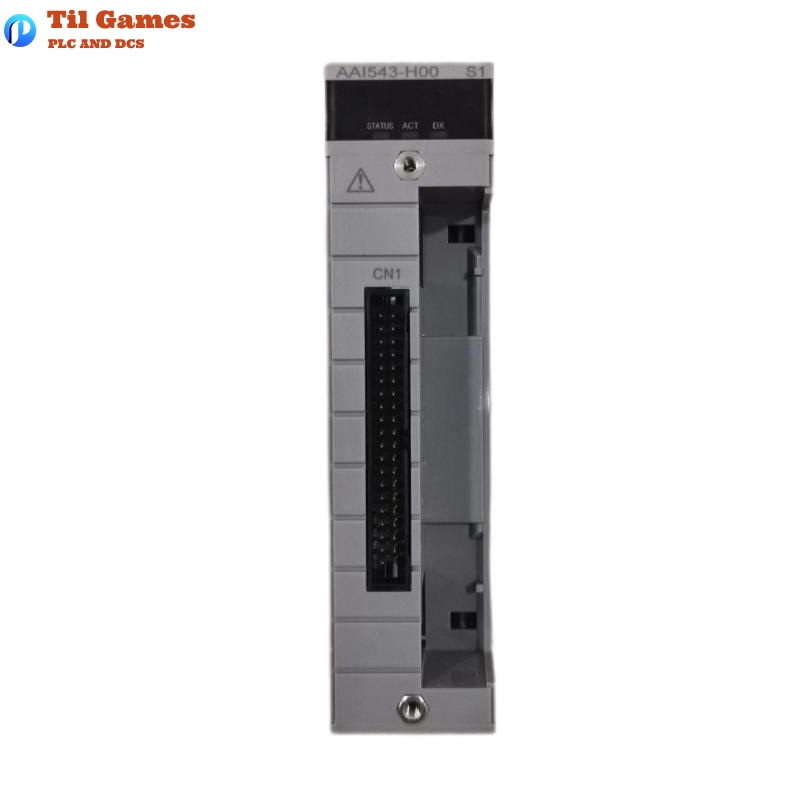

| Model | AAI543-H00 (HART Communication Supported) |
| Output Type | Analog Output (4–20 mA, Isolated) |
| Number of Output Channels | 16 |
| Withstanding Voltage | 1500 V AC (between output and system, 1 minute) |
| Allowable Load Resistance | 0 to 750 Ω |
| Circuit-open Detection | Less than 0.65 mA |
| Accuracy | ±48 µA |
| Data Update Period | 10 ms |
| Temperature Drift | ±16 µA/10 °C |
| Current Consumption | 230 mA (5 V DC), 540 mA (24 V DC) |
| External Connection | Pressure clamp terminal, MIL connector cable, KS1 cable |
| Redundant Configuration | Supported (Standard and Fast switch-over available) |
| HART Communication | Supported (max. 16 devices/module) |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the output signal range of the AAI543-H00 module?
A1: The output signal is 4 to 20 mA DC for each of the 16 isolated channels.
Q2: Is the AAI543-H00 module suitable for redundant applications?
A2: Yes, it supports dual-redundant configurations with both standard and fast switch-over options.
Q3: What type of isolation is provided between output and the system?
A3: The module provides 1500 V AC isolation between the output channels and the system for one minute.
Q4: Can the AAI543-H00 module detect an open-circuit condition?
A4: Yes, it has a circuit-open detection threshold set to less than 0.65 mA.
Q5: Is the AAI543-H00 compatible with HART communication?
A5: Yes, it supports HART communication and can connect up to 16 HART devices per module.
Q6: What is the maximum load resistance the output can drive?
A6: The module can drive a load resistance from 0 to 750 ohms.
Q7: How is the temperature drift of the output signal characterized?
A7: The output signal drift due to ambient temperature is within ±16 µA per 10 °C.
Q8: What are the options for external connections?
A8: It supports pressure clamp terminals, MIL connector cables, and KS1 type dedicated cables.
