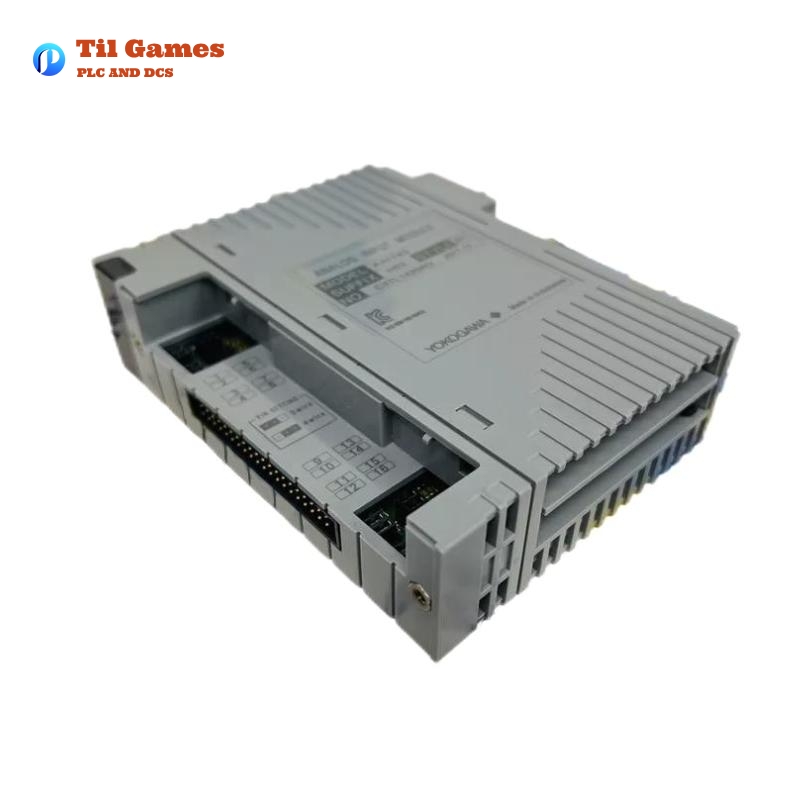

Yokogawa AAI143-h53 Analog Input Module

Yokogawa AAI143-h53 Analog Input Module

Manufacturer:Yokogawa

Product Number:AAI143-h53

Product Type:Analog Input Module

Origin:Japan

Dimensions:107.5×32.8×130 mm

Weight:0.3 kg

Views:25

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/AAI143-h53-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI143-h53-4-1-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI143-h53-5-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI143-h53-1.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Specifications

The Yokogawa AAI143-H53 is an isolated analog input module designed for industrial automation and process control applications. Below is a detailed table outlining its technical specifications:

Parameter Specification
Model AAI143-H53
Number of Input Channels 16, isolated
Input Signal 4 to 20 mA
Allowable Input Current 24 mA
Withstanding Voltage 1500 V AC (between input and system)
Input Resistance (ON) 270 Ω (20 mA) to 350 Ω (4 mA)
Input Resistance (OFF) 500 kΩ or larger
Accuracy ±16 µA
Data Update Period 10 ms
Transmitter Power Supply 19.0 V min (at 20 mA), 25.5 V max (at 0 mA)
Temperature Drift ±16 µA/10°C
Power Consumption 230 mA (5V DC), 540 mA (24V DC)
External Connection Pressure clamp terminal, MIL connector cable, dedicated cable (KS1)
HART Communication Available
Dimensions (mm) 107.5 × 32.8 × 130
Weight 0.3 kg

Product Introduction

The Yokogawa AAI143-H53 is a high-performance isolated analog input module designed for use in field control units (FCS) and ESB bus node units. It provides reliable data acquisition by converting analog signals from field instruments into digital data for control systems. Featuring 16 isolated input channels, it ensures stable and accurate measurements while supporting HART communication for enhanced diagnostics and remote configuration.
