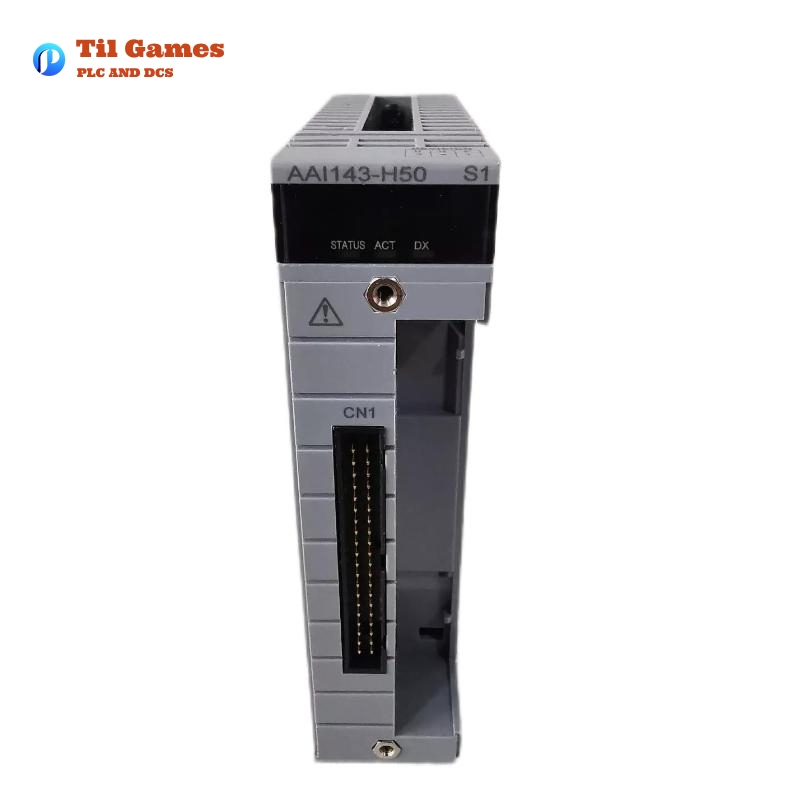

Yokogawa AAI143-H50/K4A00 Analog Input Module

Yokogawa AAI143-H50/K4A00 Analog Input Module

Manufacturer:Yokogawa

Product Number:AAI143-H50/K4A00

Product Type:Analog Input Module

Origin:Japan

Dimensions:107.5×32.8×130 mm

Weight:0.3 kg

Views:28

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/AAI143-H50-K4A00-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI143-H50-K4A00-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI143-H50-K4A00-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI143-H50-K4A00-4.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Overview

The Yokogawa AAI143-H50/K4A00 is a high-performance Analog Input Module designed for industrial automation applications. It supports 16 isolated input channels with a 4 to 20 mA DC input signal. This module is widely used for accurate and reliable data acquisition in process control systems.


Technical Specifications

Parameter Details
Model AAI143-H50/K4A00
Number of Channels 16 (Isolated)
Input Signal 4 to 20 mA DC
Allowable Input Current 24 mA
Withstanding Voltage 1500 V AC (Between Input and System)
Input Resistance (Power ON) 270Ω (20 mA) to 350Ω (4 mA)
Input Resistance (Power OFF) 500 kΩ or larger
Accuracy ±16 µA
Data Update Period 10 ms
Transmitter Power Supply 19.0V or higher (at 20 mA), 25.5V max
Current Consumption 230 mA (5V DC), 540 mA (24V DC)
External Connection Pressure clamp terminal, MIL connector cable
HART Communication Available
Dimensions 107.5 × 32.8 × 130 mm
Weight 0.3 kg

Product Applications

The AAI143-H50/K4A00 Analog Input Module is used in various industrial automation systems, including:

  • Process Control Systems: Capturing and transmitting sensor data for monitoring and control.
  • Chemical and Petrochemical Plants: Measuring liquid flow, pressure, and temperature.
  • Power Plants: Monitoring critical system parameters.
  • Oil & Gas Industry: Ensuring accurate measurement and data logging.
  • Manufacturing Automation: Integrating with PLCs and DCS for automated processes.

Key Advantages

  1. High Accuracy: ±16 µA precision ensures precise signal processing.
  2. Isolated Channels: Minimizes interference and improves signal integrity.
  3. Fast Data Update Rate: 10 ms ensures real-time data collection.
  4. HART Communication: Supports HART-enabled field devices for additional diagnostics.
  5. Robust Build: Industrial-grade reliability for harsh environments.
  6. Dual Power Supply Compatibility: Supports both 5V and 24V DC.
