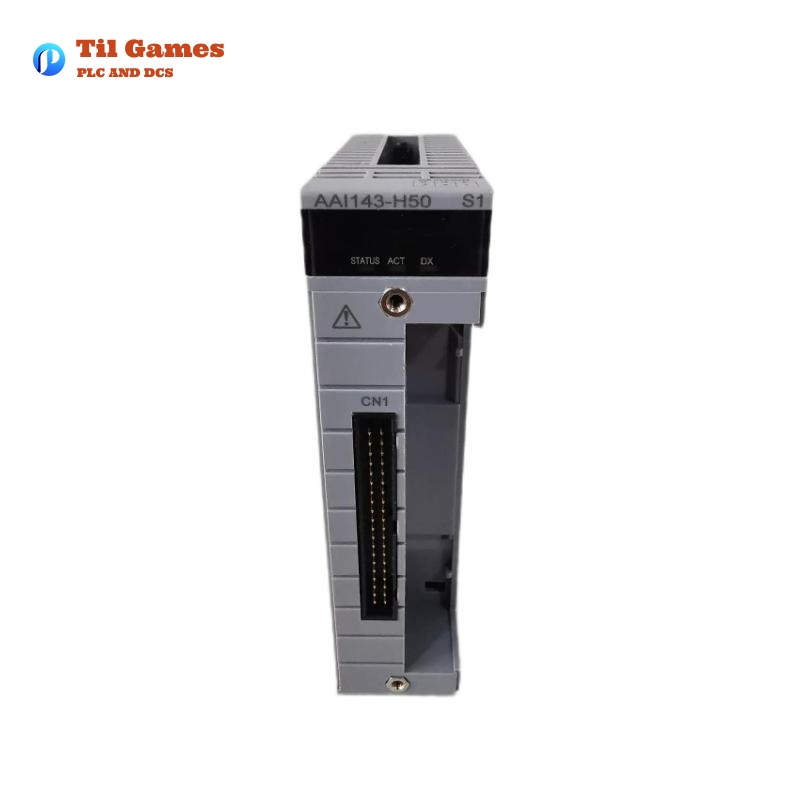

Yokogawa AAI143-h50 Analog Input Module

Yokogawa AAI143-h50 Analog Input Module

Manufacturer:Yokogawa

Product Number:AAI143-h50

Product Type:Analog Input Module

Origin:Japan

Dimensions:107.5×32.8×130 mm

Weight:0.3 kg

Views:27

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/1-33.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/2-17.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/3-15.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/4-19.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Specifications

Item Specification
Model AAI143-H50
Number of Channels 16, isolated
Input Signal 4 to 20 mA
Allowable Input Current 24 mA
Withstanding Voltage 1500 V AC (between input and system)
Input Resistance (Power ON) 270 Ω (at 20 mA) to 350 Ω (at 4 mA)
Input Resistance (Power OFF) 500 kΩ or larger
Accuracy ±16 µA
Data Update Period 10 ms
Transmitter Power Supply 19.0 V or higher (at 20 mA), 25.5 V or less (at 0 mA) (output current limit: 25 mA)
Temperature Drift ±16 µA/10°C
Maximum Current Consumption 230 mA (5V DC), 540 mA (24V DC)
Weight 0.3 kg
Dimensions 107.5 × 32.8 × 130 mm
External Connection Pressure clamp terminal, MIL connector cable, dedicated cable (KS1)
HART Communication Available

Product Introduction

The Yokogawa AAI143-H50 is a high-performance analog input module designed for precise current signal acquisition in industrial control systems. It supports 16 isolated channels for 4 to 20 mA signal input, making it suitable for various process control applications.

This module ensures high accuracy and robust signal isolation, reducing electrical noise and interference. It also includes HART communication, enabling seamless integration with HART-compatible field devices. The AAI143-H50 is commonly used in distributed control systems (DCS) and programmable logic controllers (PLC) for real-time monitoring and process optimization.


Applications

The AAI143-H50 Analog Input Module is widely used in various industrial automation and process control applications, including:

  • Oil and Gas Industry: Monitoring pipeline pressure, flow rate, and temperature.
  • Power Generation Plants: Measuring turbine parameters and cooling system efficiency.
  • Chemical Processing: Tracking liquid levels, chemical concentrations, and reaction rates.
  • Pharmaceutical Manufacturing: Ensuring precision in drug formulation and mixing processes.
  • Water and Wastewater Treatment: Monitoring flow rates, pressure levels, and water quality.
  • Food and Beverage Industry: Controlling production parameters for quality assurance.
  • Steel and Metal Processing: Tracking furnace temperature and material properties.

Advantages

  • High Accuracy: ±16 µA ensures precise measurement of current signals.
  • Electrical Isolation: Provides strong signal isolation, reducing ground loop issues.
  • Fast Data Update Rate: 10 ms update period enables real-time monitoring.
  • HART Communication: Allows advanced diagnostics and remote configuration.
  • Robust Design: Withstands harsh industrial environments with high voltage protection.
  • Dual-Redundant Configuration: Can be used in a redundant setup for higher reliability.
  • Versatile Compatibility: Works with various Yokogawa DCS and PLC systems.
  • Compact and Lightweight: Small form factor (107.5 × 32.8 × 130 mm, 0.3 kg) makes installation easier.

Latest News Headlines

  1. “Yokogawa Expands HART-Compatible Analog Input Module Lineup”
  2. “Enhanced Process Control: AAI143-H50’s Role in Industry 4.0”
  3. “Yokogawa AAI143 Series: Setting New Standards in Accuracy and Reliability”
  4. “How HART Communication is Revolutionizing Industrial Automation”
  5. “Improving Process Efficiency with Yokogawa’s Advanced Input Modules”

Recommended Related Models

Here are 10 related Yokogawa models from the same series or with similar functions:

Model Description
AAI143-H00 16-channel isolated current input module (No HART)
AAI135-H00 8-channel isolated current input module
AAI835-H00 4-channel isolated current input/output module
AAV144 16-channel isolated voltage input module
AAI841-H00 8-channel non-isolated analog input/output module
AAB841-H00 8-channel non-isolated voltage/current input module
AAI543-H50 16-channel isolated current output module (HART)
AAI543-H00 16-channel isolated current output module (No HART)
AAV542 16-channel non-isolated voltage output module
AAP135 8-channel isolated pulse input module

Popular Yokogawa Models

Below are 10 of the most popular Yokogawa models across various product categories:

Model Description
CENTUM VP Advanced distributed control system (DCS)
STARDOM FCN-RTU Remote terminal unit for industrial automation
ProSafe-RS Safety instrumented system (SIS)
FA-M3V High-speed programmable logic controller (PLC)
YHC5150X HART communicator for field device diagnostics
ADMAG AXF Electromagnetic flowmeter for process industries
DX1000/DX2000 Paperless recorders for industrial data logging
GC8000 Process gas chromatograph for chemical analysis
Exaquantum Plant information management system (PIMS)
DTSX200 Fiber optic temperature sensor for industrial applications
FAQ

FAQs (Frequently Asked Questions)

Q1: What type of signals does the AAI143-H50 support?

A1: The AAI143-H50 supports 4 to 20 mA current input across 16 isolated channels.

Q2: Does this module support HART communication?

A2: Yes, the H50 variant includes HART communication for enhanced diagnostics and remote configuration.

Q3: What is the input resistance of this module?

A3: The input resistance is 270 Ω (at 20 mA) to 350 Ω (at 4 mA) when powered ON.

Q4: Can this module be used in a redundant configuration?

A4: Yes, the AAI143-H50 supports dual-redundant operation for increased reliability.

Q5: What is the size and weight of the AAI143-H50 module?

A5: It measures 107.5 × 32.8 × 130 mm and weighs 0.3 kg.

Q6: Is this module suitable for hazardous environments?

A6: This model does not have explosion protection, but Yokogawa offers other variants with intrinsic safety.

Q7: What power supply does the module require?

A7: The module requires 230 mA (5V DC) and 540 mA (24V DC).

Q8: Can I use this module with a Yokogawa DCS system?

A8: Yes, it is fully compatible with Yokogawa CENTUM VP and other DCS platforms.

Q9: What is the data update rate?

A9: The data update period is 10 ms, making it suitable for real-time applications.

Q10: What is the maximum input current this module can handle?

A10: The maximum allowable input current is 24 mA.
