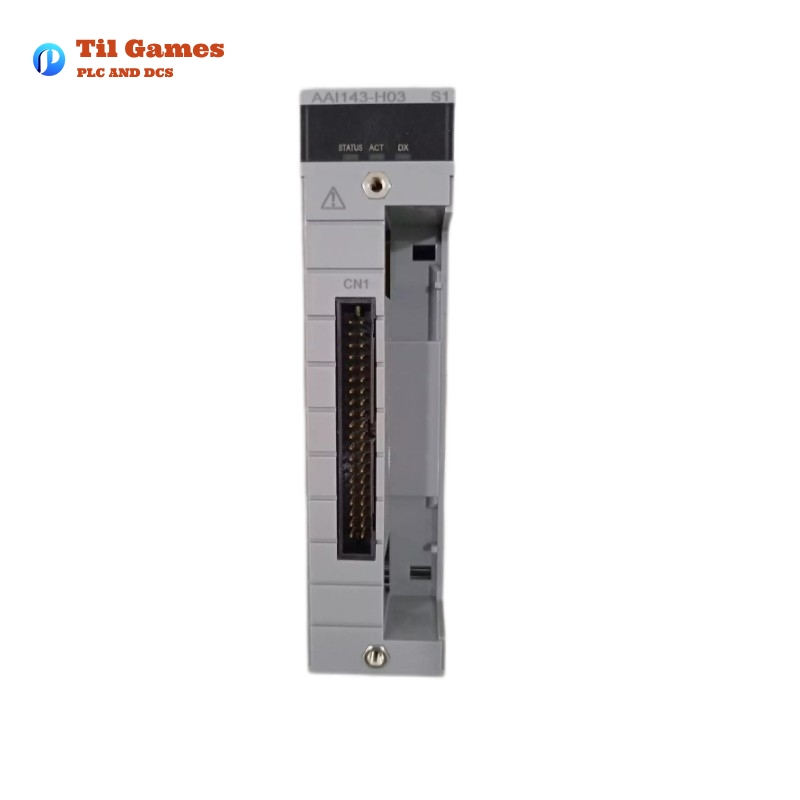

Yokogawa AAI143-H03 Analog Input Module

Yokogawa AAI143-H03 Analog Input Module

Manufacturer:Yokogawa

Product Number:AAI143-H03

Product Type:Analog Input Module

Origin:Japan

Dimensions:107.5×32.8×130 mm

Weight:0.3 kg

Views:30

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/AAI143-H03-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI143-H03-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI143-h53-4-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI143-h53-5.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

1. Product Specifications

Item Specification
Model AAI143-H03
Number of Input Channels 16, Isolated
Input Signal 4 to 20 mA
Allowable Input Current 24 mA
Withstanding Voltage 1500 V AC (between input and system, for 1 min)
Input Resistance 270 Ω (at 20 mA) to 350 Ω (at 4 mA)
Accuracy ±16 µA
Data Update Period 10 ms
Transmitter Power Supply 19.0 V or higher (at 20 mA), 25.5 V or less (at 0 mA)
Temperature Drift ±16 µA per 10°C
Maximum Current Consumption 230 mA (5V DC), 540 mA (24V DC)
Weight 0.3 kg
Dimensions (W x D x H) 107.5 × 32.8 × 130 mm
External Connection Pressure clamp terminal, MIL connector cable, KS cable
HART Communication Available

2. Product Introduction

The Yokogawa AAI143-H03 is a 16-channel, isolated analog input module designed to support 4 to 20 mA current input signals. It provides high accuracy and reliability for industrial automation systems, ensuring stable and precise data acquisition from field instruments. Equipped with HART communication, the AAI143-H03 allows enhanced integration with smart transmitters, making it an ideal choice for process control environments.

The module is designed for use in Yokogawa’s CENTUM VP and ProSafe-RS systems, ensuring seamless communication with field devices while offering high voltage isolation to protect against electrical interference.


3. Product Applications

The Yokogawa AAI143-H03 Analog Input Module is widely used in industrial sectors requiring high-precision signal acquisition and safe data transmission. Typical applications include:

  • Oil & Gas Industry – Monitoring pressure, temperature, and flow sensors in pipeline and refinery processes.
  • Power Plants – Data acquisition from steam turbines, cooling systems, and generator monitoring.
  • Chemical Processing – Monitoring critical process variables in chemical reaction control systems.
  • Water Treatment Plants – Ensuring accurate signal measurement from pH, conductivity, and level sensors.
  • Pharmaceutical Manufacturing – Maintaining precise process control for batch production and quality monitoring.
  • Food & Beverage Industry – Used in temperature and flow control systems to maintain production quality.

4. Product Advantages

The AAI143-H03 Analog Input Module offers several key advantages over other analog input modules:

High Accuracy and Stability – With a precision of ±16 µA, it ensures reliable and accurate signal processing.

Isolated Inputs for Protection – The 1500 V AC isolation enhances safety and reduces interference from external electrical noise.

Fast Response Time – With a 10 ms data update period, it provides real-time signal acquisition.

Integrated HART Communication – Allows enhanced diagnostics and data retrieval from smart field devices.

Flexible Power Supply – Supports 19.0 V to 25.5 V transmitter power, suitable for various industrial environments.

Compact and Lightweight Design – Measuring 107.5 × 32.8 × 130 mm and weighing 0.3 kg, it is space-efficient.

Dual-redundant Capability – Supports high-availability configurations, ensuring system reliability.


5. Latest Product News Titles

  1. Yokogawa Expands Industrial Automation Portfolio with Enhanced AAI143-H03 Features
  2. New Firmware Update for AAI143-H03 Enables Advanced HART Communication
  3. Yokogawa AAI143-H03: The Future of Precision Analog Input Modules
  4. How the AAI143-H03 is Revolutionizing Process Automation in the Oil & Gas Sector
  5. Yokogawa Strengthens Its Analog Input Solutions with AAI143-H03 Integration
  6. AAI143-H03 Delivers Enhanced Reliability in Harsh Industrial Environments
  7. Best Practices for Deploying Yokogawa’s AAI143-H03 in Safety-Critical Applications
  8. Upgrading to AAI143-H03: Key Benefits and Installation Guidelines
  9. AAI143-H03 vs. Competitor Models: A Comprehensive Comparison
  10. Industry Leaders Adopt AAI143-H03 for Next-Gen Process Control Systems

6. Related Models in the Same Series

Model Description
AAI143-H00 16-channel isolated current input, no HART communication
AAI141-H03 16-channel non-isolated current input, HART communication
AAI135-H03 8-channel isolated current input with HART communication
AAI835-H03 4-channel isolated input/output module
AAI841-H03 8-channel input, 8-channel output non-isolated module
AAI543-H03 16-channel isolated analog output module
AAV144-H03 16-channel isolated voltage input module
AAV542-H03 16-channel non-isolated voltage output module
AAB141-H03 16-channel non-isolated voltage/current input module
AAB842-H03 8-channel voltage/current input, 8-channel current output module

7. Popular Yokogawa Models

Model Description
AAI143-H03 16-channel isolated current input module with HART
AAI543-H03 16-channel isolated current output module
AAI141-H03 16-channel non-isolated current input module
AAI841-H03 8-channel input/output current module
AAV144-H03 16-channel isolated voltage input module
AAV542-H03 16-channel non-isolated voltage output module
AAB141-H03 16-channel voltage/current input module
AAB842-H03 8-channel voltage/current input, 8-channel current output
AAT145-H03 16-channel thermocouple input module
AAP135-H03 8-channel pulse input module
FAQ

FAQ (Frequently Asked Questions)

Q1: What is the input type for the AAI143-H03 module?
A1: The AAI143-H03 accepts 4 to 20 mA current input signals from field devices.

Q2: Does the AAI143-H03 support HART communication?
A2: Yes, the AAI143-H03 is equipped with HART communication, enabling enhanced data retrieval.

Q3: Can this module be used in a dual-redundant configuration?
A3: Yes, the AAI143-H03 supports dual-redundant configurations for high availability.

Q4: What is the isolation voltage rating for this module?
A4: The module provides 1500 V AC isolation between the input and system.

Q5: What are the power requirements for the transmitter?
A5: It supports a transmitter power supply range of 19.0V to 25.5V.

Q6: What are the typical applications of this module?
A6: It is widely used in oil & gas, power plants, chemical processing, and water treatment.

Q7: What is the data update speed of the AAI143-H03?
A7: The module updates data every 10 ms, ensuring real-time monitoring.

Q8: Can it be used with Yokogawa CENTUM VP systems?
A8: Yes, the AAI143-H03 is fully compatible with CENTUM VP and ProSafe-RS systems.

Q9: What is the weight of this module?
A9: The AAI143-H03 weighs 0.3 kg.

Q10: What type of external connections does this module use?
A10: It uses pressure clamp terminals, MIL connector cables, and KS cables.
