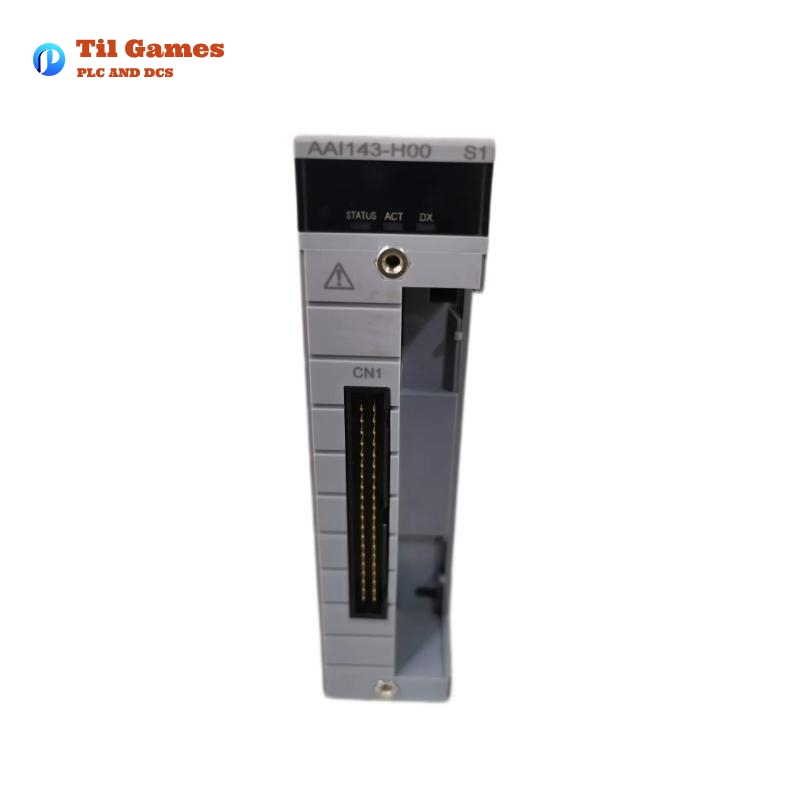

Yokogawa AAI143 h Analog Input Module

Yokogawa AAI143 h Analog Input Module

Manufacturer:Yokogawa

Product Number:AAI143 h

Product Type:Analog Input Module

Origin:Japan

Dimensions:107.5×32.8×130 mm

Weight:0.3 kg

Views:28

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/AAI143-h-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI143-h-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI143-h-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI143-h-4.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Specifications

The following table outlines the key specifications of the Yokogawa AAI143-H Analog Input Module:

Parameter Specification
Model AAI143-H
Input Channels 16, isolated
Input Signal 4 to 20 mA DC
Allowable Input Current 24 mA
Withstanding Voltage 1500 V AC between input and system for 1 minute
Input Resistance Power ON: 270Ω (20 mA) to 350Ω (4 mA)
Accuracy ±16 µA
Data Update Period 10 ms
Transmitter Power Supply 19.0 V or higher (at 20 mA), 25.5 V max (at 0 mA)
2-wire/4-wire Transmitter Setting Configurable per channel
Temperature Drift ±16 µA / 10°C
Max. Power Consumption 230 mA (5 V DC), 540 mA (24 V DC)
Weight 0.3 kg
External Connection Pressure clamp terminal, MIL connector cable, KS1 cable
HART Communication Available
Dimensions 107.5 × 32.8 × 130 mm

Product Introduction

The Yokogawa AAI143-H Analog Input Module is a high-performance, 16-channel input module designed for process automation applications requiring high precision and reliability. It is specifically engineered for use in Yokogawa’s field control units and supports HART communication, enabling advanced diagnostics and configuration options. The module ensures accurate signal conversion from field devices, making it ideal for industrial environments where reliable data acquisition is crucial.

With isolated inputs, the AAI143-H effectively prevents interference and ensures stable operation even in high-noise environments. The built-in transmitter power supply enables seamless integration with 2-wire and 4-wire transmitters.


Applications

The AAI143-H Analog Input Module is widely used in industries that require reliable analog signal processing, including:

  • Oil and Gas – Process control in refineries and offshore platforms.
  • Power Plants – Monitoring and controlling steam turbines and generator systems.
  • Chemical Plants – Precise monitoring of temperature, pressure, and flow.
  • Pharmaceutical Industry – Ensuring accurate environmental conditions in manufacturing.
  • Water Treatment Facilities – Monitoring pH levels, turbidity, and chemical dosing.
  • Automotive Industry – Industrial automation and process monitoring.

Advantages

The Yokogawa AAI143-H offers several advantages over competing analog input modules:

  1. High Accuracy and Stability – Ensures reliable signal processing with minimal drift.
  2. Isolated Inputs – Prevents electrical interference and enhances system safety.
  3. Dual-Redundant Capability – Increases system reliability in critical applications.
  4. HART Communication Support – Enables advanced diagnostics and remote configuration.
  5. Fast Data Update Period (10 ms) – Ensures real-time data acquisition.
  6. Robust Design – Withstands harsh industrial environments.
  7. Wide Compatibility – Works with multiple Yokogawa field control units.
  8. Compact and Lightweight – Ideal for space-constrained control panels.
  9. Configurable for 2-wire or 4-wire Transmitters – Offers flexible installation.
  10. Comprehensive Error Detection – Minimizes downtime by providing diagnostic information.
