Product Specifications
| Parameter | Details |
|---|---|

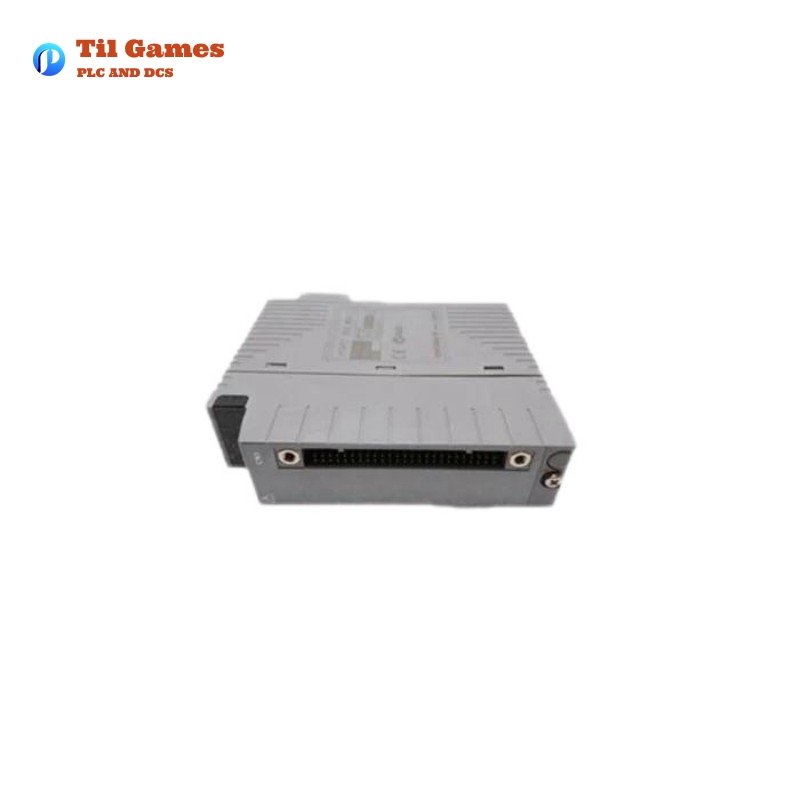

| Model | Yokogawa AAI141-S50 Analog Input Module |
| Number of Channels | 16 (non-isolated) |
| Input Signal | 4 to 20 mA DC, 1 to 5 V DC |
| Allowable Input Current/Voltage | 27 mA, ±7.5 V |
| Input Resistance | 400 Ω (at 20 mA) to 1000 Ω (at 4 mA) |
| Accuracy | ±16 µA |
| Data Update Period | 10 ms |
| Step Response Time | 100 ms |
| Transmitter Power Supply | 14.8 V or higher at 20 mA, max 26.4 V at 0 mA |
| Maximum Current Consumption | 310 mA (5 V DC), 450 mA (24 V DC) |
| External Connection | Pressure clamp terminal, KS cable, MIL connector |
| HART Communication | Available |
| Dimensions (mm) | 107.5 × 32.8 × 130 |
| Weight | 0.2 kg |
Product Overview
The Yokogawa AAI141-S50 Analog Input Module is a high-performance industrial automation component designed for precise signal conversion. It converts field analog signals into digital data for process control applications. The module supports both current (4-20mA) and voltage (1-5V DC) inputs and integrates seamlessly with Yokogawa’s control systems.
With a compact size (107.5 × 32.8 × 130 mm) and lightweight design (0.2 kg), the AAI141-S50 is easy to install and supports HART communication, allowing advanced diagnostics and remote configuration.
This module is designed for high-speed data processing, featuring 10 ms update periods and a 100 ms step response time, ensuring real-time accuracy. It can be configured in a dual-redundant setup to enhance reliability in mission-critical applications.
Applications
The AAI141-S50 Analog Input Module is used in various industrial applications, including:
- Process Automation – Used in chemical plants, refineries, and power generation to monitor and control process variables such as pressure, temperature, and flow.
- Manufacturing Systems – Essential in automated production lines to collect and process analog data from sensors.
- Energy & Utilities – Applied in power plants, water treatment, and oil & gas facilities to ensure accurate monitoring.
- Pharmaceutical & Food Industries – Helps in precision control of process variables for regulatory compliance.
- Industrial Robotics – Supports real-time feedback for automated machinery and robotics.
Advantages
- High Precision – ±16 µA accuracy ensures reliable signal conversion for critical applications.
- Fast Processing – 10 ms update period and 100 ms step response time allow real-time control.
- Compact & Lightweight – Small form factor (107.5 × 32.8 × 130 mm, 0.2 kg) enables easy installation in control cabinets.
- HART Communication Support – Enables remote configuration, diagnostics, and monitoring.
- Dual-Redundant Configuration – Can be used in fail-safe systems to ensure continuous operation.
- Wide Compatibility – Supports both current (4-20mA) and voltage (1-5V DC) inputs for diverse sensor integration.
- Durability – Designed to operate in harsh industrial environments with robust electrical protection.
- Transmitter Power Supply – Provides up to 26.4V for powering field transmitters directly.
- Low Power Consumption – Efficient design with 310 mA (5V DC) / 450 mA (24V DC) power draw.
- Easy Wiring & Installation – Supports pressure clamp terminals, KS cables, and MIL connectors for flexible integration.
Latest Industry News Headlines
- “Yokogawa Expands Industrial Automation Solutions with Advanced I/O Modules”
- “HART-Enabled Analog Input Modules Enhance Process Control Efficiency”
- “New Yokogawa FIO Modules Improve Data Processing Speed and Accuracy”
- “Yokogawa Introduces High-Precision Analog Modules for Smart Factories”
- “Industrial Automation: The Role of Yokogawa AAI141-S50 in Future Technologies”
Recommended Related Models (Same Series or Similar)
| Model | Description |
|---|---|
| AAI141-H00 | Analog Input Module (HART, 16-channel, 4-20mA) |
| AAV141 | Voltage Input Module (1-5V, 16-channel) |
| AAV142 | Voltage Input Module (-10V to +10V, 16-channel) |
| AAB141 | Analog Input Module (1-5V/4-20mA, 16-channel) |
| AAI841 | Analog I/O Module (8-channel input/output) |
| AAB841 | Analog I/O Module (1-5V input, 4-20mA output) |
| AAI135 | Isolated Current Input Module (8-channel) |
| AAI543 | Isolated Current Output Module (16-channel) |
| AAV144 | Isolated Voltage Input Module (-10 to 10V) |
| AAV544 | Isolated Voltage Output Module (-10 to 10V) |
Top 10 Popular Yokogawa Models
| Model | Description |
|---|---|
| AAI143 | Isolated Current Input Module (16-channel) |
| AAI543 | Isolated Current Output Module (16-channel) |
| AAI835 | Isolated Current I/O Module (4 in/4 out) |
| AAT141 | TC/mV Input Module (16-channel) |
| AAP135 | Pulse Input Module (8-channel) |
| AAP849 | Pulse Input / Analog Output Module |
| AAV542 | Non-Isolated Voltage Output Module |
| AAI141-H00 | HART-Enabled Analog Input Module |
| AAR181 | RTD Input Module (12-channel) |
| AAB842 | Voltage/Current I/O Module (8-channel) |
FAQ
FAQs (Frequently Asked Questions)
Q1: What types of signals does the AAI141-S50 support?
A1: It supports 4-20 mA DC and 1-5V DC analog input signals.
Q2: Can this module be used in hazardous environments?
A2: The AAI141-S50 does not have explosion protection, but variants with explosion-proof options are available.
Q3: Does the AAI141-S50 support HART communication?
A3: Yes, it supports HART protocol for remote diagnostics and configuration.
Q4: What is the power consumption of this module?
A4: It consumes 310 mA (5V DC) and 450 mA (24V DC).
Q5: Can this module be used in a redundant system?
A5: Yes, it can be configured in dual-redundant mode for reliability.
Q6: How is the wiring connected?
A6: It supports pressure clamp terminals, KS cables, and MIL connectors.
Q7: What is the update time for analog data?
A7: It has a 10 ms update period and 100 ms step response time.
Q8: What are its dimensions?
A8: 107.5 × 32.8 × 130 mm.
Q9: What is the weight of this module?
A9: 0.2 kg.
Q10: Is this module compatible with Yokogawa’s control systems?
A10: Yes, it is compatible with Yokogawa CENTUM VP and ProSafe-RS systems.
