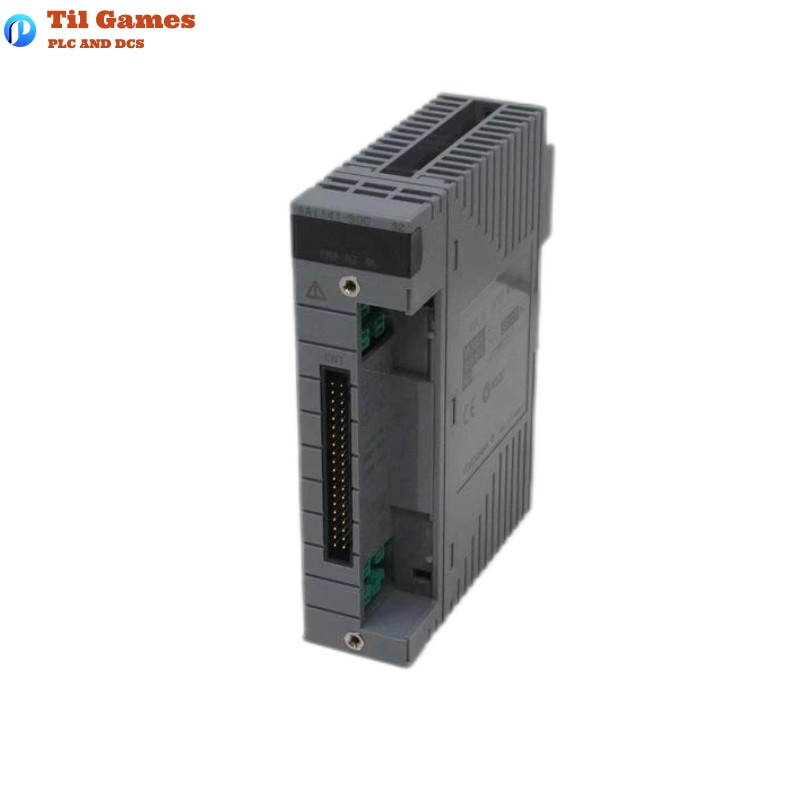

Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI141-S00 |
| Input Channels | 16 channels, non-isolated |
| Input Signal | 4 to 20 mA DC or 1 to 5 V DC |
| Input Resistance (Power ON) | 400 Ω (at 20 mA) to 1000 Ω (at 4 mA) |
| Input Resistance (Power OFF) | 500 kΩ or larger |
| Accuracy | ±16 µA |
| Drift (Ambient Temp. Change) | ±16 µA/10 °C |
| Data Update Period | 10 ms |
| Step Response Time | 100 ms |
| Transmitter Power Supply | 14.8 V min (at 20 mA), 26.4 V max (at 0 mA), 27 mA output current limit |
| Setting for 2-/4-wire Transmitter | Configurable per channel via setting pin |
| HART Communication | Supported |
| Withstanding Voltage | Not applicable (non-isolated) |
| External Connection | Pressure clamp terminal, KS cable, MIL connector cable |
| Maximum Current Consumption | 310 mA (5 V DC), 450 mA (24 V DC) |
| Dimensions (W × D × H) | 107.5 × 32.8 × 130 mm |
| Weight | 0.2 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of input signals does the AAI141-S00 support?
A1: It supports 4 to 20 mA DC and 1 to 5 V DC standard analog signals.
Q2: Is the AAI141-S00 input isolated?
A2: No, all 16 channels are non-isolated.
Q3: Can this module supply power to 2-wire transmitters?
A3: Yes, each channel can provide loop power with 14.8 V minimum at 20 mA.
Q4: How is the transmitter type (2-wire or 4-wire) configured?
A4: The transmitter type is selected per channel using a hardware setting pin.
Q5: Does the AAI141-S00 support HART communication?
A5: Yes, the module supports HART communication on current input.
Q6: What is the accuracy of this analog input module?
A6: It has an accuracy of ±16 µA under specified conditions.
Q7: What are the power requirements for the module?
A7: The module consumes a maximum of 310 mA at 5 V DC and 450 mA at 24 V DC.
Q8: What is the recommended method for external wiring?
A8: External connections can be made using pressure clamp terminals, KS cables, or MIL connector cables.
