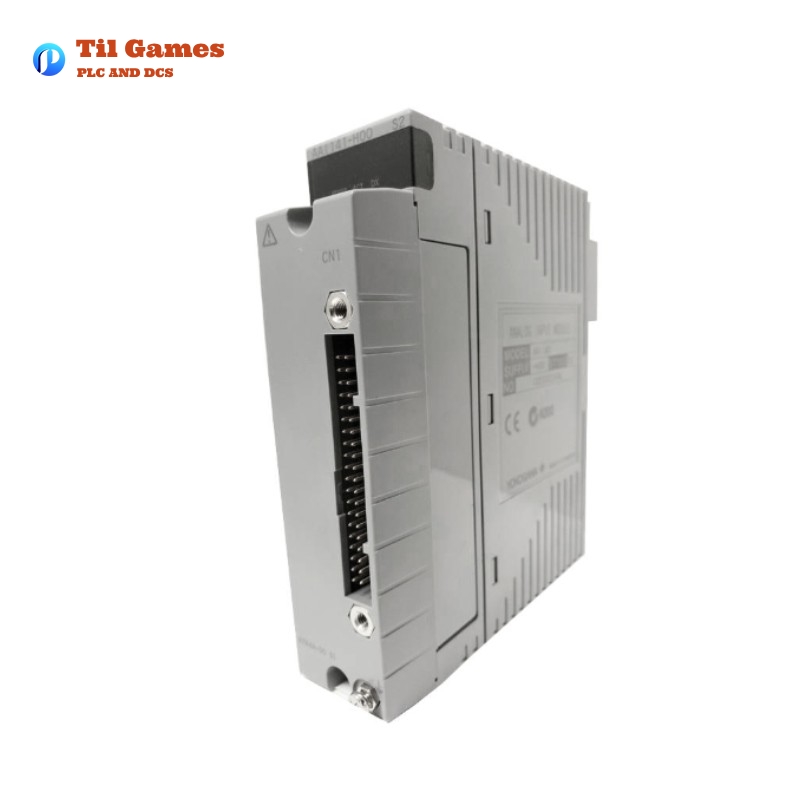

Yokogawa AAI141-H50 Analog Input Module

Yokogawa AAI141-H50 Analog Input Module

Manufacturer:Yokogawa

Product Number:AAI141-H50

Product Type:Analog Input Module

Origin:Japan

Dimensions:107.5×32.8×130 mm

Weight:0.2 kg

Views:21

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/AAI141-H50-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI141-H50.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI141-H50-3-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI141-H50-2.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Yokogawa AAI141-H50 Analog Input Module

The Yokogawa AAI141-H50 is an advanced analog input module designed for industrial process control applications. It is part of the Yokogawa CENTUM VP and ProSafe-RS systems, providing reliable and precise 4 to 20 mA current signal processing for field instruments. The module features HART communication, ensuring seamless integration with smart field devices for enhanced monitoring and diagnostics.

1. Technical Specifications

Parameter Specification
Model AAI141-H50
Number of Channels 16 (Non-Isolated)
Input Signal 4-20 mA DC
Allowable Input Current 27 mA
Accuracy ±16 µA
Data Update Period 10 ms
Step Response Time 100 ms
Transmitter Power Supply 14.8V (at 20mA) – 26.4V (at 0mA)
Withstanding Voltage Not Applicable
Input Resistance 400Ω (at 20mA) – 1000Ω (at 4mA)
Power Consumption 310mA (5V DC), 450mA (24V DC)
Weight 0.2 kg
Dimensions 107.5 × 32.8 × 130 mm
External Connection Pressure clamp terminal, KS cable, MIL connector cable
HART Communication Supported

2. Product Overview

The AAI141-H50 is a 16-channel analog input module that converts 4-20mA current signals from field devices into internal data for CENTUM VP and ProSafe-RS systems. It is designed for non-isolated applications, ensuring precise signal conversion. The built-in HART communication enhances remote diagnostics, reducing maintenance effort.

The module is used in applications requiring high-speed data acquisition and reliable control. It supports dual-redundant configurations, ensuring system resilience in mission-critical environments.


3. Applications

The AAI141-H50 Analog Input Module is widely used in various industrial automation and process control applications, including:

  • Oil & Gas Industry – Monitoring pressure, flow, and temperature in pipelines and refineries.
  • Chemical Processing Plants – Ensuring precise chemical dosing and reaction control.
  • Power Generation – Monitoring boiler and turbine parameters for efficiency optimization.
  • Water Treatment Facilities – Measuring water quality parameters like pH and turbidity.
  • Pharmaceutical Manufacturing – Controlling environmental conditions in cleanrooms.

4. Product Advantages

High Accuracy & Stability

  • Provides ±16 µA accuracy, ensuring precise signal acquisition for critical control applications.

Fast Data Update & Response Time

  • 10 ms update rate and 100 ms step response time, suitable for fast-changing process conditions.

HART Communication Support

  • Enables remote diagnostics and parameter adjustments, reducing maintenance costs.

Dual-Redundant Configuration

  • Supports fault-tolerant operation, ensuring continuous system uptime.

Compact & Lightweight Design

  • Small footprint (107.5 × 32.8 × 130 mm) and 0.2 kg weight, making it easy to install.

Broad Compatibility

  • Seamless integration with Yokogawa’s CENTUM VP and ProSafe-RS systems.

5. Related Models in the Same Series

The following models are related to the AAI141-H50 and offer variations in input type and isolation:

Model Description
AAI143-H00 16-channel isolated 4-20 mA analog input module
AAI135-H00 8-channel isolated 4-20 mA analog input module
AAV141-H00 16-channel 1-5V DC voltage input module
AAV144-H00 16-channel -10V to 10V voltage input module
AAI841-H00 8-input, 8-output 4-20mA I/O module
AAB141-H00 16-channel 1-5V or 4-20mA non-isolated input module
AAB842-H00 8-input, 8-output 1-5V / 4-20mA module
AAI543-H00 16-channel 4-20mA isolated analog output module
AAV542-H00 16-channel -10V to 10V analog output module
AAT141-H00 16-channel thermocouple/mV input module

6. Popular Yokogawa Models

The following Yokogawa products are widely used across industries:

Model Description
STARDOM FCN Hybrid PLC/DCS for process automation
CENTUM VP Integrated DCS for large-scale process control
ProSafe-RS Safety Instrumented System (SIS)
DXAdvanced Paperless Recorder for industrial data logging
YS1000 Single-loop controller for industrial processes
EJX110A Differential Pressure Transmitter
AXF Magnetic Flowmeter High-accuracy electromagnetic flowmeter
CA700 High-performance pressure calibrator
PRM Plant Resource Manager for asset management
UTAdvanced Advanced digital controllers for automation
FAQ

FAQs (Frequently Asked Questions)

Q1: What is the main function of the AAI141-H50?
A1: It is a 16-channel analog input module that converts 4-20mA signals from field devices for processing in Yokogawa’s control systems.

Q2: Does the AAI141-H50 support HART communication?
A2: Yes, it supports HART communication, enabling remote diagnostics and parameterization.

Q3: Can this module be used in safety systems?
A3: Yes, it is compatible with Yokogawa ProSafe-RS, which is used for safety instrumented functions (SIS).

Q4: Is the AAI141-H50 module isolated?
A4: No, it is a non-isolated analog input module. For isolated versions, consider AAI143-H00.

Q5: What is the power consumption of the module?
A5: It consumes 310mA (5V DC) and 450mA (24V DC).

Q6: What are the dimensions and weight of the module?
A6: The module has a compact design of 107.5 × 32.8 × 130 mm and weighs 0.2 kg.

Q7: Can it be used in redundant configurations?
A7: Yes, it supports dual-redundant operation for enhanced reliability.

Q8: What field devices can be connected to this module?
A8: It can connect to transmitters, sensors, and other 4-20mA field devices.

Q9: How is the module installed?
A9: It uses pressure clamp terminals, KS cables, and MIL connectors for installation.

Q10: What Yokogawa systems is this module compatible with?
A10: It integrates seamlessly with CENTUM VP, ProSafe-RS, and STARDOM FCN/FCJ.
