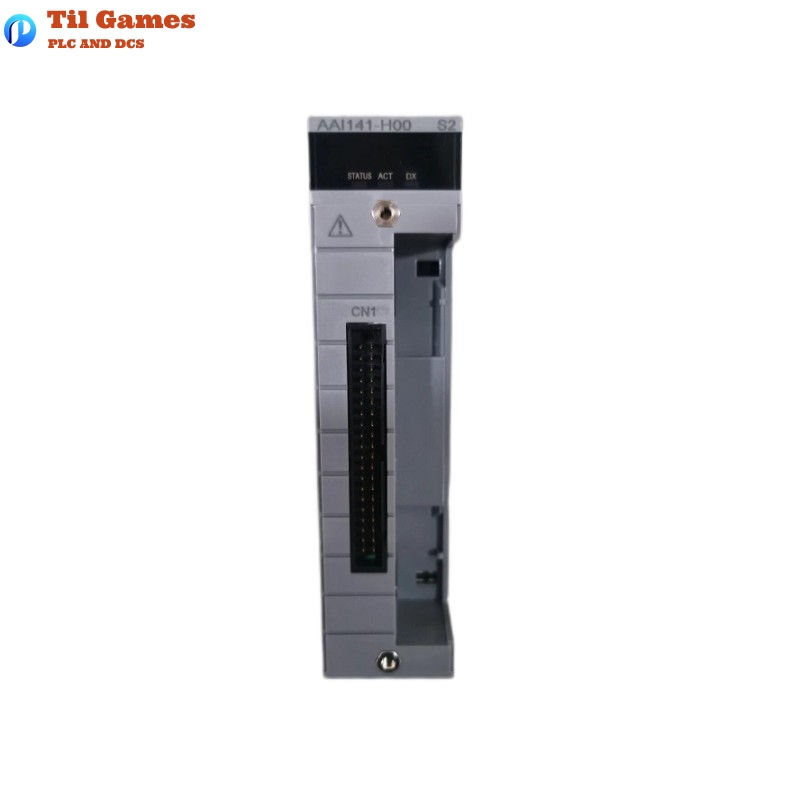

Technical Specifications – Yokogawa AAI141-H00/K4A00 Analog Input Module
| Item | Specification |
|---|---|
| Model | AAI141-H00/K4A00 |
| Type | Analog Input Module (Non-Isolated) |
| Input Channels | 16 channels |
| Input Signal | 4 to 20 mA DC |
| Input Resistance (Power ON) | 400 Ω (at 20 mA) to 1000 Ω (at 4 mA) |
| Input Resistance (Power OFF) | 500 kΩ or larger |
| Input Accuracy | ±16 µA |
| Allowable Input Current | 27 mA |
| Allowable Common Mode Voltage | ±1 V or less |
| Transmitter Power Supply | 14.8 V or higher (at 20 mA), 26.4 V or less (at 0 mA), Output limit: 27 mA |
| Setting for Transmitter Type | Selectable per channel via setting pin (2-wire / 4-wire) |
| Data Update Period | 10 ms |
| Step Response Time | 100 ms |
| Ambient Temperature Drift | ±16 µA/10 °C |
| HART Communication | Supported (with HART devices on ER/ESB bus, firmware rev. 2 or higher) |
| Power Consumption | 310 mA (5 V DC), 450 mA (24 V DC) |
| External Connection | KS Cable Interface (with /K4A00 option) |
| Weight | 0.2 kg |
| Dimensions (W × H × D) | 32.8 × 130 × 107.5 mm (W × D × H) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of signals does the AAI141-H00/K4A00 module accept?
A1: It accepts 4 to 20 mA DC analog current signals from field transmitters.
Q2: How many channels are available on the AAI141 module?
A2: The module provides 16 analog input channels.
Q3: Is the AAI141-H00/K4A00 module isolated?
A3: No, the AAI141 is a non-isolated analog input module.
Q4: Can this module be used with 2-wire and 4-wire transmitters?
A4: Yes, each channel can be configured individually for 2-wire or 4-wire transmitter operation using setting pins.
Q5: What type of external connection is provided with the /K4A00 option?
A5: The /K4A00 option provides a KS Cable Interface Adapter (ATK4A-00).
Q6: Does this module support HART communication?
A6: Yes, it supports HART communication when connected to compatible node units and firmware versions.
Q7: What is the input accuracy of the AAI141-H00/K4A00?
A7: The accuracy is ±16 microamperes (µA).
Q8: What is the module’s physical size and weight?
A8: It measures 107.5 × 32.8 × 130 mm (H × W × D) and weighs 0.2 kg.
