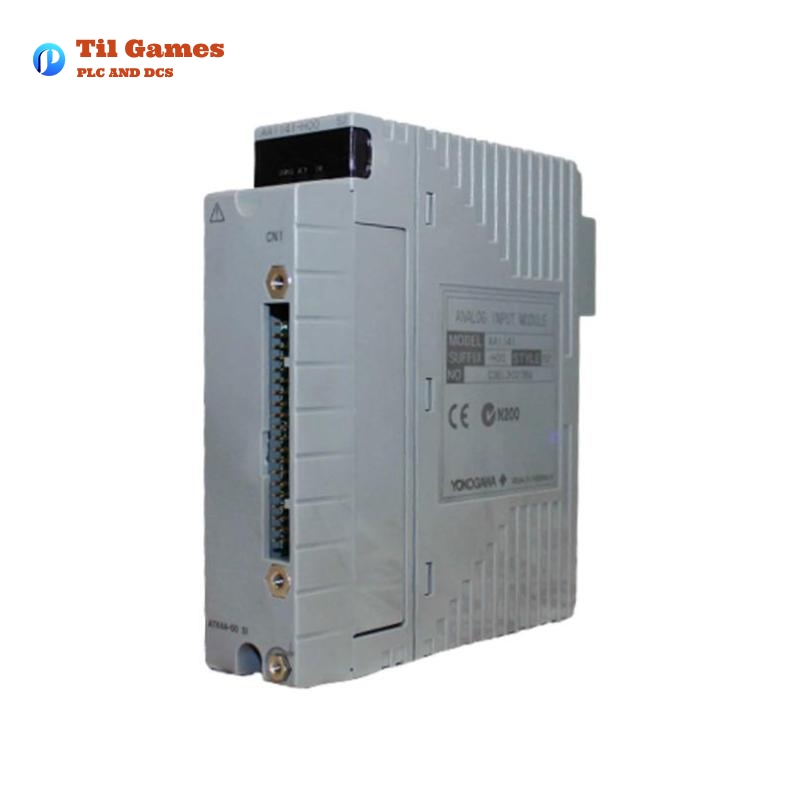

Yokogawa AAI141 Analog Input Module

Yokogawa AAI141 Analog Input Module

Manufacturer:Yokogawa

Product Number:AAI141

Product Type:Analog Input Module

Origin:Japan

Dimensions:107.5×32.8×130 mm

Weight:0.2 kg

Views:34

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/AAI141-2-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI141-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI141-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI141.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

1. Product Specifications

The specifications of the Yokogawa AAI141 Analog Input Module are listed below:

Parameter Specification
Model Number AAI141
Input Channels 16, Non-Isolated
Input Signal Types 4 to 20 mA DC, 1 to 5 V DC
Accuracy ±16 µA (Current), ±4 mV (Voltage)
Input Resistance (Power ON) 400 Ω (at 20 mA), 1000 Ω (at 4 mA)
Input Resistance (Power OFF) 500 kΩ or larger
Allowable Input Current/Voltage 27 mA (Current), ±7.5 V (Voltage)
Data Update Period 10 ms
Step Response Time 100 ms
Maximum Current Consumption 310 mA (5 V DC), 450 mA (24 V DC)
Transmitter Power Supply 14.8 V or higher (at 20 mA), 26.4 V or less (at 0 mA)
External Connection Pressure Clamp Terminal, KS Cable, MIL Connector Cable
HART Communication Available (for current input)
Dimensions 107.5 × 32.8 × 130 mm
Weight 0.2 kg

2. Product Introduction

The Yokogawa AAI141 Analog Input Module is a high-performance module designed for field input signal processing. It is used in distributed control systems (DCS) and programmable logic controllers (PLC) to receive analog signals from various sensors and transmitters.

This module converts field analog signals into internal digital data for control processing. It supports both current (4–20 mA) and voltage (1–5 V) signals, making it versatile for different industrial applications. Additionally, it provides high accuracy and fast response times, ensuring real-time and precise data acquisition.


3. Product Applications

The AAI141 Analog Input Module is widely used in industrial automation and process control applications, including:

  • Power Plants – For monitoring and controlling temperature, pressure, and flow.
  • Chemical and Petrochemical Plants – For precise measurement of fluid levels, pressure, and temperature.
  • Oil and Gas – Used in drilling, refining, and distribution systems for monitoring critical process variables.
  • Water and Wastewater Treatment – For level and flow control in treatment plants.
  • Pharmaceutical Industry – Ensures accurate monitoring of temperature and pressure in controlled environments.
  • Manufacturing and Industrial Automation – Provides real-time monitoring of process variables.

4. Product Advantages

The Yokogawa AAI141 Analog Input Module offers several advantages:

  1. High Precision and Stability – Offers high accuracy (±16 µA for current input, ±4 mV for voltage input), ensuring reliable data acquisition.
  2. Fast Response Time – With a 10 ms data update period, it ensures real-time monitoring and control.
  3. Multiple Signal Compatibility – Supports both 4–20 mA current and 1–5 V voltage signals, making it versatile for different industrial applications.
  4. Redundant Configuration Support – Ensures high availability and reliability in critical processes.
  5. HART Communication Support – Allows integration with HART-enabled field devices, providing advanced diagnostic capabilities.
  6. Compact and Lightweight Design – With a compact form factor (107.5 × 32.8 × 130 mm) and weight of 0.2 kg, it is easy to install and maintain.
  7. Wide Industrial Compatibility – Designed to work with Yokogawa’s DCS and FCS systems, ensuring seamless integration.
  8. Long-Term Durability – Built with high-quality components for extended operational life.

5. Latest News Headlines

  1. “Yokogawa Expands Its Industrial Automation Portfolio with Advanced AAI141 Modules”
  2. “Enhanced Precision: Yokogawa AAI141 Receives Industry Recognition for Performance”
  3. “Yokogawa Strengthens its Analog I/O Capabilities with the AAI141 Module”
  4. “AAI141: A Reliable Solution for High-Precision Analog Signal Processing”
  5. “New HART Communication Features in Yokogawa AAI141 Module”

6. Recommended Related Models

Below are 10 related models in the same series or with similar functionalities:

Model Number Description
AAI135 Analog Input Module, 8-channel, Isolated
AAI143 Analog Input Module, 16-channel, Isolated
AAV141 Voltage Input Module, 16-channel, Non-Isolated
AAB141 Mixed Analog Input Module, 16-channel, Non-Isolated
AAI841 Analog I/O Module, 8-channel input/output, Non-Isolated
AAI835 Analog I/O Module, 4-channel input/output, Isolated
AAV144 Voltage Input Module, -10 to +10 V, 16-channel, Isolated
AAB842 Mixed Analog I/O Module, 8-channel input/output, Non-Isolated
AAI543 Analog Output Module, 16-channel, Isolated
AAV542 Voltage Output Module, -10 to +10 V, 16-channel, Non-Isolated

7. Recommended Popular Yokogawa Models

Below are 10 of the most popular Yokogawa models used in industrial automation:

Model Number Description
CP451-10 Control Processor for Yokogawa’s DCS
CP461-10 High-performance Control Processor
STARDOM FCN-500 Advanced Network-based Controller
FA-M3V High-speed Programmable Logic Controller (PLC)
YHC5150X HART Communicator for field devices
YTA320 Temperature Transmitter with HART protocol
EJA530E Differential Pressure Transmitter
EJX110A High-Performance Pressure Transmitter
DX1000 Data Acquisition Recorder
CENTUM VP Integrated Distributed Control System (DCS)
FAQ

Frequently Asked Questions (FAQ)

Here are 10 frequently asked questions about the Yokogawa AAI141 Analog Input Module:

Q1: What is the input type supported by the AAI141?

A1: The module supports 4–20 mA DC current input and 1–5 V DC voltage input.

Q2: Is the AAI141 module isolated?

A2: No, the AAI141 is a non-isolated module.

Q3: Can this module be used in a redundant configuration?

A3: Yes, the AAI141 module supports dual-redundant configurations.

Q4: What is the accuracy of the module?

A4: The accuracy is ±16 µA for current input and ±4 mV for voltage input.

Q5: Does the AAI141 module support HART communication?

A5: Yes, HART communication is supported when using current input.

Q6: What is the response time of the module?

A6: The step response time is 100 ms.

Q7: What is the size and weight of the AAI141 module?

A7: The dimensions are 107.5 × 32.8 × 130 mm, and the weight is 0.2 kg.

Q8: What kind of external connections are available?

A8: The module supports pressure clamp terminals, KS cables, and MIL connectors.

Q9: What is the maximum current consumption?

A9: The module consumes 310 mA (5 V DC) and 450 mA (24 V DC).

Q10: What are the compatible field control units (FCS)?

A10: The AAI141 module works with AFV30, AFV40, AFG30, AFG40, AFF50, and other compatible systems.
