Yokogawa AAI135-S50 Analog Input Module

Yokogawa AAI135-S50 Analog Input Module

Manufacturer:Yokogawa

Product Number:AAI135-S50

Product Type:Analog Input Module

Origin:Japan

Dimensions:107.5×32.8×130 mm

Weight:0.3 kg

Views:39

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description

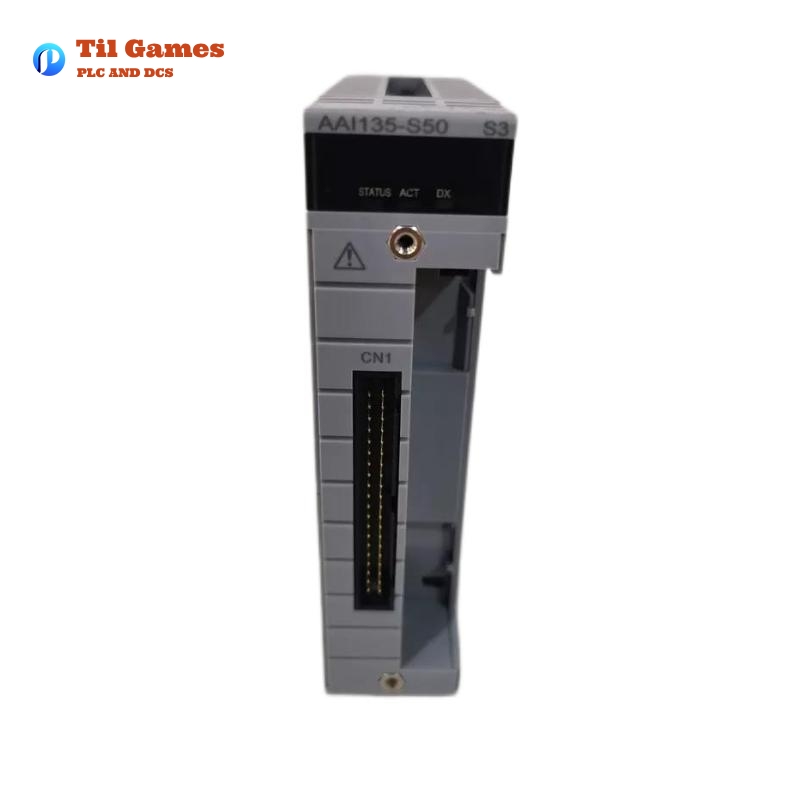

https://www.tilgames.com/wp-content/uploads/2025/03/AAI135-S50-2-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI135-S50-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI135-S50-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI135-S50.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Specifications

Item Specifications
Model AAI135-S50
Number of I/O channels 8-channel input, isolated channels
I/O signal 4 to 20 mA
Allowable input current 25 mA
Withstanding voltage Between input and system: 500 VAC for 1 minute
Between input channels: 500 VAC for 1 minute
Input resistance (Power ON) 290 Ω (at 20 mA) to 450 Ω (at 4 mA)
Input resistance (Power OFF) 500 kΩ or larger
Allowable load resistance
Circuit-open detection
Accuracy ±16 µA
Data update period 10 ms
Transmitter power supply 15.0 V or higher (at 20 mA)
29.3 V or less (at 0 mA)
Temperature drift ±16 µA/10 °C
Maximum current consumption 360 mA (5 V DC), 450 mA (24 V DC)
External connection Pressure clamp terminal, MIL connector cable, dedicated cable (KS1)
HART communication Available
Suffix Codes -S: Standard type
5: With no explosion protection
0: Basic type
Dimensions (W×H×D) 107.5 × 32.8 × 130 mm
Weight 0.3 kg

Product Introduction

The Yokogawa AAI135-S50 is an 8-channel analog input module designed to receive 4 to 20 mA signals. It features channel-to-channel and system-to-field isolation, ensuring high reliability and signal integrity. The module is equipped with HART communication, allowing seamless integration with smart instrumentation.

This module is widely used in industrial automation and process control systems, offering high accuracy, low temperature drift, and fast data update rates. It can be deployed in dual-redundant configurations, ensuring continuous operation in critical applications.


Product Applications

The AAI135-S50 analog input module is ideal for applications that require accurate and isolated current signal measurement, including:

  1. Process Control Systems – Used in DCS and PLC systems for monitoring industrial processes.
  2. Oil and Gas Industry – Suitable for monitoring pressure, flow, and level sensors.
  3. Chemical and Pharmaceutical Plants – Ensures precise data acquisition from temperature and pH sensors.
  4. Power Generation – Integrated into SCADA systems for real-time monitoring.
  5. Water and Wastewater Treatment – Used for monitoring flow and chemical dosing processes.
  6. Manufacturing Automation – Provides accurate current signal acquisition for automated production lines.
  7. Metallurgy and Mining – Used in harsh environments where reliable signal transmission is crucial.
  8. Food and Beverage Industry – Helps maintain strict process control for quality assurance.

Product Advantages

  1. High Accuracy: ±16 µA ensures precise signal measurement.
  2. Isolated Channels: Reduces signal interference and enhances safety.
  3. HART Communication Support: Enables smart device diagnostics and configuration.
  4. Fast Data Update (10 ms): Ensures real-time monitoring in high-speed processes.
  5. Low Temperature Drift (±16 µA/10°C): Provides stable performance in varying environments.
  6. Dual-Redundant Configuration Support: Enhances system reliability and minimizes downtime.
  7. Compact Design (107.5×32.8×130 mm): Saves installation space.
  8. Robust Build Quality: Designed to withstand industrial conditions.
  9. Flexible Wiring Options: Supports various connection types, including pressure clamp terminals.
  10. Easy Integration: Compatible with Yokogawa control systems and other industrial setups.

Latest News Related to AAI135-S50

  1. Yokogawa Expands Its Industrial Automation Portfolio with Advanced Analog Input Modules
  2. Enhancing Process Control: Yokogawa AAI135-S50 Introduces Advanced Signal Isolation
  3. Yokogawa Introduces Next-Generation Redundant Analog Input Modules
  4. AAI135-S50: A Game Changer in Industrial Analog Signal Processing
  5. New Innovations in HART Communication for Yokogawa Input Modules
  6. Why AAI135-S50 is the Preferred Choice for Industrial Process Monitoring
  7. Yokogawa’s Smart Analog Input Modules: Improved Accuracy and Reliability
  8. Yokogawa Strengthens DCS Integration with Enhanced I/O Modules
  9. Future of Industrial Automation: Yokogawa’s Advanced Signal Processing
  10. Customer Success Story: How AAI135-S50 Enhanced Process Efficiency

Recommended Similar Models

Model Description
AAI135 Standard Analog Input Module
AAI143 High-Density Analog Input Module
AAI835 Isolated Analog Input Module with Enhanced Protection
AAI841 Low-Power Analog Input Module
AAI143-H00 Analog Input Module with Extended HART Capabilities
AAI841-S50 Advanced Safety-Certified Analog Input Module
AAI835-H50 Explosion-Proof Analog Input Module
AAI543 Multi-Channel Analog Input Module
AAI851 High-Precision Analog Input Module
AAI631 Dual-Redundant Analog Input Module

Popular Yokogawa Models

Model Description
AAI135-S50 8-Channel Isolated Analog Input Module
AAI143 High-Density 16-Channel Analog Input Module
AAI835 Isolated Analog Input Module
ADV151-P50 Digital Output Module
ALR121-S00 Relay Output Module
CP461 High-Performance Processor Module
FCS-100 Field Control Station for Large-Scale Systems
PW482-50 Power Supply Module
STARDOM FCN-500 Network-Based Controller
FCU120 Field Control Unit
FAQ

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the AAI135-S50 module?

A1: The AAI135-S50 is an 8-channel analog input module that receives 4 to 20 mA current signals with channel-to-channel and system isolation.

Q2: Does the AAI135-S50 support HART communication?

A2: Yes, it supports HART communication, allowing integration with smart field devices.

Q3: What is the power supply requirement for this module?

A3: It requires 5 V DC (360 mA) or 24 V DC (450 mA).

Q4: Can the AAI135-S50 be used in redundant configurations?

A4: Yes, it supports dual-redundant configurations for increased reliability.

Q5: What is the update rate of the module?

A5: The data update period is 10 milliseconds.

Q6: What kind of isolation does the module provide?

A6: It provides 500 VAC isolation between channels and between the system and field.

Q7: What is the accuracy of the AAI135-S50 module?

A7: The accuracy is ±16 µA.

Q8: What are the physical dimensions of this module?

A8: The module measures 107.5 × 32.8 × 130 mm and weighs 0.3 kg.

Q9: Can this module be used in hazardous areas?

A9: The AAI135-S50 does not have explosion protection, but Yokogawa offers other explosion-proof models.

Q10: What are the available wiring options?

A10: It supports pressure clamp terminals, MIL connector cables, and dedicated KS1 cables.
