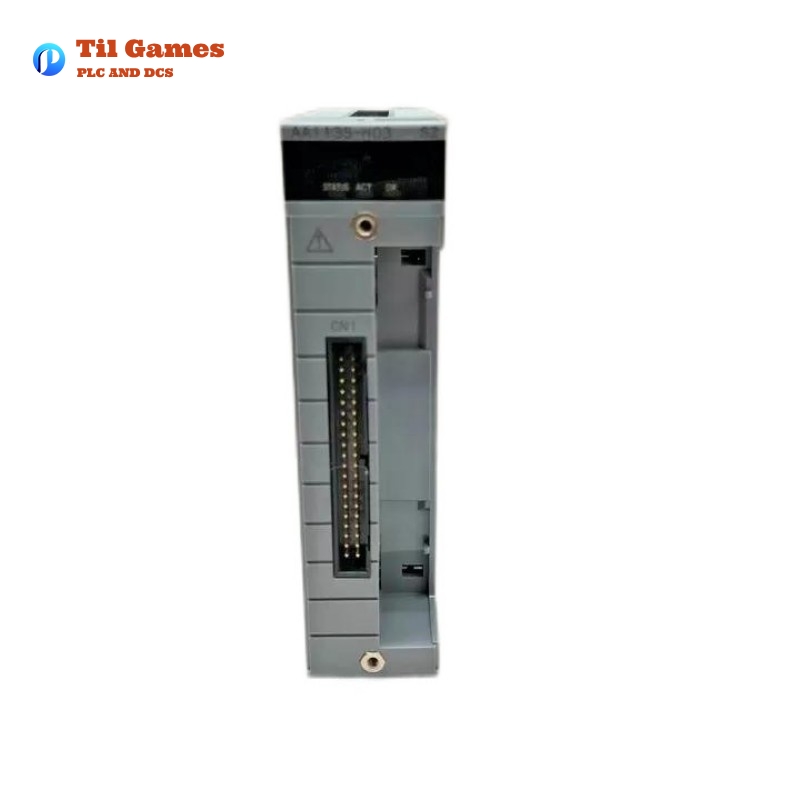

Yokogawa AAI135-H03 Analog Input Module

Yokogawa AAI135-H03 Analog Input Module

Manufacturer:Yokogawa

Product Number:AAI135-H03

Product Type:Analog Input Module

Origin:Japan

Dimensions:107.5×32.8×130 mm

Weight:0.3 kg

Views:34

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/AAI135-H03-2-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI135-H03-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI135-H03-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI135-H03.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction:

The Yokogawa AAI135-H03 Analog Input Module is a high-performance device designed for receiving 4-20 mA analog signals from field devices. It is an 8-channel input module with isolated channels, offering precise signal processing for industrial automation applications. It supports digital communication via HART protocol and is equipped with ISA Standard G3 options to ensure versatility in harsh environments. The module can operate within a wide temperature range (-20 to 70°C) and is suitable for use in both standard and dual-redundant configurations.

Applications:

  • Industrial Automation: The AAI135-H03 is ideal for controlling and monitoring systems where analog 4-20 mA signals are used, such as in process industries (oil & gas, chemicals, power plants).
  • Temperature and Pressure Measurement: It is commonly used in temperature and pressure transmitters where accurate signal transmission is critical.
  • Redundant Systems: The module supports dual-redundant configurations for systems requiring higher availability and reliability.
  • Remote Monitoring: For systems that require remote control and monitoring, the HART protocol communication provides additional flexibility in industrial networks.

Product Advantages:

  • High Accuracy: With an accuracy of ±16 µA, the AAI135-H03 provides reliable signal processing for critical applications.
  • Isolation: The module offers electrical isolation both between the input and the system, and between each input channel, ensuring protection against electrical faults and improving safety.
  • HART Protocol Support: HART communication provides additional data such as device diagnostics, making the module suitable for advanced industrial networks.
  • Wide Temperature Range: It can operate in a temperature range from -20 to 70°C, making it suitable for use in harsh environmental conditions.
  • Dual Redundancy: Ideal for high-availability configurations where failure tolerance is critical.
  • Compact Design: Its compact size of 107.5×32.8×130 mm makes it easy to install in crowded control panels.

Latest Product News:

  • “Yokogawa AAI135-H03 Now Supports Advanced Diagnostics with HART Protocol Integration”
  • “New Temperature Range for AAI135-H03 Expands Applications in Harsh Environments”
  • “Yokogawa’s AAI135-H03 Analog Input Module Now Available with Dual-Redundant Configuration”
  • “Improved Signal Accuracy in Yokogawa AAI135-H03 for Precise Process Control”

Recommended Related Models

Model Description Key Features
AAI135-H02 4-20 mA Input Module with 4 isolated channels 4 isolated channels, HART communication, 20-70°C range
AAI135-H01 Basic 4-20 mA Input Module with 4 channels Simple design, wide temperature range, HART-enabled
AAI145-H03 High-accuracy 4-20 mA Input Module, with extended temperature range High accuracy, HART communication, extended range
AAI155-H03 Analog Input Module for differential signals Differential input, HART-enabled, wide temperature range
AAI130-H03 8-channel isolated 4-20 mA input module 8 isolated channels, HART communication, standard range
AAI135-H05 Dual-redundant 8-channel input module Dual-redundant, HART communication, wide temperature range
AAI135-H06 High-precision 8-channel input module with advanced diagnostics High precision, advanced diagnostics, HART-enabled
AAI135-H08 8-channel module for high-voltage signals High voltage tolerance, HART communication, isolated channels
AAI155-H05 Multi-signal input module for temperature and pressure sensors Multi-signal support, HART communication, isolated channels
AAI145-H02 4-20 mA module with special field device integration Field device integration, HART communication, standard configuration

Popular Yokogawa Models

Model Description Key Features
AAI143 4-20 mA Input Module 4 isolated channels, HART-enabled, simple integration
AAI135-H01 Basic 4-20 mA Input Module with 4 channels 4 channels, HART communication, affordable price
AAI143-H02 8-channel Input Module with digital communication 8 channels, HART-enabled, high accuracy
ADMAG AXF Magnetic flowmeter for industrial applications Advanced diagnostics, accurate flow measurement
STARDOM FCN Control Network for Distributed Automation High-performance control, supports large networks
CS3000 Process Automation System Real-time monitoring, process control capabilities
ProSafe-RS Safety Instrumented System (SIS) Safety integration, reliable operation
DPharp EJA Differential Pressure Transmitter High-accuracy, rugged design, advanced diagnostics
EJX110A Digital Pressure Transmitter with HART Precise pressure measurement, HART-enabled
EJA530E Industrial Pressure Transmitter Cost-effective, high-precision pressure measurement
FAQ

Frequently Asked Questions (FAQ)

Q1: What is the input signal range for the AAI135-H03 module?
A1: The input signal range for the AAI135-H03 module is 4 to 20 mA.

Q2: How many channels does the AAI135-H03 module support?
A2: The module supports 8 isolated input channels.

Q3: Does the AAI135-H03 module support HART communication?
A3: Yes, the module supports HART communication, allowing for additional data and diagnostics.

Q4: What is the accuracy of the AAI135-H03 module?
A4: The accuracy of the module is ±16 µA.

Q5: What is the allowable input current for the module?
A5: The allowable input current is 25 mA.

Q6: What is the withstanding voltage for the module?
A6: The withstanding voltage is 500 VAC for 1 minute, both between input and system and between input channels.

Q7: What is the operating temperature range for the AAI135-H03 module?
A7: The module operates within a temperature range of -20 to 70°C.

Q8: What is the maximum current consumption for the module?
A8: The maximum current consumption is 360 mA at 5 V DC and 450 mA at 24 V DC.

Q9: How is the AAI135-H03 module connected to external devices?
A9: The module can be connected using pressure clamp terminals, MIL connectors, or dedicated cables (KS1).

Q10: What are the dimensions and weight of the AAI135-H03 module?
A10: The dimensions are 107.5×32.8×130 mm, and the weight is 0.3 kg.
