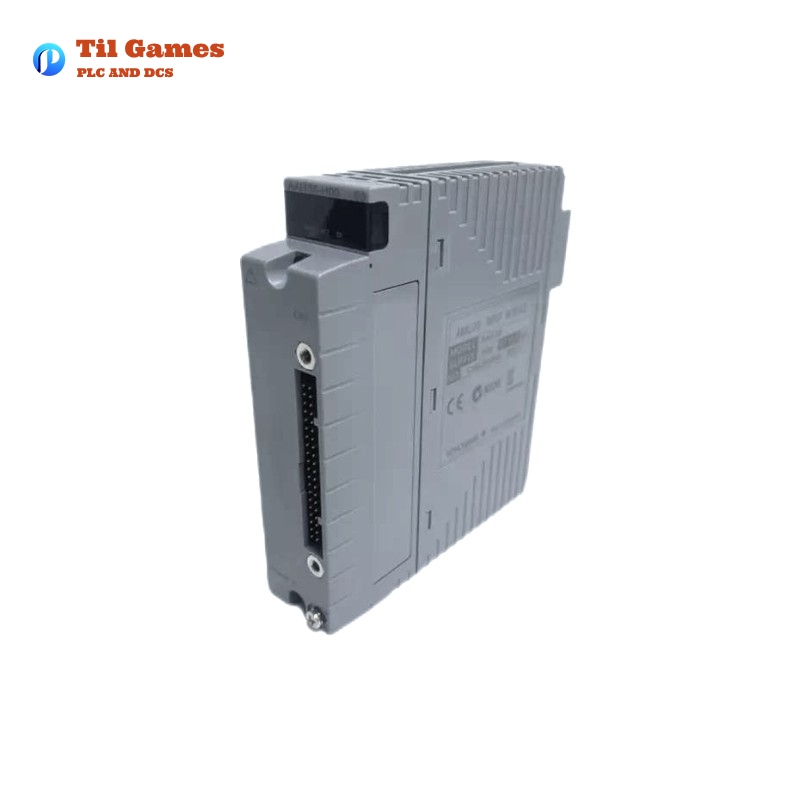

Yokogawa AAI135-H00 Analog Input Module

Yokogawa AAI135-H00 Analog Input Module

Manufacturer:Yokogawa

Product Number:AAI135-H00

Product Type:Analog Input Module

Origin:Japan

Dimensions:107.5×32.8×130 mm

Weight:0.3 kg

Views:37

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/AAI135-H00-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI135-H00-3.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI135-H00-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/AAI135-H00-1.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

The Yokogawa AAI135-H00 Analog Input Module is a highly reliable and precise solution for industrial applications where 4 to 20 mA current signals need to be monitored and controlled. Designed with eight isolated channels, the AAI135-H00 ensures safe and accurate input signal processing in a wide range of automation environments. With its ability to withstand high voltages, this module provides robust protection and ensures the stability of the connected system. The inclusion of HART communication capability further enhances its versatility, enabling advanced diagnostics and monitoring.

Applications

The Yokogawa AAI135-H00 Analog Input Module is ideal for use in industries such as chemical processing, oil and gas, power generation, and manufacturing where accurate monitoring of analog signals is critical. Common applications include:

  • Process control systems
  • Data acquisition and monitoring
  • Equipment monitoring and diagnostics
  • Industrial automation systems
  • Remote monitoring and control via HART protocol

Advantages

  1. High Precision: The AAI135-H00 provides an accuracy of ±16 µA, ensuring that the system operates with reliable and precise data.
  2. Isolated Channels: Each input channel is isolated, reducing the risk of electrical noise and interference, which is critical in high-precision environments.
  3. Wide Voltage Range: Withstanding voltages of 500 VAC between input and system as well as between input channels provide added protection.
  4. Dual Redundant Capability: The module supports dual-redundant configurations, ensuring high availability and reliability.
  5. HART Communication Support: This feature enables digital communication with field devices for easier configuration and diagnostics.
  6. Wide Temperature Drift Tolerance: Temperature drift of ±16 µA/10 °C ensures that performance remains stable across a broad temperature range.

Latest News

  • “Yokogawa Unveils New Analog Input Module with Advanced Isolation and HART Support”
  • “Yokogawa AAI135-H00 Enhances Industrial Automation with Precision and Reliability”
  • “The Future of Process Control: Yokogawa’s New 8-Channel Input Module Offers Unmatched Performance”
  • “Yokogawa’s AAI135-H00: A Leap Forward in Field Device Integration”

Specifications

Item Specification
Model AAI135-H00
Number of I/O Channels 8-channel input, isolated channels
I/O Signal 4 to 20 mA
Allowable Input Current 25 mA
Withstanding Voltage Between input and system: 500 VAC (1 minute)
Between input channels: 500 VAC (1 minute)
Input Resistance Power ON: 290 Ω (at 20 mA) to 450 Ω (at 4 mA)
Power OFF: 500 kΩ or larger
Accuracy ±16 µA
Data Update Period 10 ms
Transmitter Power Supply 15.0 V or higher (at 20 mA), 29.3 V or less (at 0 mA)
Temperature Drift ±16 µA/10 °C
Maximum Current Consumption 360 mA (5 V DC), 450 mA (24 V DC)
Weight 0.3 kg
Dimensions 107.5×32.8×130 mm
External Connection Pressure clamp terminal, MIL connector cable, dedicated cable (KS1)
HART Communication Available
Suffix Codes -H: With digital communication (HART protocol), 0: Basic type

Related and Recommended Models

Model Description Specifications
AAI135-H01 8-channel, isolated analog input module with HART communication Same as AAI135-H00 with added HART support
AAI115-H00 4-channel analog input module, basic type 4 channels, 4 to 20 mA input, basic functionality
AAI145 16-channel analog input module with dual-redundant capability 16 channels, isolated, HART communication
AAI145-H00 16-channel analog input module with HART 16 isolated channels, advanced diagnostics via HART
AAI155 8-channel analog input module with enhanced accuracy Enhanced accuracy and temperature drift performance
AAI120 8-channel, dual-redundant input module Dual-redundant, 4 to 20 mA input, for critical applications
AAI105-H00 4-channel analog input with HART support Compact design with HART communication
AAI125 8-channel input module with fault detection Includes fault detection capabilities
AAI160 16-channel modular analog input system Modular design, scalable input channels
AAI130 8-channel, industrial-grade analog input module Industrial grade for tough environments

Popular Models from Yokogawa

Model Description Specifications
DPharp EJA series Differential pressure transmitter High accuracy, wide range, and HART communication support
EJX series Pressure transmitter Advanced diagnostics, high precision, HART compatible
ProSafe-RS Safety instrumented system controller High reliability, safety certified, communication via HART
STARDOM FCN series Distributed control system Modular, flexible, and network-integrated DCS
DL750 Data logger for industrial applications High-performance logging with advanced connectivity options
OpreX AAS Advanced automatic analyzer system Used in chemical and pharmaceutical processes
UT series Ultrasonic flow meters High accuracy and stable measurements in diverse conditions
PULSAR X series Signal conditioning module for harsh environments Robust for extreme industrial settings
F3 series Field devices for control loops Advanced diagnostics and control capabilities
X-STREAM Real-time data stream processing and visualization tool Flexible real-time analysis of industrial data
