Product Overview

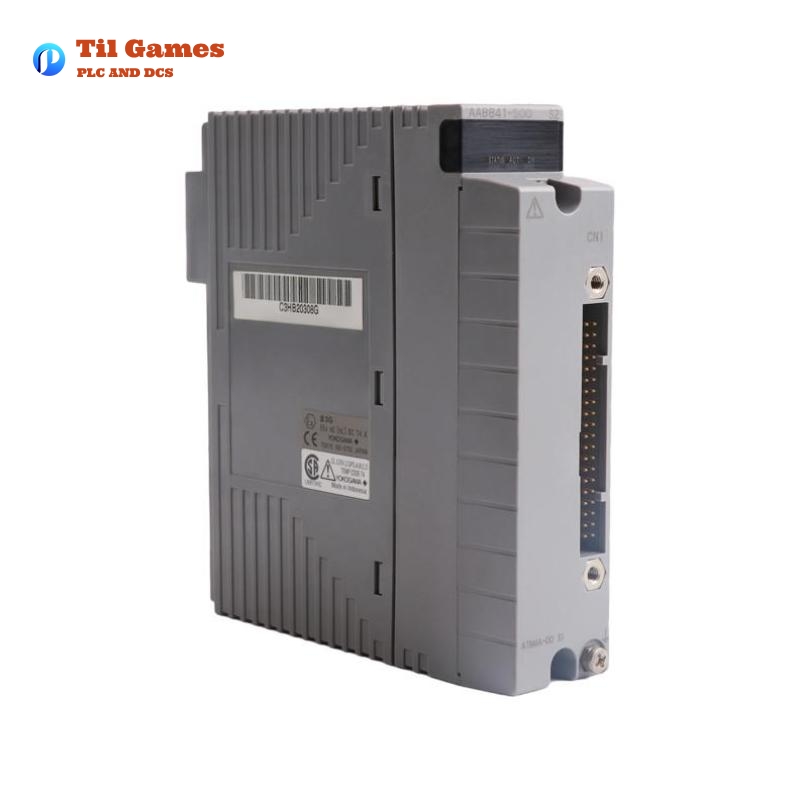

The Yokogawa AAB841-S00 Analog I/O Module is a non-isolated module designed for analog signal processing in industrial automation systems. It features 8 input channels and 8 output channels, capable of handling 1 to 5V DC inputs and 4 to 20mA DC outputs. The module is optimized for use in field control systems (FCS), facilitating efficient data acquisition and process control.
This module is commonly deployed in process industries, including oil & gas, chemical, power generation, and water treatment, where precise and stable analog signal handling is required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAB841-S00 |
| Number of Channels | 8 Inputs / 8 Outputs |
| Input Signal | 1 to 5V DC |
| Output Signal | 4 to 20mA DC |
| Allowable Input Voltage | ±7.5V DC |
| Allowable Load Resistance | 0 to 750Ω |
| Accuracy | Input: ±4mV / Output: ±48µA |
| Data Update Period | 10ms |
| Step Response Time | Input: 100ms / Output: 40ms |
| Transmitter Power Supply | 14.8V to 26.4V (Limited to 27mA) |
| Drift Due to Temperature | ±0.1% per 10°C |
| Maximum Power Consumption | 310mA (5V DC), 250mA (24V DC) |
| Weight | 0.3 kg |
| External Connection | Pressure clamp terminal, KS cable |
| HART Communication | Available (at current input & output) |
| Dimensions (mm) | 107.5 × 32.8 × 130 |
Applications
The Yokogawa AAB841-S00 module is widely used in industrial automation and process control systems for the following applications:
- Process Control Systems: Used in industrial automation for continuous and batch processes.
- Oil & Gas Industry: Supports monitoring and controlling pressure, temperature, and flow.
- Chemical Plants: Ensures precise control of chemical dosing and mixing.
- Power Generation: Used in power plants to regulate and monitor fuel and water levels.
- Water & Wastewater Treatment: Controls pumps, valves, and chemical dosing systems.
- Food & Beverage Industry: Assists in process automation for consistent quality.
- Pharmaceuticals: Supports compliance with regulatory standards by maintaining stable process parameters.
- HVAC Systems: Controls environmental parameters in industrial facilities.
Key Advantages
- High Accuracy: Ensures precise signal conversion with minimal error.
- Fast Response Time: Data updates every 10ms, ensuring real-time monitoring.
- HART Communication Support: Enables advanced diagnostics and remote configuration.
- Compact and Lightweight: Small form factor with a weight of only 0.3 kg.
- Reliable and Durable: Designed for continuous operation in harsh environments.
- Compatible with Redundant Configurations: Enhances system reliability.
- Flexible Connectivity: Supports multiple connection types, including pressure clamp terminals and KS cables.
Latest Industry News on Yokogawa AAB841-S00
- “Yokogawa Enhances Industrial Automation Capabilities with Advanced Analog I/O Modules”
- “New Innovations in Process Control: The Role of Yokogawa AAB841-S00”
- “Optimizing Industrial Efficiency: How the AAB841-S00 Improves Process Control”
Similar or Related Yokogawa Models
| Model | Description |
|---|---|
| AAI841 | Analog I/O Module (8 input/8 output, 4-20mA) |
| AAB842 | Analog I/O Module (8 input/8 output, 1-5V/4-20mA) |
| AAI143 | Analog Input Module (16-channel, isolated, 4-20mA) |
| AAI543 | Analog Output Module (16-channel, isolated, 4-20mA) |
| AAV144 | Analog Input Module (-10 to +10V, 16-channel, isolated) |
| AAV542 | Voltage Output Module (-10 to +10V, 16-channel, non-isolated) |
| AAI135 | Analog Input Module (8-channel, isolated, 4-20mA) |
| AAI835 | Analog I/O Module (4 input/4 output, 4-20mA, isolated) |
| AAP135 | Pulse Input Module (8-channel, 0-10kHz, isolated) |
| AAP149 | Pulse Input Module (16-channel, 0-6kHz, non-isolated) |
Popular Yokogawa Models
| Model | Description |
|---|---|
| CENTUM VP | Integrated production control system |
| STARDOM FCN-RTU | Autonomous controller for remote applications |
| FA-M3V | High-speed, multi-CPU programmable controller |
| EJA110E | Pressure transmitter |
| YTA610 | Temperature transmitter |
| YFGW710 | Field Wireless Management Station |
| ADM52C | Digital input module |
| U1000 | Ultrasonic flowmeter |
| SMARTDAC+ GX10 | Data acquisition system |
| ProSafe-RS | Safety instrumented system |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of signals does the Yokogawa AAB841-S00 support?
A1: It supports 1 to 5V DC input signals and 4 to 20mA DC output signals.
Q2: Does the AAB841-S00 support HART communication?
A2: Yes, it supports HART communication for both current input and output.
Q3: Can this module be used in a redundant system?
A3: Yes, it can be configured in a dual-redundant setup for improved reliability.
Q4: What is the weight of the AAB841-S00?
A4: The weight of the module is 0.3 kg.
Q5: What are the supported connection types?
A5: It supports pressure clamp terminals, KS cables, and MIL connectors.
Q6: What is the accuracy of the input and output signals?
A6: Input accuracy is ±4mV, and output accuracy is ±48µA.
Q7: What is the update period of the module?
A7: The data update period is 10ms, ensuring real-time signal processing.
Q8: Can it operate in high-temperature environments?
A8: Yes, it is designed for industrial environments with temperature stability.
Q9: Is the module compatible with Yokogawa’s field control stations?
A9: Yes, it is compatible with AFV30S, AFV40D, AFV10S, and other FCS models.
Q10: What industries use the AAB841-S00 module?
A10: It is widely used in oil & gas, chemicals, power generation, water treatment, and manufacturing.
