Product Introduction

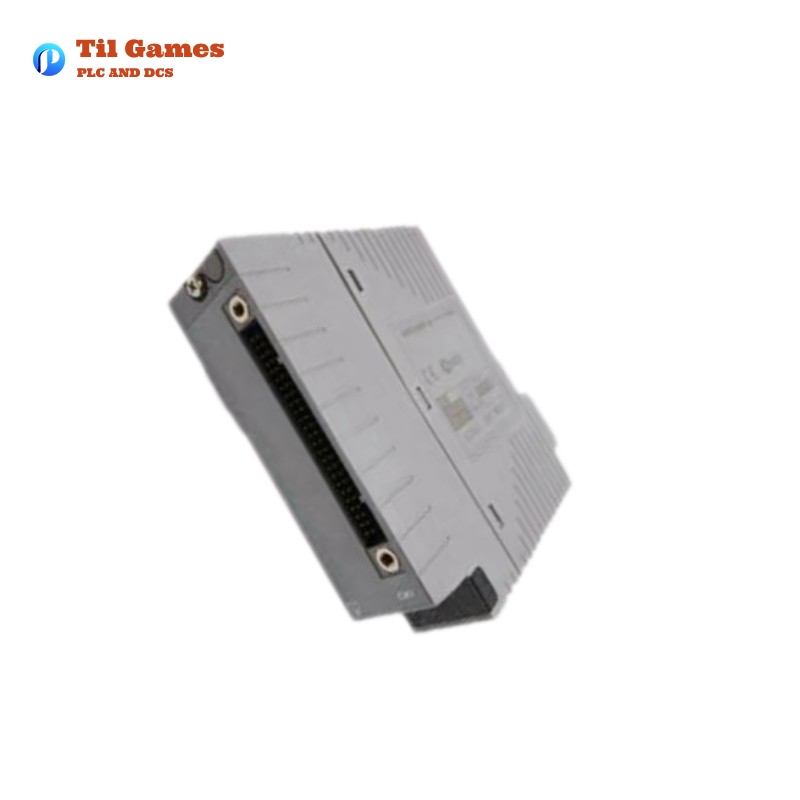

The Yokogawa A2SAM105 is a high-precision input adaptor designed for voltage and current signal acquisition in industrial control and automation applications. It is engineered to deliver accurate data acquisition, supporting both voltage input (0 to 10 V DC) and current input (4 to 20 mA DC). The device ensures stable operation with high input resistance and provides compatibility with HART7 communication for seamless integration into modern industrial systems. Its compact design allows for easy mounting on the base plate for adaptor (A2BN3D), making it an ideal choice for a wide range of industrial monitoring and control tasks.
Product Specifications
| Item | Specifications |
|---|---|
| Model | A2SAM105 |
| Input Signal | Voltage Input / Current Input |
| Rated Input Range (Max Accuracy Range) | 0 to 10 V DC (Voltage) / 4 to 20 mA DC (Current) |
| Input Resistance | 1 MΩ (Power-on), 100 kΩ or higher (Power-off) for voltage; 320 Ω (20mA) to 640 Ω (4mA) (Power-on), 100 kΩ or higher (Power-off) for current |
| Allowable Input Voltage/Current | 0 to 30 V DC (Voltage) / 0 to 40 mA DC (Current) |
| Transmitter Power Supply | Not applicable for voltage; 15.0 V DC min (20mA), 24.0 V DC max (0mA) for current |
| Accuracy | ±4 mV (23°C ±2°C), ±8 mV (0°C to 60°C), ±12 mV (-40°C to 70°C) for voltage; ±12 μA (23°C ±2°C), ±24 μA (0°C to 60°C), ±40 μA (-40°C to 70°C) for current |
| Data Update Period | 2 ms (for A2SAM105 alone) |
| Maximum Current Consumption | 24 V DC system power supply: 42 mA, 5 V DC internal power supply: 10 mA |
| Withstanding Voltage | 1500 VAC for 1 min, 42 V DC between input signal and system; 500 VAC for 1 min, 42 V DC between I/O adaptors |
| Mounting | Mounted on the base plate for adaptor (A2BN3D) |
| HART Communication Function | Not applicable for voltage input; HART7 supported for current input |
| Input Signal Setting | Configurable via software |
| Setting of 2-wire or 4-wire Transmitter | Not applicable for voltage; configurable for current input |
| Size | 130 × 40 × 12.8 mm |
| Weight | 0.10 kg |
| Current Limitation | Not applicable for voltage; 40 mA or lower for 2-wire current input |
