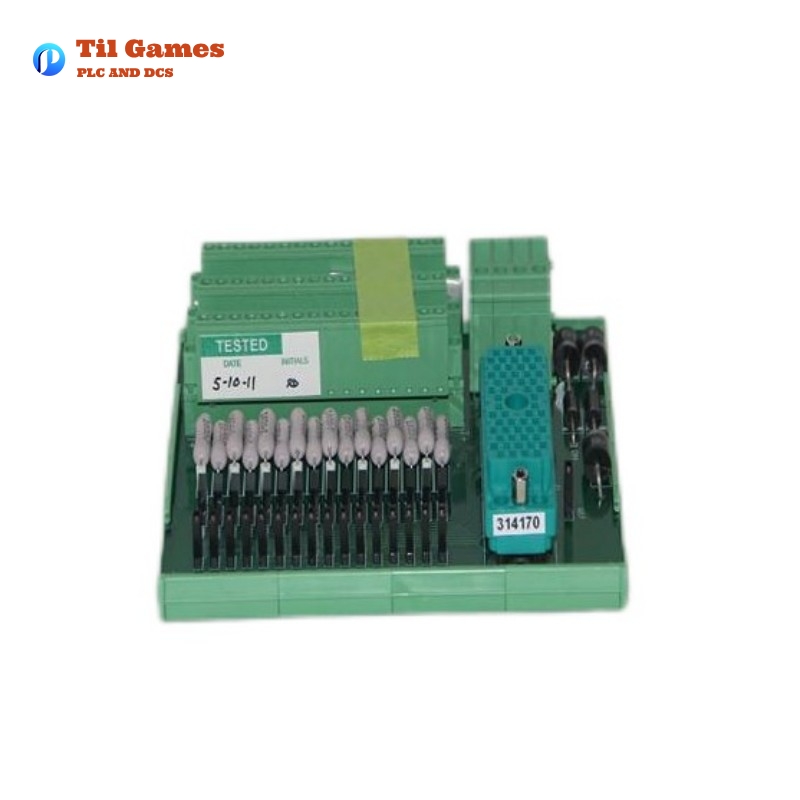

Detailed Product Overview: Triconex 9771-220 Analog Input Terminal Board

The Triconex 9771-220 Analog Input Terminal Board is designed to provide accurate and reliable voltage input signal processing for Triconex’s safety and control systems. This terminal board supports multiple analog input types, including voltage signals, and is used for interfacing with field devices. It ensures precise data transmission from field devices to the I/O modules, making it ideal for a wide range of industrial applications where measurement accuracy is crucial. With its compact design and rugged construction, it is well-suited for harsh industrial environments.

Product Specifications

Parameter Value
Model Number Triconex 9771-220
Part Number N/A
Dimensions (W x H x D) 114.3 × 145.52 × 107.95 mm
Weight 0.9 kg
Input/Output Type Analog Inputs (Voltage)
Mounting Type DIN Rail Compatible
Housing Material Durable Plastic
Environmental Rating Industrial, Harsh Conditions
Protection Features Over-current Protection

Features

  • High Precision: The 9771-220 ensures accurate analog signal processing, offering high resolution and low error margins, making it suitable for precision applications in industrial systems.

  • Signal Isolation: It provides excellent isolation between field signals and the control system, ensuring that noise or electrical interference does not impact the signal integrity.

  • Flexible Input Types: Supports a variety of input signals, including voltage signals, which provides flexibility for use in different industrial setups.

  • Rugged Design: Built to withstand challenging industrial environments, ensuring long-term performance and reliability.

  • Overcurrent Protection: Protects the terminal board and connected field devices from potential damage due to overcurrent situations.

Advantages

  • Enhanced Reliability: The 9771-220 ensures reliable operation by providing stable and accurate analog signal processing, reducing the risk of data errors or failures in critical applications.

  • Modular Design: The modular design makes it easy to integrate, maintain, and replace components without disrupting the overall system.

  • Space-Efficient: With its compact size, it is ideal for installations with limited space, allowing for efficient use of control panel real estate.

  • Safety Features: Built-in overcurrent protection ensures the safety of field devices and wiring, preventing damage from unexpected electrical faults.

  • Flexible Integration: Can be easily integrated with other Triconex modules, ensuring seamless communication within Triconex safety and control systems.

Applications

  • Industrial Automation: Used in industrial control systems to manage analog signals from field devices, enabling precise monitoring and control of processes.

  • Process Control: Ideal for applications in industries such as chemical processing, oil & gas, and power generation, where precise voltage measurement and control are essential.

  • Data Acquisition: Used in systems that require continuous monitoring and precise acquisition of analog voltage signals from various field devices.

  • Safety Systems: Ensures safe operation by providing accurate input data to the control systems, contributing to overall system safety in mission-critical applications.

Recent News and Updates

Recent updates to the Triconex analog input modules, including the 9771-220, have focused on improving modularity and reducing the overall size of the termination boards. Enhanced signal conditioning capabilities, along with better protection mechanisms, ensure the highest levels of reliability and flexibility for industrial control systems.


Recommended Similar or Related Models

Model Number Description Key Features
9762-210 Analog Input Panel (Voltage) High-density analog input, rugged construction
9760-410 Voltage Input Termination Panel Supports 4-20 mA inputs, robust design
9750-210 Voltage and Current Input Panel Versatile analog signal support
9771-210 Analog Input Termination Panel (Current) High precision, current input support
9761-210 16-Point Analog Input Panel Supports differential analog signals
9753-110 Voltage Input Termination Panel Precision voltage input handling

Recommended Popular Triconex Models

Model Number Description Key Features
3603E Digital Output Module, 120 VDC 16 points, high reliability, versatile
3611E Digital Output Module, 115 VAC 8 points, compact design, cost-effective
3805E Analog Output Module, 4-20 mA 8 points, precision control, reliable
3624E Digital Output Module, 24 VDC 16 points, energy-efficient
3601E Digital Output Module, 48 VDC 16 points, rugged design
3613E Low Power Digital Output Module 24 VDC, 8 points, energy-efficient design
FAQ

FAQ

Q1: What is the function of the Triconex 9771-220 Analog Input Terminal Board?

A1: The 9771-220 serves as a signal interface between field devices and Triconex control modules, processing analog voltage signals for accurate system control.

Q2: Can the 9771-220 handle both analog and digital signals?

A2: No, the 9771-220 is specifically designed for analog voltage inputs and does not support digital signals.

Q3: How does the 9771-220 ensure signal integrity?

A3: The board provides excellent signal isolation to minimize noise interference and ensure that signals are transmitted accurately to the control system.

Q4: Is the 9771-220 suitable for hazardous environments?

A4: Yes, the board is designed for industrial environments and can operate in harsh conditions, though for extreme hazardous locations, non-incendive versions are recommended.

Q5: What types of analog signals can the 9771-220 handle?

A5: The 9771-220 can handle a wide range of voltage inputs, making it suitable for applications where accurate analog voltage signal processing is needed.

Q6: What is the size and weight of the Triconex 9771-220?

A6: The dimensions are 114.3 × 145.52 × 107.95 mm, and it weighs 0.9 kg.

Q7: How does the modular design of the 9771-220 benefit maintenance?

A7: The modular design allows for easy replacement of components without disrupting the field wiring, minimizing downtime during maintenance.

Q8: Can the 9771-220 be used in remote monitoring applications?

A8: Yes, it is suitable for use in remote monitoring and control systems that require reliable analog input signal processing.
