Triconex 9662-610NJ 7400166-390 Digital Output Termination Panel

Triconex 9662-610NJ 7400166-390 Digital Output Termination Panel

Manufacturer:Triconex

Product Number:9662-610NJ 7400166-390

Product Type:Digital Output Termination Panel

Origin:USA

Dimensions:114.3 ×127 × 107.95 mm

Weight:0.38 kg

Views:17

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/9662-610NJ-7400166-390-4-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/9662-610NJ-7400166-390-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/9662-610NJ-7400166-390-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/9662-610NJ-7400166-390-3.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

Product Introduction

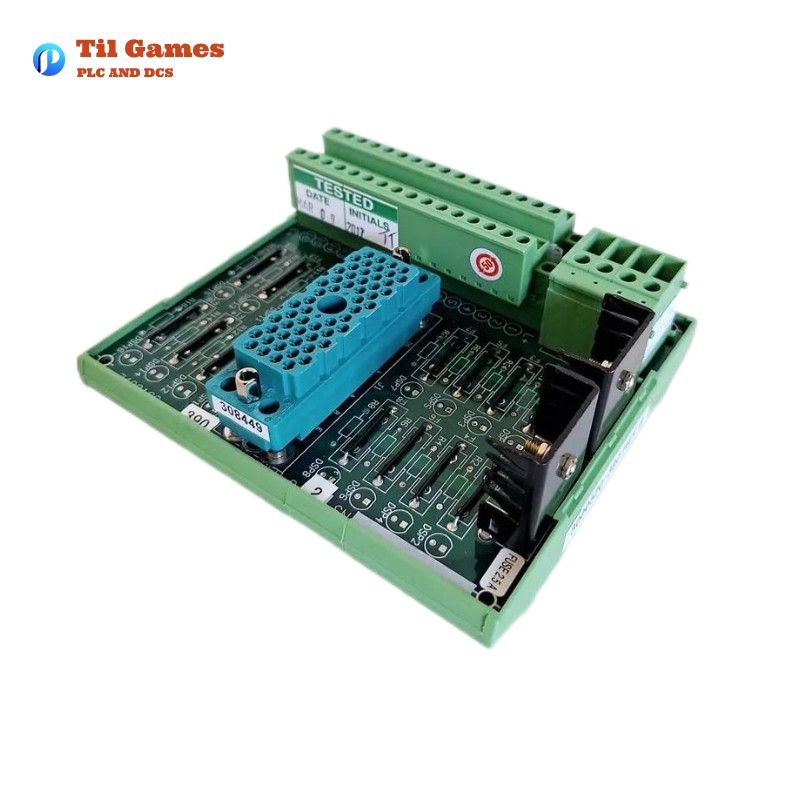

The Triconex 9662-610NJ 7400166-390 Digital Output Termination Panel is a 16-point, commoned digital output termination panel designed for high-reliability industrial applications. It provides an interface between field wiring and Triconex digital output modules, ensuring secure and efficient signal transmission.

This termination panel supports 24 VDC output modules, making it an essential component in safety-critical control systems where high availability and robust operation are required. It is commonly used with Triconex 3624, 3625, 3664, and 3674 digital output modules, ensuring compatibility with a wide range of applications.

Each termination panel features commoned power terminals (PWR+ and PWR–), allowing simplified wiring and reliable connections. The maximum current capacity is 16A, and the panel is optimized for use with self-protected digital output modules.


Technical Specifications

The following table provides detailed technical specifications for the Triconex 9662-610NJ Digital Output Termination Panel:

Feature Description
Model Number 9662-610NJ 7400166-390
Panel Type Commoned Digital Output Termination Panel
Number of Points 16
Operating Voltage 24 VDC
Current Capacity 16A per termination panel
Compatible Modules 3624, 3625, 3664, 3674
Dimensions 114.3 × 127 × 107.95 mm
Weight 0.38 kg
Module Connection Uses backplane cable interface
Mounting DIN rail or panel mount
Indicators Blown-fuse indicators (LED)
Environmental Rating Designed for industrial environments

Key Features

  • 16-Point Commoned Configuration: Ensures streamlined wiring and efficient power distribution.
  • High Compatibility: Works with Triconex 3624, 3625, 3664, and 3674 digital output modules.
  • 24 VDC Operation: Ideal for industrial and process automation applications.
  • LED Indicators: Provides a visual indication for blown fuses.
  • Compact and Robust Design: Engineered for industrial control systems.
  • Easy Installation: Supports DIN rail and panel mounting for flexible deployment.
  • Reliable Connections: Ensures secure and interference-free signal transmission.

Advantages

1. High Reliability

  • Designed for mission-critical control applications, ensuring continuous and fail-safe operation.
  • Supports Triconex TMR (Triple Modular Redundant) system, reducing failure risks.

2. Enhanced Compatibility

  • Seamless integration with Triconex 3624, 3625, 3664, and 3674 digital output modules.
  • Standardized 24 VDC operation for ease of deployment in industrial setups.

3. Simplified Wiring & Installation

  • Commoned power terminals (PWR+ and PWR–) minimize wiring complexity.
  • Compatible with DIN rail and panel mounting for easy installation.

4. Advanced Diagnostics

  • LED indicators for blown fuses facilitate quick troubleshooting.
  • Supports supervised and non-supervised configurations based on module selection.

5. High Current Capacity

  • Supports up to 16A per termination panel, providing efficient power handling for industrial loads.

Applications

The Triconex 9662-610NJ is widely used in industrial control systems, including:

  • Oil & Gas Processing Plants
  • Petrochemical Refineries
  • Power Generation Facilities
  • Chemical and Pharmaceutical Manufacturing
  • Safety Instrumented Systems (SIS)
  • Critical Infrastructure Protection
  • Discrete and Process Automation Industries

This termination panel is essential in environments requiring reliable digital output signal processing, ensuring safe and efficient operation of industrial automation systems.


Latest Reports & Industry Updates

Below are some recent reports highlighting advancements and applications of Triconex Digital Output Termination Panels:

  1. “Enhancing Process Safety with Triconex Digital Output Systems” – Discusses the role of termination panels in increasing operational safety.
  2. “Integrating Triconex Safety Systems with Industry 4.0 Technologies” – Focuses on digital transformation in automation.
  3. “Improving Fault Tolerance in Industrial Control Systems” – Explores Triconex’s latest developments in redundant safety solutions.

Related Triconex Models

The following table lists six related models within the same series or with similar specifications:

Model Description
9661-610 115 VAC, commoned, 16-point digital output termination panel
9661-910 120 VDC, commoned, 16-point digital output termination panel
9662-810 24 VDC, commoned, 16-point digital output termination panel
9663-610 115 VAC, commoned, 16-point digital output termination panel
9664-810 120 VDC, commoned, 16-point digital output termination panel
9667-810 48 VDC, commoned, 16-point digital output termination panel

Popular Triconex Models

Here are six popular Triconex models widely used in industrial automation:

Model Description
3008 Main Processor Module for Triconex TMR Systems
3625 32-Point Digital Output Module, 24 VDC, Commoned
4351B Communication Module for Triconex Systems
3700A High-Density Analog Input Module
4119A Triconex Analog Output Module
4211 High-Speed Counter Module
FAQ

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the Triconex 9662-610NJ?

A1: The Triconex 9662-610NJ is a 16-point commoned digital output termination panel used to interface field wiring with Triconex digital output modules, ensuring safe and reliable signal transmission.

Q2: Which Triconex digital output modules are compatible with this panel?

A2: The panel is compatible with Triconex 3624, 3625, 3664, and 3674 digital output modules, supporting 24 VDC output operations.

Q3: What are the mounting options for this termination panel?

A3: The 9662-610NJ supports DIN rail and panel mounting, allowing flexible installation in various industrial control environments.

Q4: What is the total current capacity of this termination panel?

A4: The maximum current capacity is 16A per termination panel, ensuring efficient handling of industrial load requirements.

Q5: What type of indicators are present on the panel?

A5: The LED indicators serve as blown-fuse indicators, allowing quick identification of faulty fuses for maintenance.

Q6: Can this termination panel be used in safety-critical applications?

A6: Yes, the 9662-610NJ is widely used in Safety Instrumented Systems (SIS) and other industrial automation applications requiring high reliability and fault tolerance.
