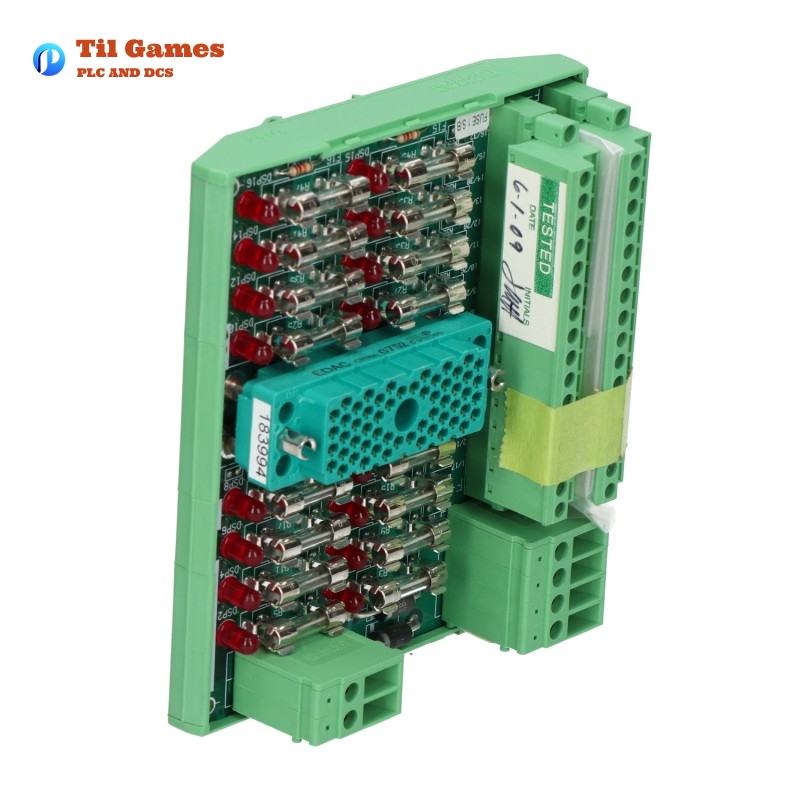

Triconex 9563-8XX Digital Input Termination Panel

Triconex 9563-8XX Digital Input Termination Panel

Manufacturer:Triconex

Product Number:9563-8XX

Product Type:Digital Input Termination Panel

Origin:USA

Dimensions:114.3 ×127 × 107.95 mm

Weight:0.38 kg

Views:18

Payment Methods:T/T, PayPal, Western Union

Condition:New & In Stock

Shipping Port:Xiamen, China

Warranty:1 Year

Lead Time:1-3 Working Days

Certificate:COO

Courier partners:DHL, UPS, TNT, FedEx and EMS.

Business hours:7*24

Send Inquiry
Description
FAQ
Products Description
https://www.tilgames.com/wp-content/uploads/2025/03/9563-8XX-2.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/9563-8XX-3-1.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/9563-8XX-4.jpg
https://www.tilgames.com/wp-content/uploads/2025/03/9563-8XX.jpg
Company Information
E-mail [email protected]
Mobile +8613666033393
Whatsapp +8613666033393
WeChat 13666033393
Add Room 1004, No. 62 Xiangxiu Li, Siming District, Xiamen City, Fujian Province, China

The Triconex 9563-8XX Digital Input Termination Panel is part of the Triconex v9/v10 I/O systems, designed for high reliability and flexibility in industrial environments. It provides essential functionality for connecting field signals to the Tricon system, allowing for seamless integration with digital input modules. This termination panel is highly suitable for applications requiring efficient marshaling of field wiring, ensuring both reliability and ease of maintenance in critical control systems.

Key Features

  • Field Wiring Interface: This termination panel facilitates an interface between field wiring and Triconex digital input modules, providing flexible, secure, and standardized connections.
  • High-Density Configuration: It supports high-density I/O configurations, ideal for installations with space constraints and requirements for a high number of connections.
  • Durable Design: The product is designed to endure harsh industrial environments, conforming to DIN standards for mounting and offering excellent mechanical stability.
  • Protection Mechanisms: The panel can come with optional protection features such as fuses and resistors for safeguarding against overcurrent or short circuits.

Specifications

The Triconex 9563-8XX panel comes in various configurations, such as 24V, 48V, and others depending on user needs. Below are the specifications for this product:

Parameter Value
Input Points 16 digital input points
Voltage Rating 24VDC, 48VDC
Current Rating 100mA maximum per point
Dimensions (LxWxH) 114.3 × 127 × 107.95 mm
Weight 0.38 kg
Mounting Type DIN Rail compatible
Wiring Type Suitable for 24-12 gauge wiring (0.3 mm² – 2.1 mm²)
Environmental Rating IP20 (Indoor use)

Advantages

  1. Flexibility in Field Wiring: The Triconex 9563-8XX allows users to marshal field wiring up to 30 meters (99 feet) from the Tricon system, offering flexibility in system design.
  2. Maintenance Ease: The panel is engineered for easy maintenance and module replacement without disturbing field wiring, helping reduce downtime.
  3. Robust Design: It is built to operate in demanding environments, providing excellent durability and long operational life.

Applications

The Triconex 9563-8XX Digital Input Termination Panel is suitable for a range of industrial automation and control applications, including:

  • Process Control Systems: Used in refineries, chemical plants, and power plants where reliable digital input is crucial.
  • Safety-Critical Environments: Ideal for use in applications demanding high levels of safety, such as nuclear, oil, and gas industries.
  • Factory Automation: The panel’s flexibility makes it perfect for large-scale manufacturing facilities requiring reliable I/O systems.

Related Models from the Triconex Series

Here are six related models within the same Triconex digital input panel family:

Model Number Description Voltage Points Features
9561-810 16-point digital input panel 115V 16 Commoned, 16-point inputs
9562-810 16-point digital input panel 48V 16 Commoned, 16-point inputs
9563-910 16-point digital input, resistor protected 24V 16 Resistor-protected, commoned
9565-810 32-point digital input panel 48V 32 Commoned, higher density inputs
9566-710 32-point digital input panel 24V 32 Commoned, high-density
9750-310 32-point basic digital input panel 24V 32 Basic termination, flexible use

Popular Triconex Models (Other than 9563-8XX)

Here are six popular Triconex models that complement the 9563-8XX:

Model Number Description Voltage Points Special Features
3501E Digital input, 32 points 115V 32 Standard digital input module
3603B Digital output module 120V 16 For controlling high-power devices
3502E Digital input, 32 points 48V 32 Suitable for lower voltage systems
3604E Digital output, 16 points 24V 16 Low power output module
3614E Digital output, 16 points 24V 16 Enhanced for digital control
9750-410 Basic digital input, 32 points 48V 32 Basic interface for field devices
FAQ

Frequently Asked Questions (FAQ)

Q1: What is the primary function of the Triconex 9563-8XX digital input panel?

  • A1: The primary function of the Triconex 9563-8XX panel is to provide a flexible and reliable interface for connecting digital input signals from field devices to the Tricon system.

Q2: How does the panel provide protection against overcurrent?

  • A2: The Triconex 9563-8XX comes with optional fuses and resistors that protect against overcurrent and short circuits, ensuring the safety of field wiring.

Q3: Can the Triconex 9563-8XX be used in hazardous locations?

  • A3: While the Triconex 9563-8XX is not certified as non-incendive, Triconex offers specialized hazardous location termination panels for such environments.

Q4: How do I mount the Triconex 9563-8XX panel?

  • A4: The panel is DIN-rail compatible, allowing for quick and secure mounting within standard DIN-rail enclosures.

Q5: Is the Triconex 9563-8XX suitable for high-density I/O applications?

  • A5: Yes, this model supports high-density configurations, making it ideal for systems with limited space but requiring many input connections.

Q6: What is the maximum wiring distance from the Tricon chassis?

  • A6: The panel allows for field wiring to be marshaled up to 30 meters (99 feet) away from the Tricon system.
